Description

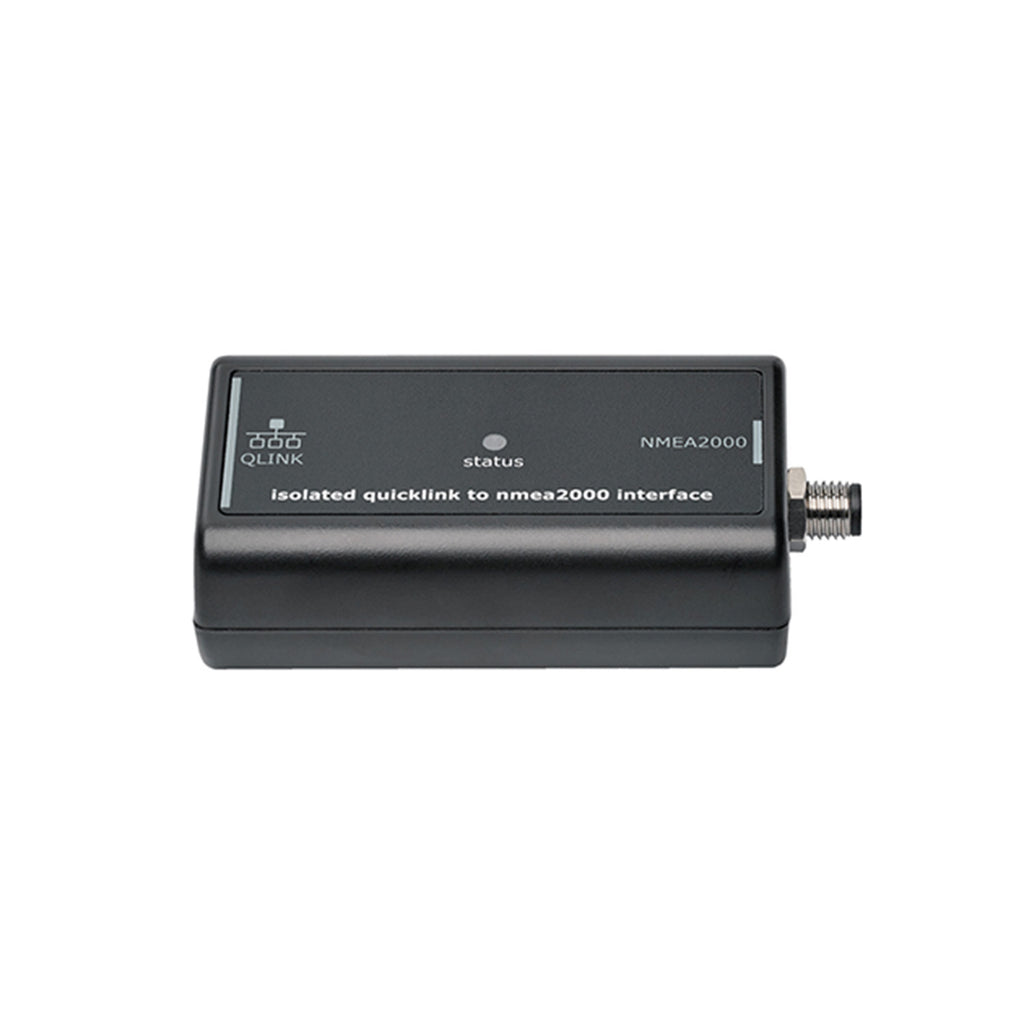

This kit enables you to readout the WBM Modular Smart Shunt battery monitor through an NMEA2000 network and creates the possibility to show extensive battery bank data on any NMEA2000 compatible display.

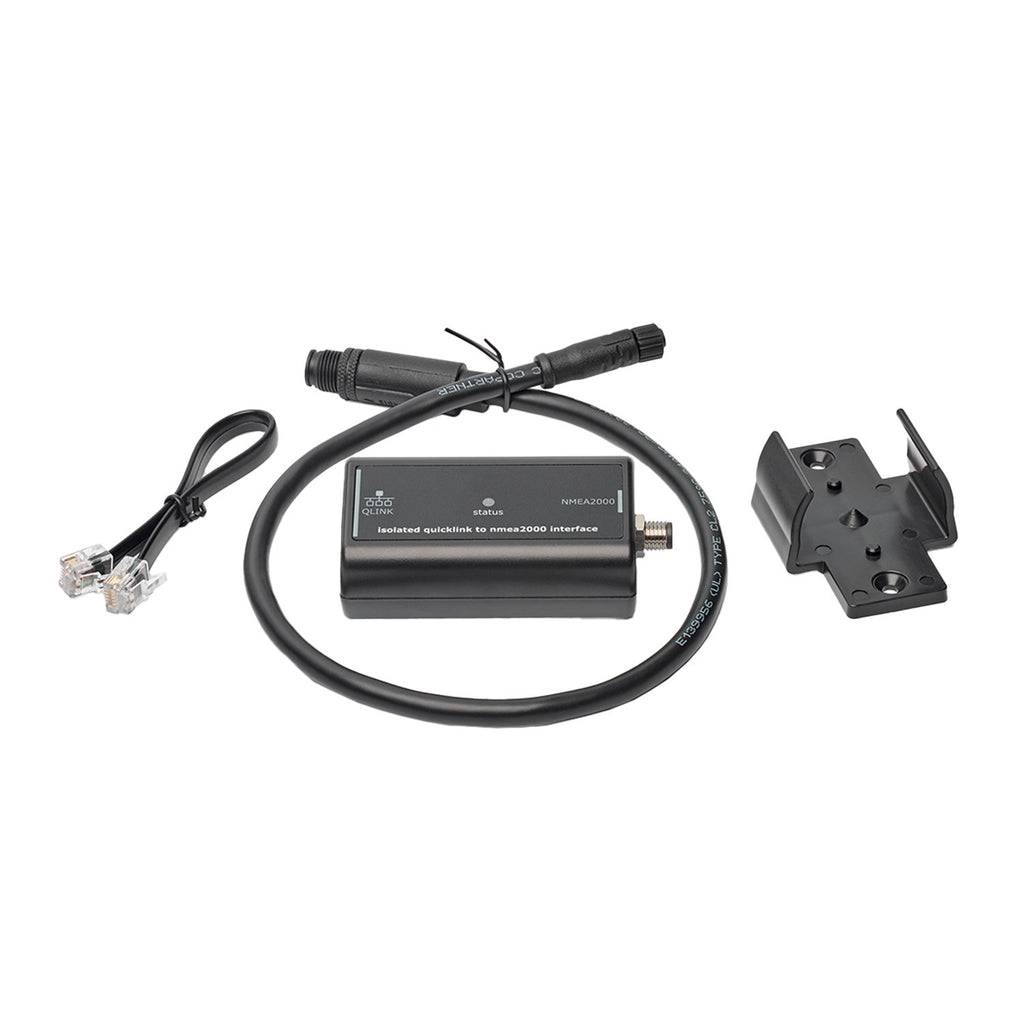

The WBM Link to NMEA2000 communication kit comes with an interface box, a mounting bracket, a WBM Link cable and an NMEA2000 drop cable. Also included are of course the needed instructions to let the WBM Modular Smart Shunt join your NMEA2000 network.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40290316 |
| Input communication bus type | WBM Link |
| Current consumption | 6.5mA (QuickLink) / < One Network Load (NMEA 2000) |
| Isolation value | 1000Vrms for 3 sec. |
| Operating ambient temp. | - 20 ... + 50 °C |
| Dimensions (L x W x H) | 74 x 43 x 25mm |
Documents: Installation manual
