Description

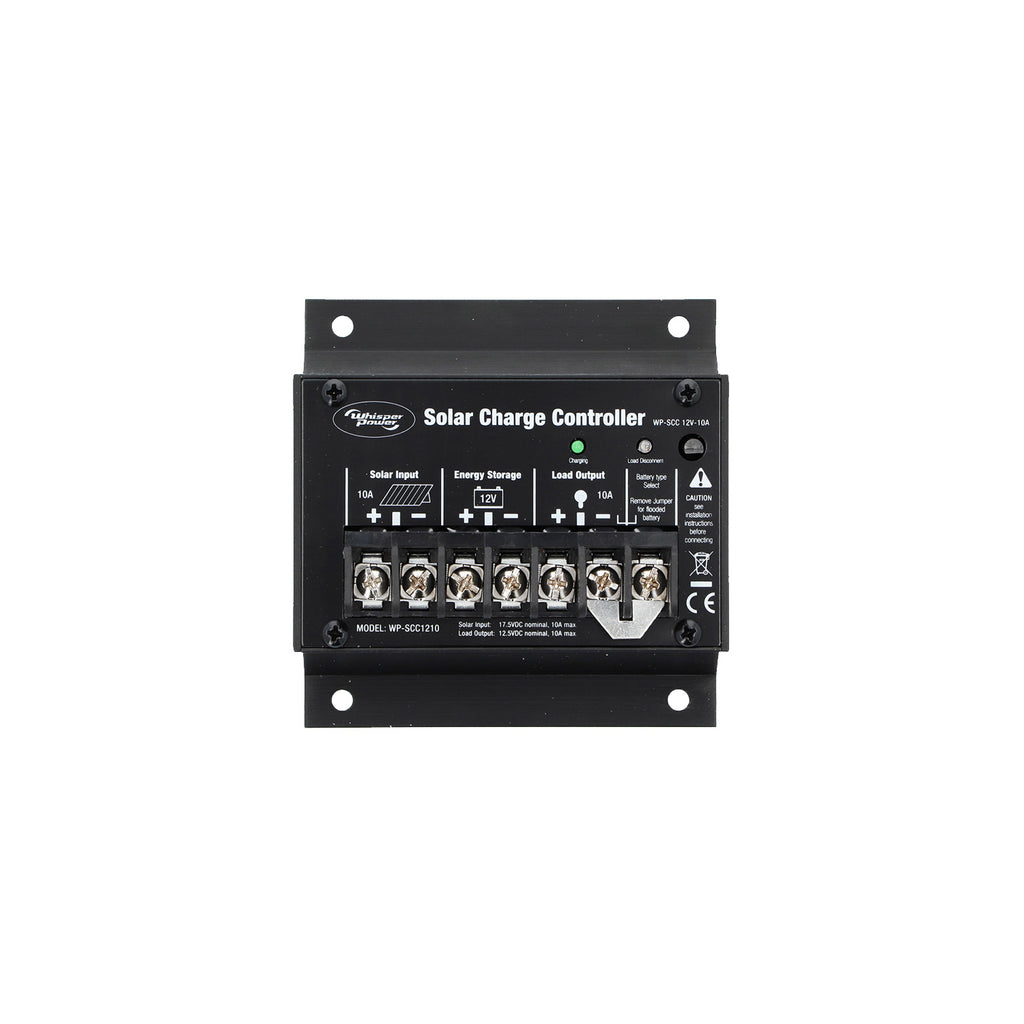

Meet the WhisperPower Solar Charge Controller PWM 12 V – 10 A. With our state of the art, easy to use design, the Solar Charge Controller PWM 12 V – 10 A will offer you a reliable service to convert your PV solar energy to charge you battery in an effective and efficient way. It also protects your battery from overcharge by the PV or over discharge (LD model only) through the DC load connected.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110409 |
| Dimensions & weight | |
| Length x width x height | 100 x 100 x 33 mm ( 3.9" x 3.9" x 1.3" inch) |
| Weight | 0.2 kg / 0.4 lb. |
| Dc input | |
| Max. PV Voltage | 26 V |
| Max. PV Current | 10 A |
| Voltage across PV & Battery | <0.15 V |
| Dc output | |
| Battery Rating | 12 V |
| Battery Type | Sealed / Flooded |
| Max. Charge Current | 10 A |
| Charge Voltage Range | 14.2 - 14.6 V |
| Float Voltage Range | 13.4 - 13.8 V |
| Parasitic Current | <10 mA |
| Dc output (load) | |
| Load Current (Continuous) | 10 A |
| Protections | |
| PV Reverse Polarity | Protected |
| Battery Overcharge | Yes |
| Load Over-Discharge Voltage | <11.5 V |
| Load Reconnected Voltage | 12.6 V |
| Build-in Temperature Sensor | Yes |
| Indicator | |
| Indicators | Charging / Load Disconnect LED Indicator |
| Enclosure | |
| Input/Output Connection | Heavy duty terminals |
