Description

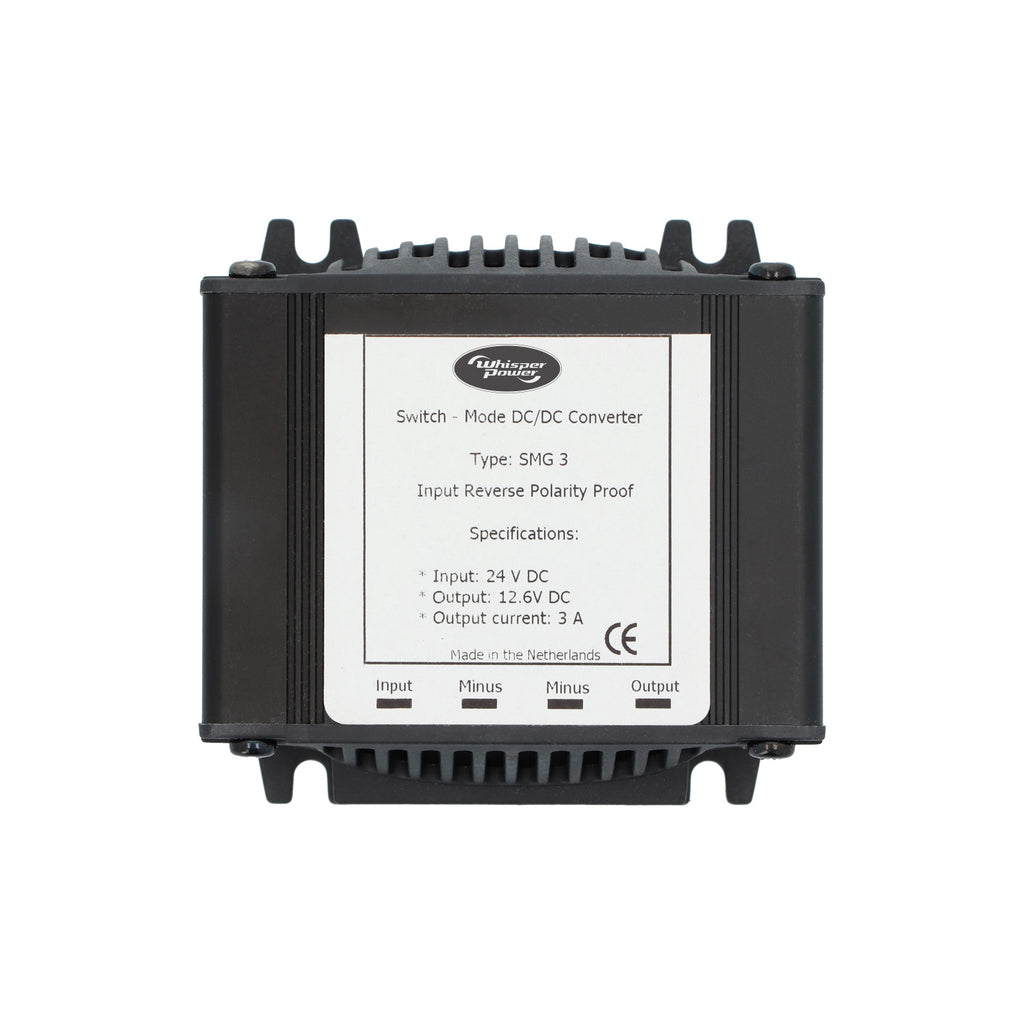

DC-DC step-down converter MG 24-12 VDC 3 A -i. Supplies devices with 12 VDC while your battery produces 24V. This buck converter features an electronic process that ensures high efficiency with minimal heat output. Its effectiveness and reliability make it a superb solution for stable voltage conversion. Galvanically isolated model, extra stability due to separated power circuits.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110030 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 × 85 × 88 (2 x 3.3 x 3.5) |
| Weight, kg (lb.) | 0.25 (0.6) |
| Converter type | voltage step down and stabilization |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 20 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 12.5 VDC |
| Voltage adjustable | Yes |
| Output accuracy | 3% |
| Ripple, peak output voltage | 1% |
| maximum power output | 38 W |
| continuous output power | 36 W |
| Maximum output current | 3 A |
| Continuous output current at 40 °C | up to 3 A |
| General | |
| efficiency | >87% |
| consumption no load | <25 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Yes, 500 Vac |
| Cooling | Mechanical |
| Protections | |
| Current / short circuit | Restricted by current rating |
| Overheating, shut down | Power restricted by temperature |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 58 x 168 |
| International Protection rating | IP20 |
| Housing | frame 7 |
| Housing material | Anodized aluminium, ABS end caps |
| Housing colour | RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
Documents: Datasheet · User manual
