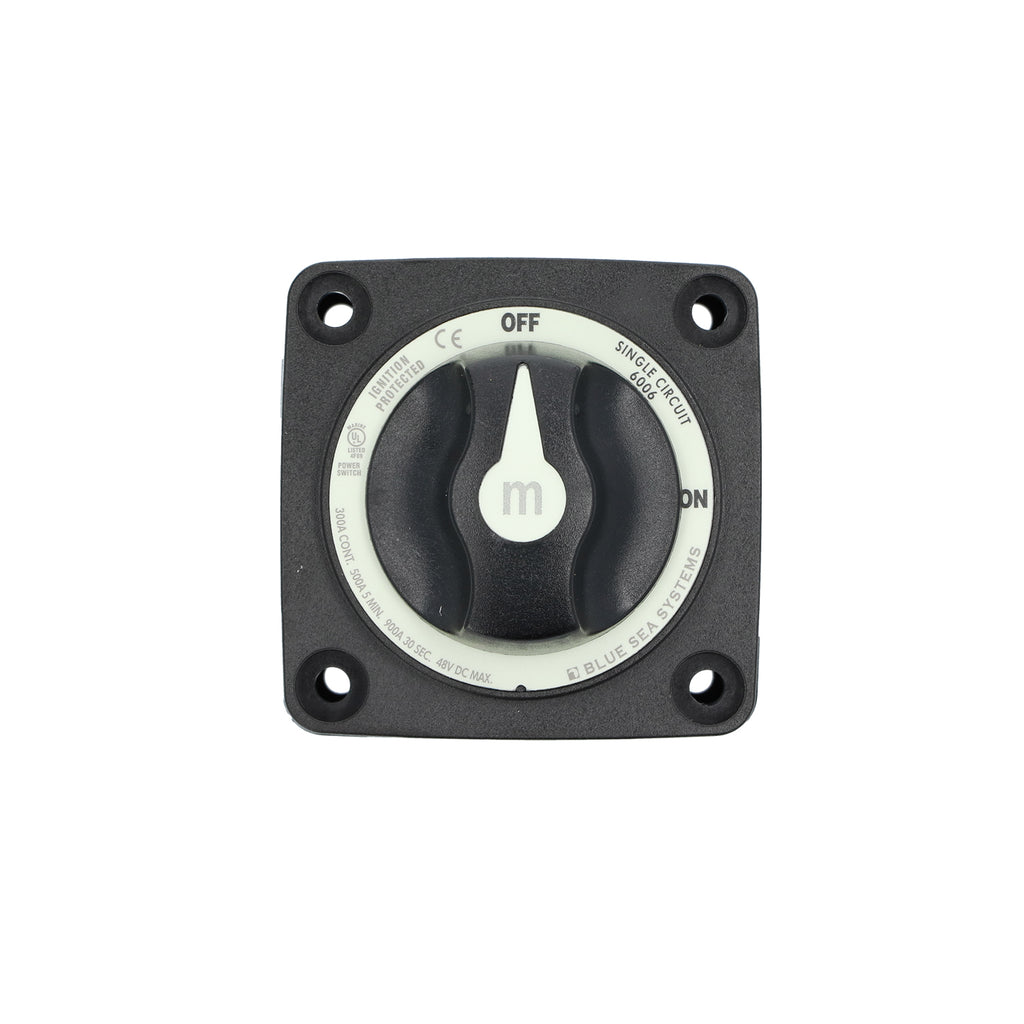

When leaving the marina and heading for the ocean, you depend entirely on your boat’s electrical system. With WhisperPower, you are secured electricity is guided into the appropriate conduits which prevent dangerous situations. The WhisperPower DC distribution program offers high-quality components ensuring a safe and enjoyable trip.
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214701 |
| Dimensions & weight | |
| Enclosure width | 72 mm |
| Enclosure height | 78 mm |
| Weight (Kg) | 0.28 |
| Input | |
| Battery input | 1 |
| Switch Posistions | 2 |
| Battery combine function | - |
| I 10 Cranking rating 10 sec | 1500 A |
| I 60 Cranking rating 1 min | 775 A |
| I 300 Cintermittent rating 5 min | 500 A |
| I C continue rating | 300 A |
| Vmno Voltage maxium Operation | 48VDC |
| General | |
| Ambient operation temperature | -20 C ... +40C |
| Storage temperature | -25 C ... +85C |
| Operating humidity | 95%, non condens |
| Mechanical | |
| Connections terminal stud | M10 (3/8”-.16) |
| Connections stud lenght | 22 mm |
| Maximum terminal Stud Torque | 13.56 NM (120 in-lb) |
| Terminal material | tin-plated copper |
| Drilling mounting centers | 55 mm |
| Rear panel mount diameter | 59 mm dia |
| Mounting srews | 10 mm |
| Ingress Protection Class | IP66 |
| Enclouser Colour | RAL9011 Graphite Black |
| Calbe clearance | 28 mm (1.12”) |
| Ignition Protection | Ul 1500 SAE J1171 |
| Markings | CE, Iso 8846 |
