Description

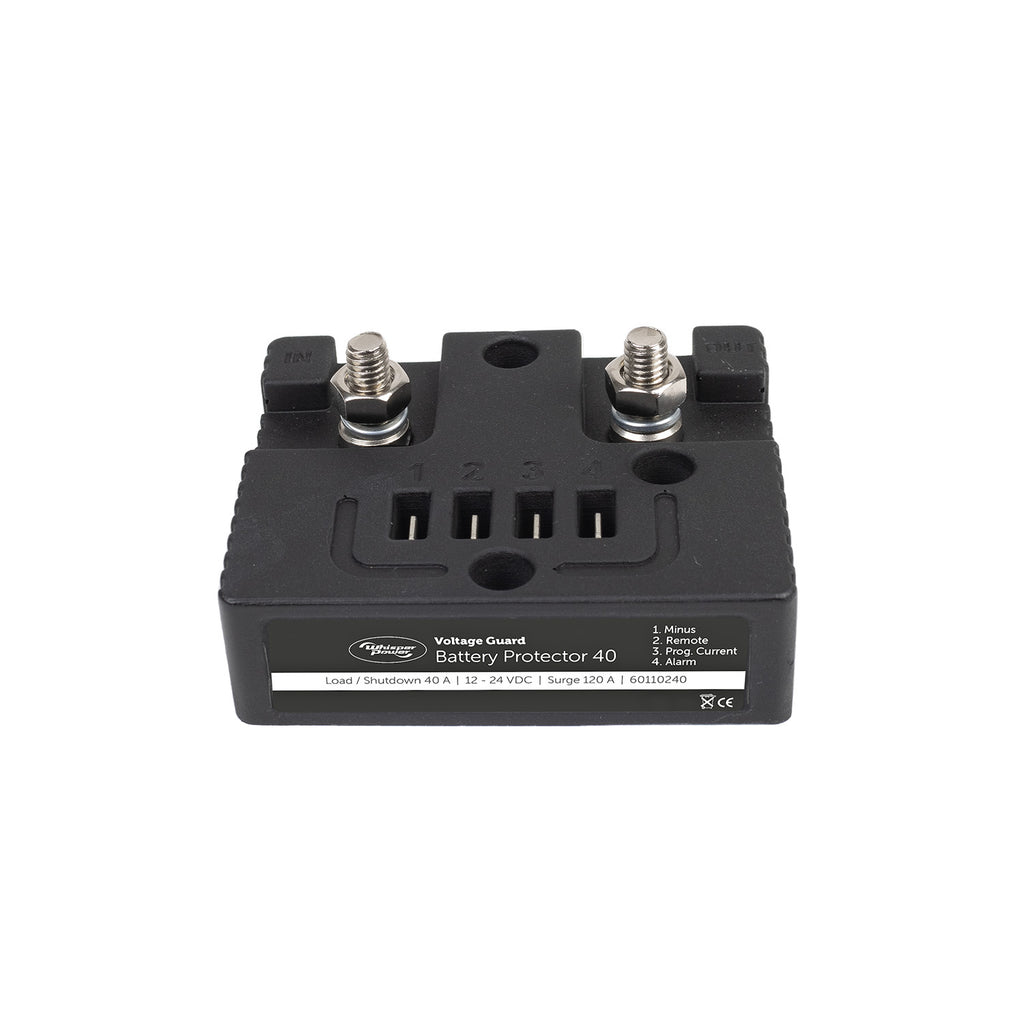

The Voltage Battery Guard WVG 40 is an intelligent, fully waterproof, battery guard with expansion capabilities for an on / off switch, alarm buzzer or relay and our Battery Watch (not supplied).
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110240 |
| Dimensions & weight | |
| Length x width x height | 82 x 41 x 65 mm (3.2" x 1.6" x 2.6" inch) |
| Weight | 0.185 kg (0.4 lb) |
| Cable diameter | 10 mm2 |
| Automatic detection of 12V or 24V system | 8 - 20 V > 12 V mode / 20 - 35 V > 24 V mode |
| Adjustable undervoltage programs | 10 |
| Overvoltage disconnect voltage | 12 V mode > 16 V / 24 V mode > 32 V |
| Maximum load / shutdown | approx 40 A - 45 A |
| Surge | 120 A |
| Voltage drop | 0,1 V @ 40 A |
| Current consumption | Output active: 4 mA / Output active: 2 mA |
| Shutdown at overload / short circuit | After 5 seconds (switch on again after 1 minute) |
| Voltage accuracy | 2% |
| Current accuracy | 20% |
| IP-code | IP66 |
Documents: User manual
