Description

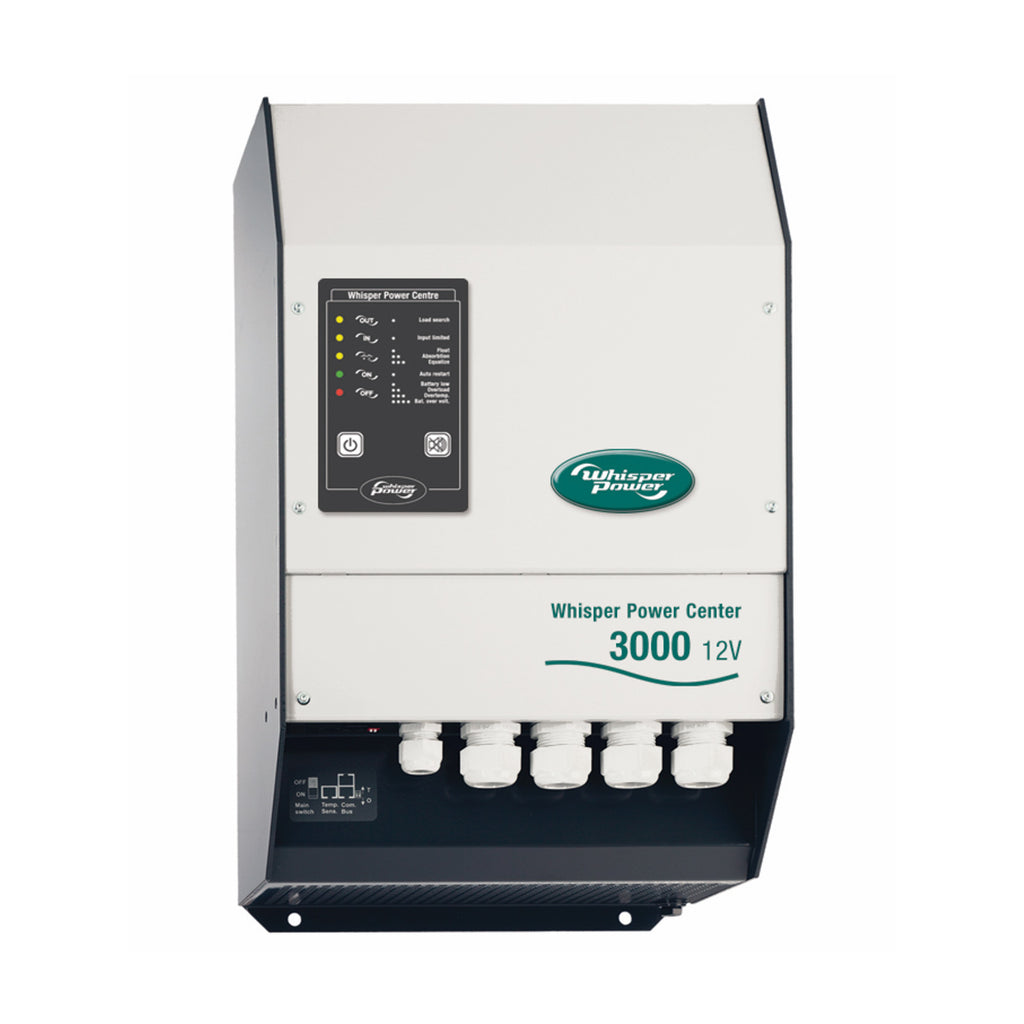

WPC 12 V / 3000 VA – 160 A inverter/charger.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60201315 |
| Nominal battery voltage | 12 VDC |
| Continuous power @ 25°C | 2500 VA |
| Power 30 min. @ 25°C | 3000 VA |
| Power 5 sec. @ 25°C | 7500 VA |
| Maximum load | Up to short-circuit (fully protected) |
| Maximum a-symmetric load | Up to continuous power |
| Load detection (stand-by) | 2 to 25 W (AES) Automatic Enable System |
| Power factor | 0.1 - 1 |
| Efficiency (@ full load) | 93 % |
| Consumption OFF / Stand-by / ON | 1.8 W / 2.1 W / 14 W |
| Output voltage | Pure sine wave 230 VAC (+/- 2%) |
| Output frequency | 50 Hz / 60 Hz (1) +/- 0.05% (crystal controlled) |
| Harmonic distortion (voltage) | <2% THD |
| Overload and short-circuit protection | Automatic disconnection with 3 time restart attempt |
| Overheat protection | Warning before shut-off with automatic restart |
| Battery charger specifications | |
| Charge Characteristic | 6-step Bulk - Absorption - Floating - Equalization - reduced floating - periodic absorption. Number of steps, thresholds and return amps are completely adjustable. |
| Maximum charging current | 160 A |
| Temperature compensation | With Whisper temperature sensor WPC-BTS |
| Power Factor Correction (PFC) | EN 61000-3-2 |
| Input voltage range | 150 to 250 VAC |
| Input frequency range | 45 to 65 Hz |
| Input current max. (transfer relay) / Output current max. | 50 A / 56 A |
| Transfer time | <15 ms |
| Main specifications | |
| Weight | 34 kg |
| Dimension H x W x D [mm] | 500 x 300 x 230 mm |
| Protection degree | IP21 |
| Color | RAL 9003 |
| Conformity | Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2. Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1 |
| Operating temperature range | -20..+40°C, derating to 55°C |
| Relative humidity (operational) | 95% without condensation |
| Ventilation | Forced from 45°C |
| Warranty | 2 years |
| Acoustic level | <40 dB / <45 dB (without / with ventilation) |
| Accessories | |
| 60201032 | WPC-BUS cable 15 meter |
| 60201030 | WPC auto start cable 15 meter |
| 60201021 | WPC 24 VDC - 5 A slave charger (optional second slave charger to be 'build in' WPC) |
| 40280101 | Touchpanel screen full color 7” |
Documents: Quick Starting Guide · User manual
