Description

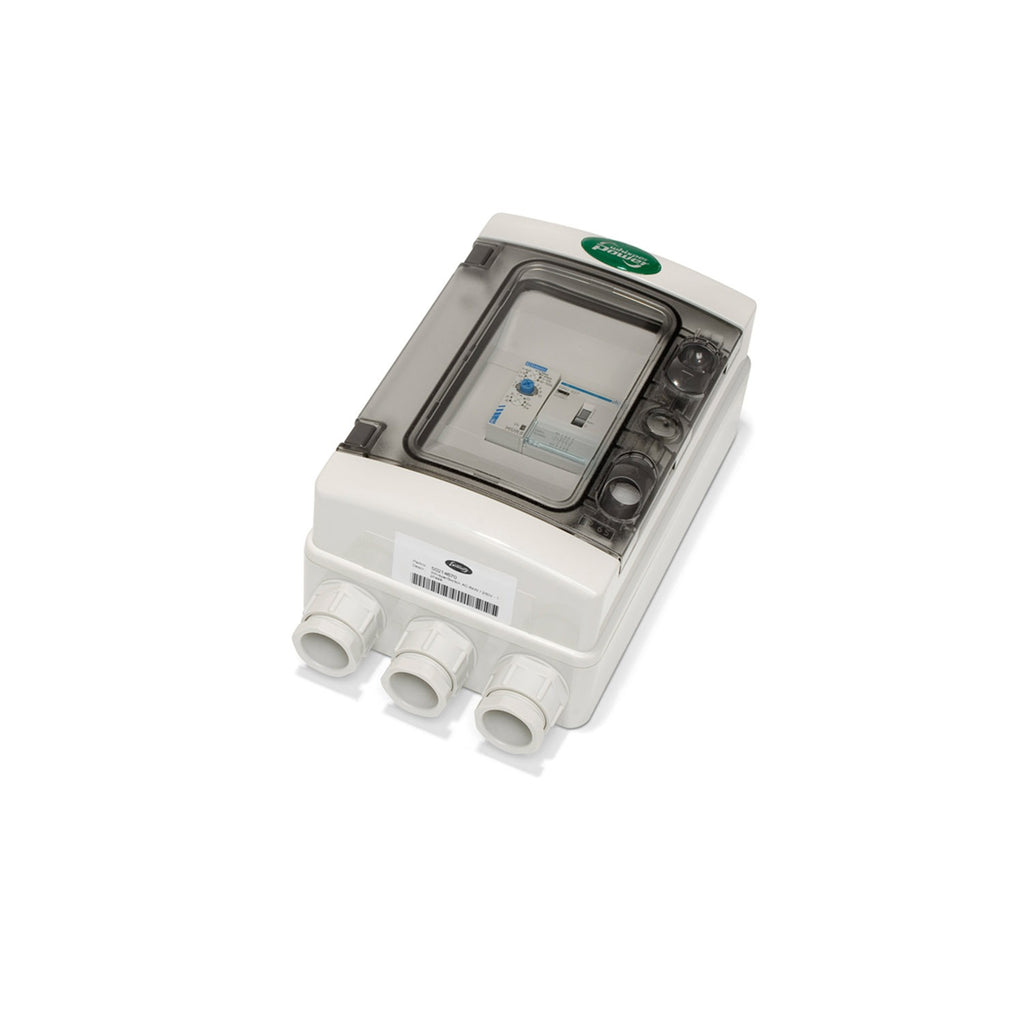

The traditional WhisperSwitch systems regulate the power distribution between energy sources fully automatically.
AC and generator / inverter IN, 230/120 V onboard groups OUT, everything in one cabinet. The connected devices make use of the sources (maximum two) which are available at the time.
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214670 |
| Dimensions & weight | |
| Weight (Kg) | 1 |
| Dimensions (h x w x d ) mm | 240 x 160 x 110 |
| Nominal input voltage | 230 V (50/60 Hz) |
| Input voltage range | 200-250 V |
| No. of AC inputs | 2 x (Shore/ Generator) |
| No. of AC outputs | 1 |
| Nominal output current generator | 26 A |
| Nominal input current shore power | 26 A |
| Nominal output current inverter | 25 A |
| Earth leakage switch | Not integrated |
| Input generator monitoring | Continuous voltage and frequency monitoring |
| Delay generator input | 0-10 sec (adjustable) |
| Nominal output current | 25 A |
| Automatic fuses | Not integrated |
| Energy consumption (AC, all inputs) | 27W |
| Power consumption (inverter capacity only) | < 1W |
| Switching time | Switch on 12-22 ms / switch off 4-19 ms |
| Temperature range (specified) | -5°C to 60°C / 23 to 140°F |
| Temperature range (ambient) | -25°C to 70°C / -13 to 158°F |
| Temperature range (not working) | -60°C to 80°C / -76 to 176°F |
| Relative humidity | max. 95%, non-condensing |
| Frequency monitoring | Yes |
| Cable diameter | 0,5 - 10 mm2 / AWG 20-7 |
| International Protection rating | IP23 |
