Description

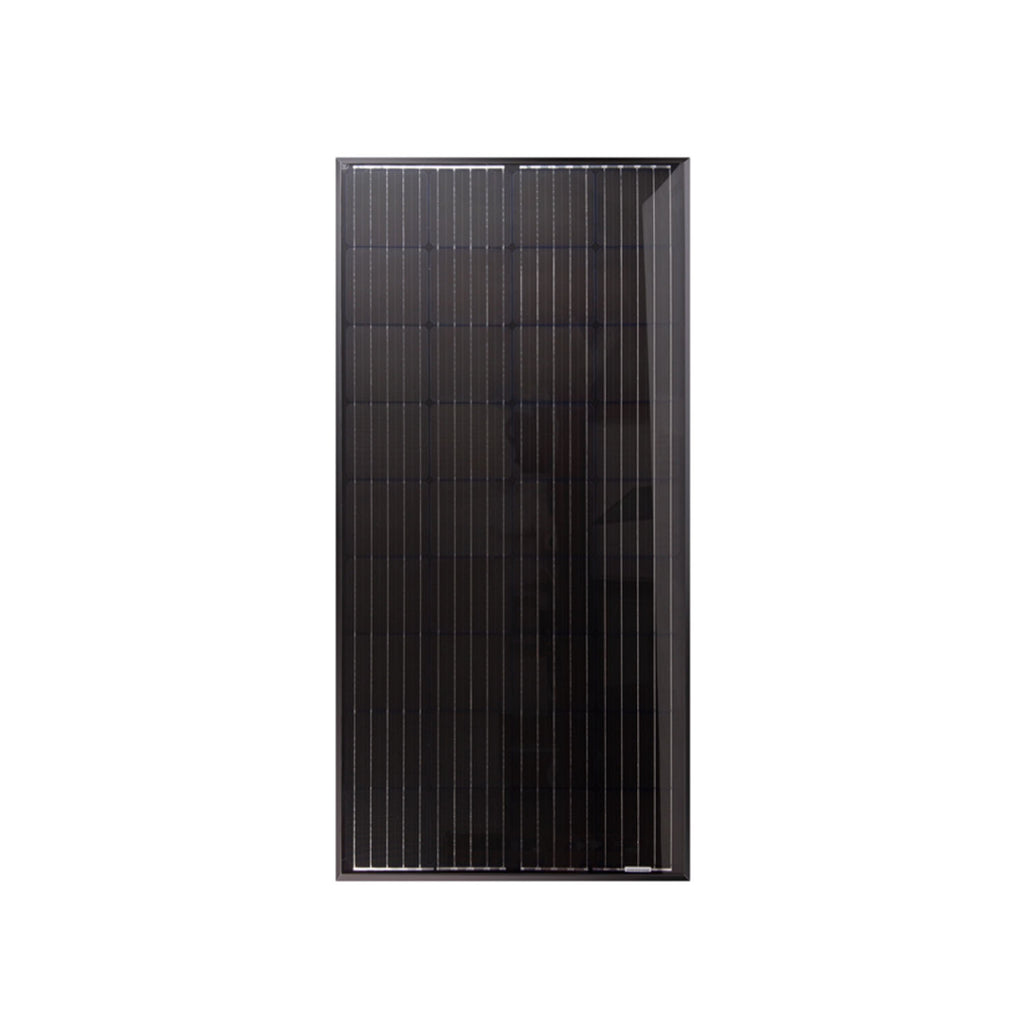

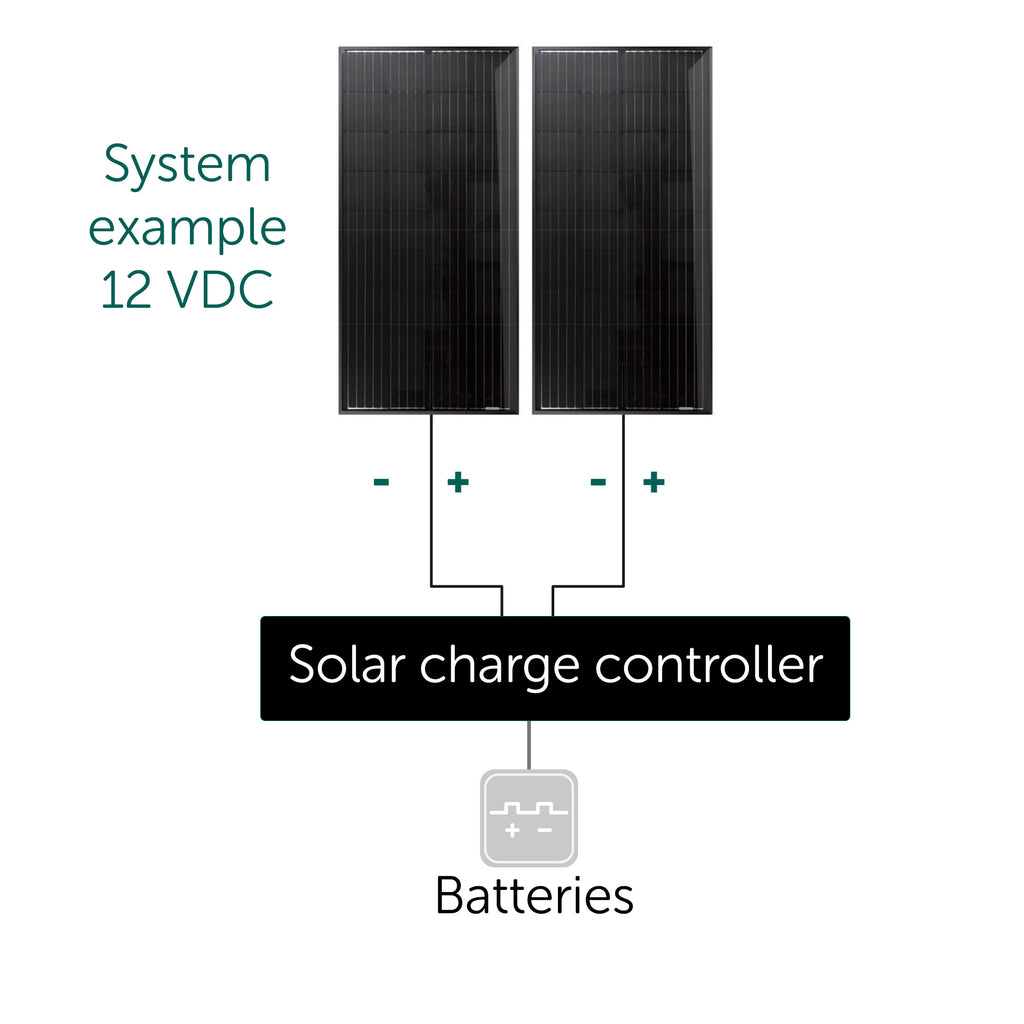

Introducing the WhisperSolar 330 Wp Solar Panel, a premium, all-black monocrystalline module designed for versatility and high performance. With a power output of 330 W and compatibility across 12, 24, and 48 VDC systems, it fits various installation needs. Achieve up to 19.05% efficiency with a power tolerance of -0/+4.9W, ensuring you receive more power than anticipated.
Lightweight yet robust, it can withstand mechanical loads up to 5400 Pa, making it suitable for harsh conditions. Certified by IEC EN and PID-tested, this European-made solar panel combines durability, efficiency, and advanced technology for superior energy generation.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110439 |
| Dimensions & weight | |
| Length x width x height | 1660 x 1000 x 35 mm ( 65.4" x 39.4" x 1.4" inch) |
| Weight | 18,9 kg / 41.7 lb. |
| Electrical parameters at nominal cell temperature (noct) | |
| Peak power | 240,1 |
| Peak power tolerance | -0/+4,9 |
| Short circuit current | 8,27 |
| Open circuit voltage | 37,2 |
| Rated current | 7,80 |
| Rated voltage | 30,8 |
| Mechanical | |
| Solar cells | 60 cells, monocrystalline Si, 157 x 157 xmm +/- 2mm |
| Cells encapsulation | Ethylene vinyl acetate (EVA) |
| Front | Tempered solar glass, 3,2 mm |
| Back | Composite polyester Film |
| Frame | Black anodized aluminium frame with twin-wall profile and drainage holes |
| Junction box | IP67 with 3 Bypass diodes |
| Cable and connectors | Solar cable 4 mm2, length 1100 mm |
| Operating conditions | |
| Temperature range [°C] | -40 to +85 |
| Maximum system voltage | 1000 |
| Max. series fuse rating | 15 A |
| Limiting reverse current | 15 A |
| Maximum surface load | 5400 Pa (Snow load) |
| Resistance against hail | Max. diameter of 25 mm with impact speed of 23 m/s |
| Thermal characteristics | |
| Temperature coefficient of P [%/K] | -0,42 |
| Temperature coefficient of I [%/K] | 0,05 |
| Temperature coefficient of V [%/K] | -0,33 |
Documents: Datasheet · Brochure
Need help choosing the right solution or with installation? Write to us – we are happy to help.
