Description

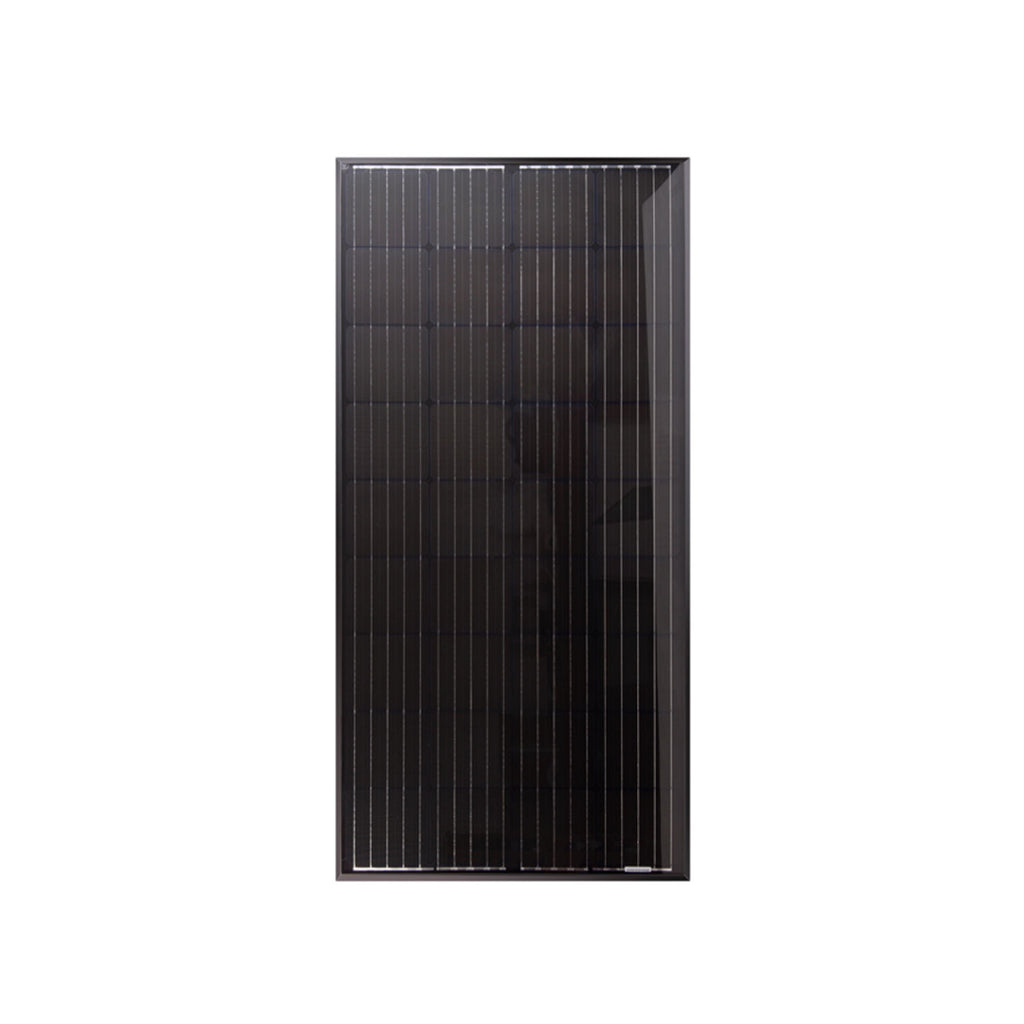

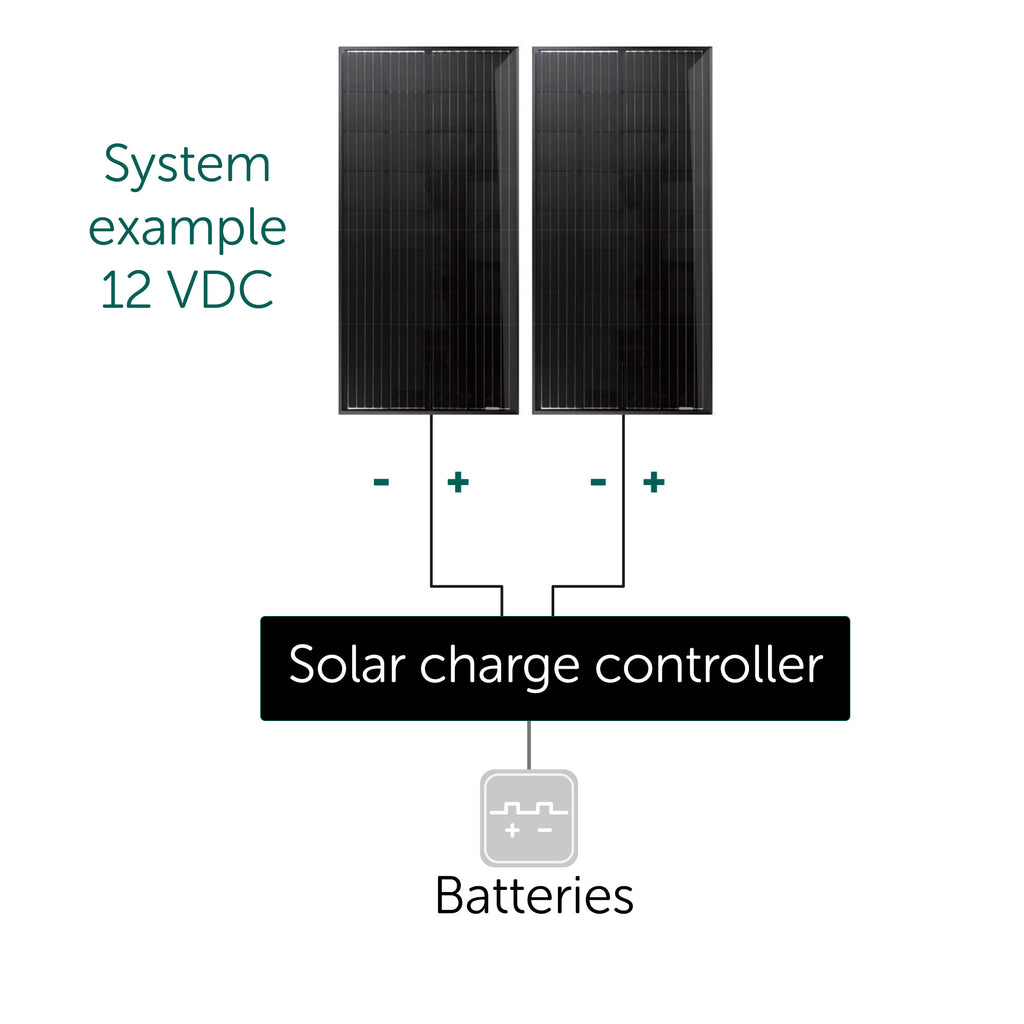

Introducing the WhisperSolar 190 Wp, an all-black, premium quality monocrystalline solar panel designed for versatility and high performance. With a power output of 190 Wp and adaptable for 12, 24, and 48 VDC systems, it offers an impressive module efficiency of up to 18.96%. The lightweight design can handle mechanical loads up to 5400 Pa and boasts a positive power tolerance from -0 to +4.9W. IEC EN certified and PID test approved, this durable panel is made in Europe, ensuring top-tier quality and reliability for both residential and commercial use.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110402 |
| Dimensions & weight | |
| Length x width x height | 1482 x 676 x 35 mm (58.4" x 26.6" x 1.4" inch) |
| Weight | 14 kg / 30.9 lb |
| Main specifications | |
| Peak power PMPP | 190 W |
| Short circuit current ISC | 9,94 |
| Open circuit voltage VOC | 24,3 |
| Rated current IMPP | 9,47 |
| Rated voltage VMPP | 20,1 |
| Current and voltage tolerance [%] | ±3 |
| Module efficiency [%] | 18,96 |
| Electrical parameters at nominal cell temperature (noct) | |
| Peak power P | 138,46 |
| Peak power tolerance | -0 / +4,9 |
| Short circuit current | 7,98 |
| Open circuit voltage | 22,35 |
| Rated current | 7,58 |
| Rated voltage | 18,28 |
| Mechanical | |
| Solar cells | 36 cells, monocrystalline Si, 156 x 156 mm +/- 1 mm |
| Cells encapsulation | Ethylene vinyl acetate (EVA) |
| Front | Solar glass, 3,2 mm |
| Back | Composite polyester Film black |
| Frame | Black anodized aluminium frame with twin-wall profile and drainage holes |
| Junction box | IP67 with 3 Bypass diodes |
| Cable and connectors | Solar cable 4 mm2, length 1000 mm, PV4 connectors |
| Operating conditions | |
| Temperature range [°C] | -40 to +85 |
| Maximum system voltage | 1000 |
| Max. series fuse rating | 15 A |
| Limiting reverse current | 15 A |
| Maximum surface load | 5400 Pa (Snow load) |
| Resistance against hail | Max. diameter of 25 mm with impact speed of 23 m/s |
| Thermal characteristics | |
| Temperature coefficient of P [%/K] | -0,42 |
| Temperature coefficient of I [%/K] | 0,05 |
| Temperature coefficient of V [%/K] | -0,33 |
