Description

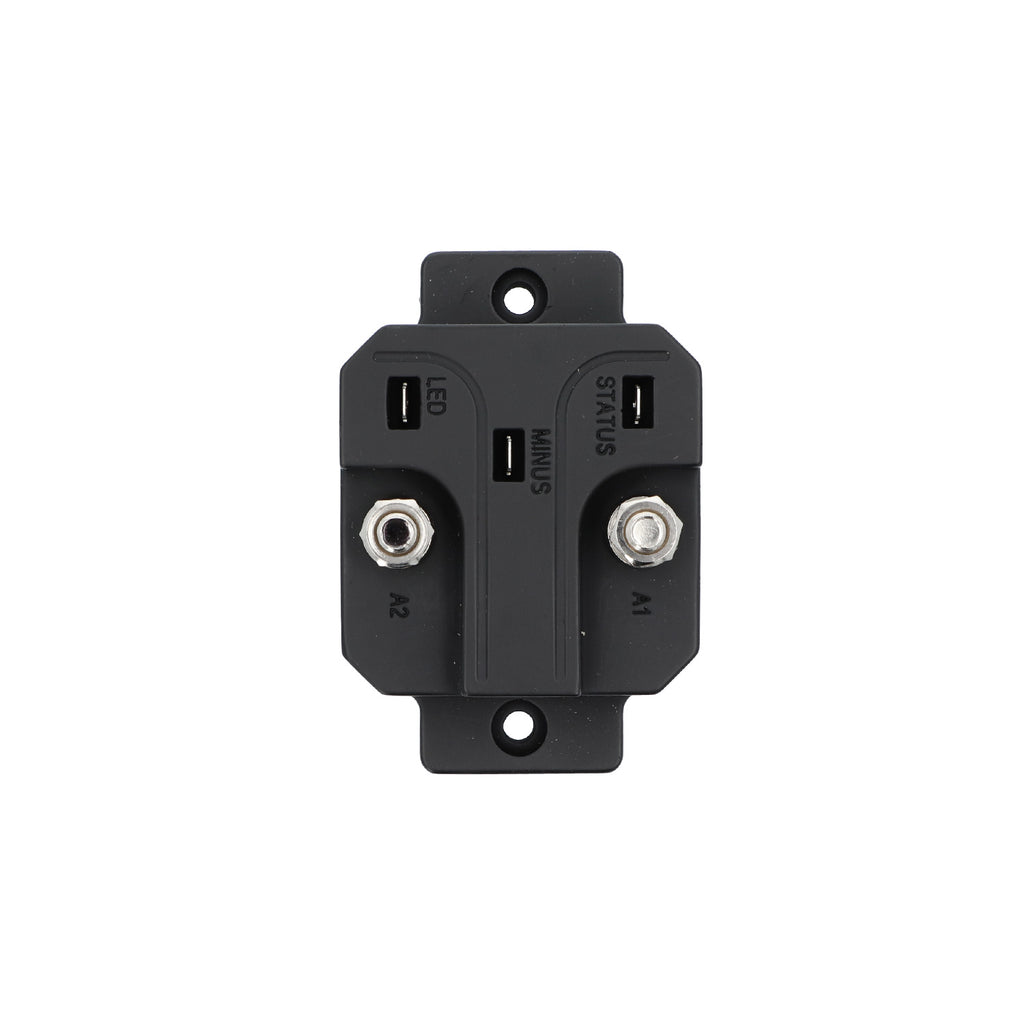

WBL 160 (WhisperPower Battery Links) are smart switch regulators that automatically connect two battery banks if the charge voltage rises above a certain value for at least five seconds. This means that the battery banks can be charged from the same source. To protect the battery banks they are separated from each other as soon as the voltage drops.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110160 |
| Dimensions & weight | |
| Length x width x height | 58 x 72 x 108 mm (2.3" x 2.8" x 4.3" inch) |
| Weight | 0.470 Kg (1 lb.) |
| Input | |
| Smart battery switch | 4c 6 |
| Input range no defects | 7 .. 32 V |
| Output | |
| Nominal output voltage | Equal to input voltage |
| Surge outgoing | 480 A |
| Maximum charge current 3s | 240 A |
| Continuous charging current | 160 A |
| Continuous charging current at 40 ° C | 160 A |
| General | |
| Consumption in Standby | ±2mA |
| Consumption whilst charging 12 / 24 V | 340/170 mA |
| Consumption whilst connecting 12 / 24 V | 340/170 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25°C .. +85°C |
| International Protection rating | IP66 |
| Voltage accuracy | 2% |
| Switch-on voltage 12 / 24 V | 13.2/26.4 V |
| Disconnection voltage 12 / 24 V | 12.8/25.4 V |
| Accelerated disconnection voltage 12 / 24 V | 11.8/23.6 V |
| Connection delay | 5s |
| Disconnection delay | 60s |
| Accelerated disconnection | 4s |
| Protections | |
| Polarity | Yes |
| Features | |
| Controlled microprocessor | Yes |
| Voltage too low | Yes |
| Voltage too high | Yes |
| Start assist | Yes |
| LED display | Yes |
| Output status | no |
| Input status | Yes |
| Remote shutdown | no |
