Description

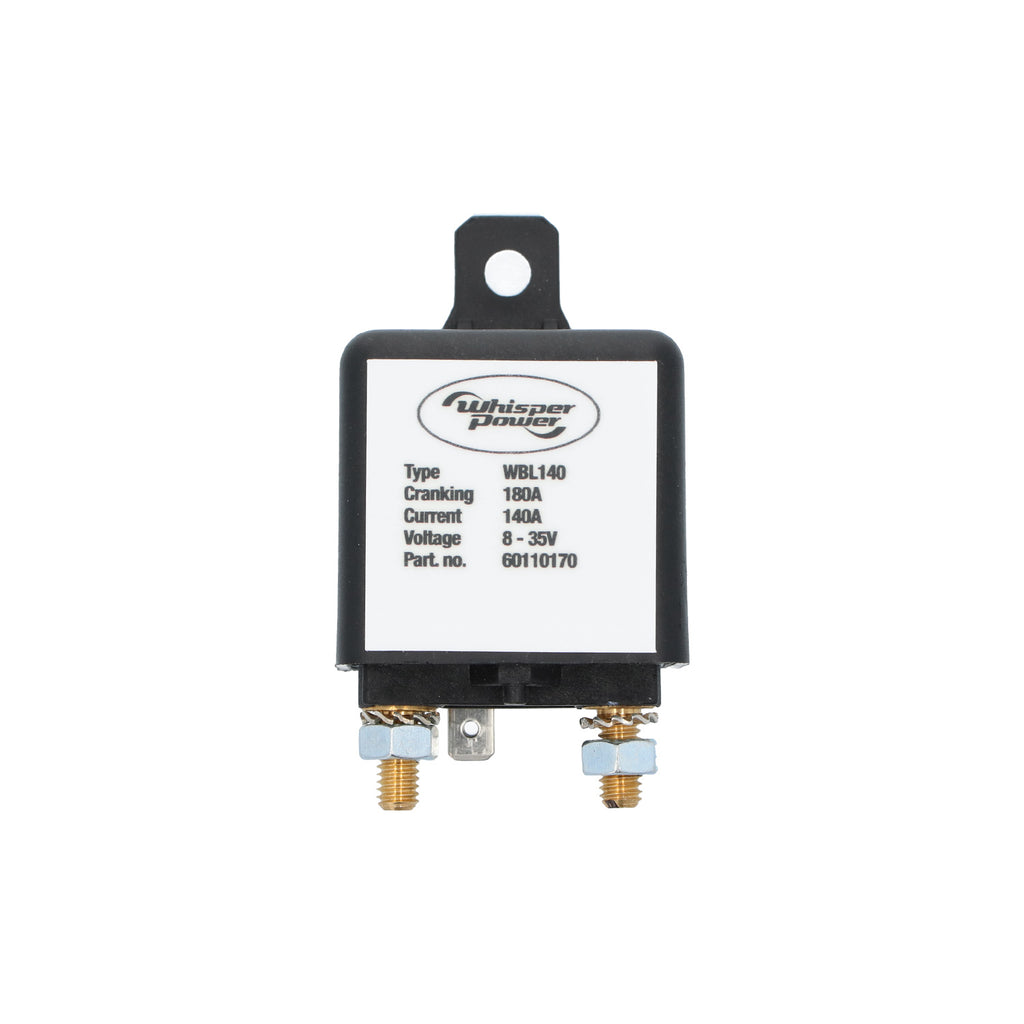

WBL 140 (WhisperPower Battery Links) are smart switch regulators that automatically connect two battery banks if the charge voltage rises above a certain value for at least five seconds. This means that the battery banks can be charged from the same source. To protect the battery banks they are separated from each other as soon as the voltage drops.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110170 |
| Dimensions & weight | |
| Length x width x height | 46 × 46 x 80 mm (1.8" x 1.8" x 3.2" inch) |
| Weight | 125 grams (0.3 lb.) |
| Continuous capacity | 140 A |
| Peak capacity /inrush current 10s | 180 A |
| Input voltage | 8 .. 35 VDC |
| Operating temperature | -40 .. 65°C |
| Maximum voltage drop | 0.5 VDC (Approx. 10s delay during disconnection) |
| Maximum allowable voltage difference | 8.0 VDC |
| Automatic operation | |
| Switch-on voltage (minimum) | >13 V at 12 V / >26 V for 24 V installations |
| Connection delay | 5 sec. |
| Switch-on voltage (maximum) | 15.0 V at 12 V / 30.0 V for 24 V installations |
| Disconnection voltage | 12.75 V at 12 V / 25.5 V for 24 V installations |
| Dc-consumption | |
| OFF-Mode (relay not powered) | 1.0 mA at 12 V / 1.1 mA at 24 V |
| ON-Mode (inrush current) | 0.5 A at 12 V / 0.4 A at 24 V |
| ON-Mode (relay powered) | 50 mA at 12 V / 40 mA at 24 V |
| Led status | |
| On | N/A |
| Flashing slowly (0.5Hz) | N/A |
| Flashing fast (2.5Hz) | N/A |
| Conformity | |
| CE | Yes |
