Description

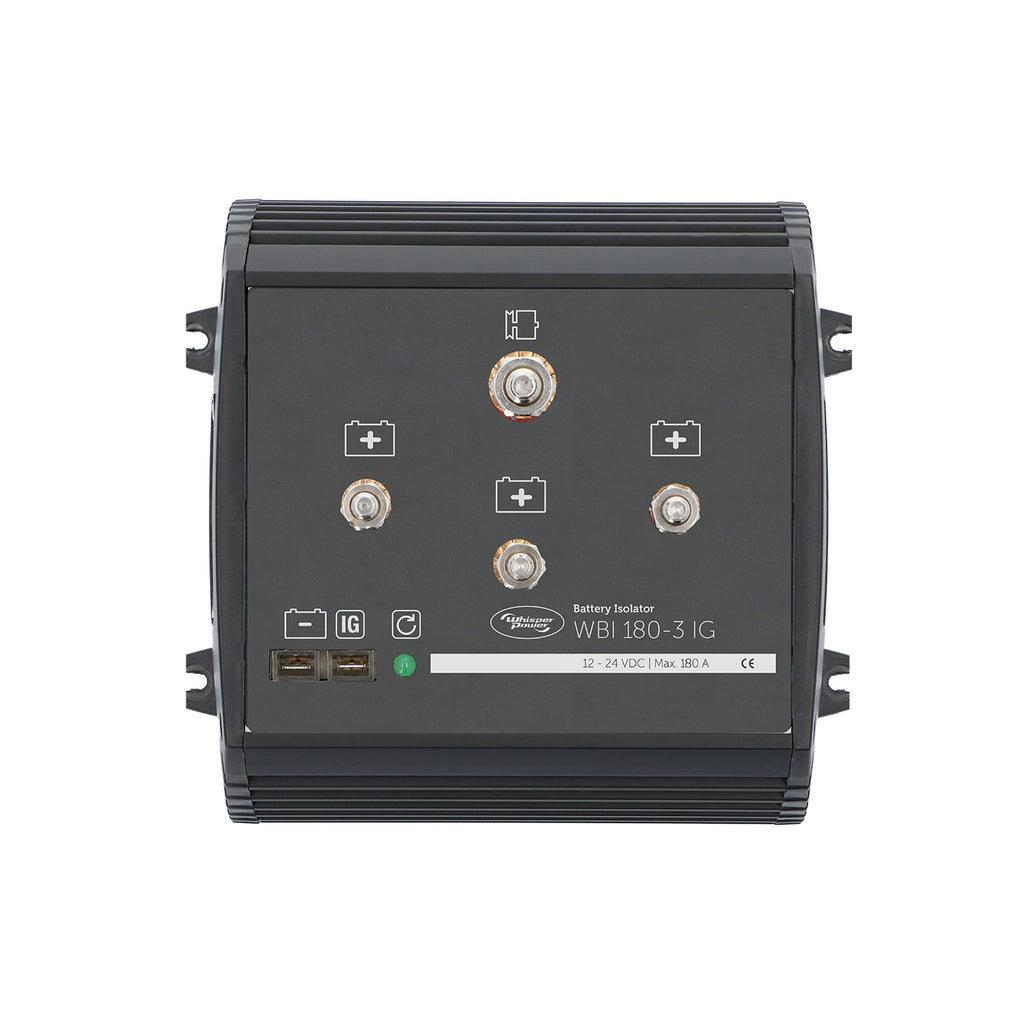

Looking for a way to charge your multiple battery banks independently? Without the heat generation of conventional battery isolators. Looking for a robust solution without changing your charging system? Find the best-in-class electronic battery isolator: WBI 180 A | 3 Outputs | IG.
WBI 180 A | 3 Outputs | IG series low voltage drop battery isolators have a negligible voltage drop and are therefore the ultimate solution for charging multiple battery banks with charge equipment whose charge voltage cannot be adjusted. Another advantage is that due to the low voltage drop the WBI does not waste charging energy. This results in very high efficiency.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60115013 |
| Dimensions & weight | |
| Length x width x height | 158 x 85 x 146 mm (6.2" x 3.3" x 5.7" inch) |
| Weight | 0.81 kg (1.8 lb.) |
| Number of outputs | 3 (M6) |
| Rated current | 180 A |
| Peak current | 200 A |
| Nominal system voltage | 12 or 24 VDC |
| Input voltage range | 8 - 30 VDC |
| Voltage drop | 0.0 V @ 10A / 0.1 V @ 20 A |
| Insulation to ground | > 500 V @ 60 Hz |
| Operating temperature | - 40 .. + 85 C |
| Conformity | EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety) |
| Warranty | 5 years |
Documents: Datasheet · Operation Manual
Need help choosing the right solution or with installation? Write to us – we are happy to help.
