Description

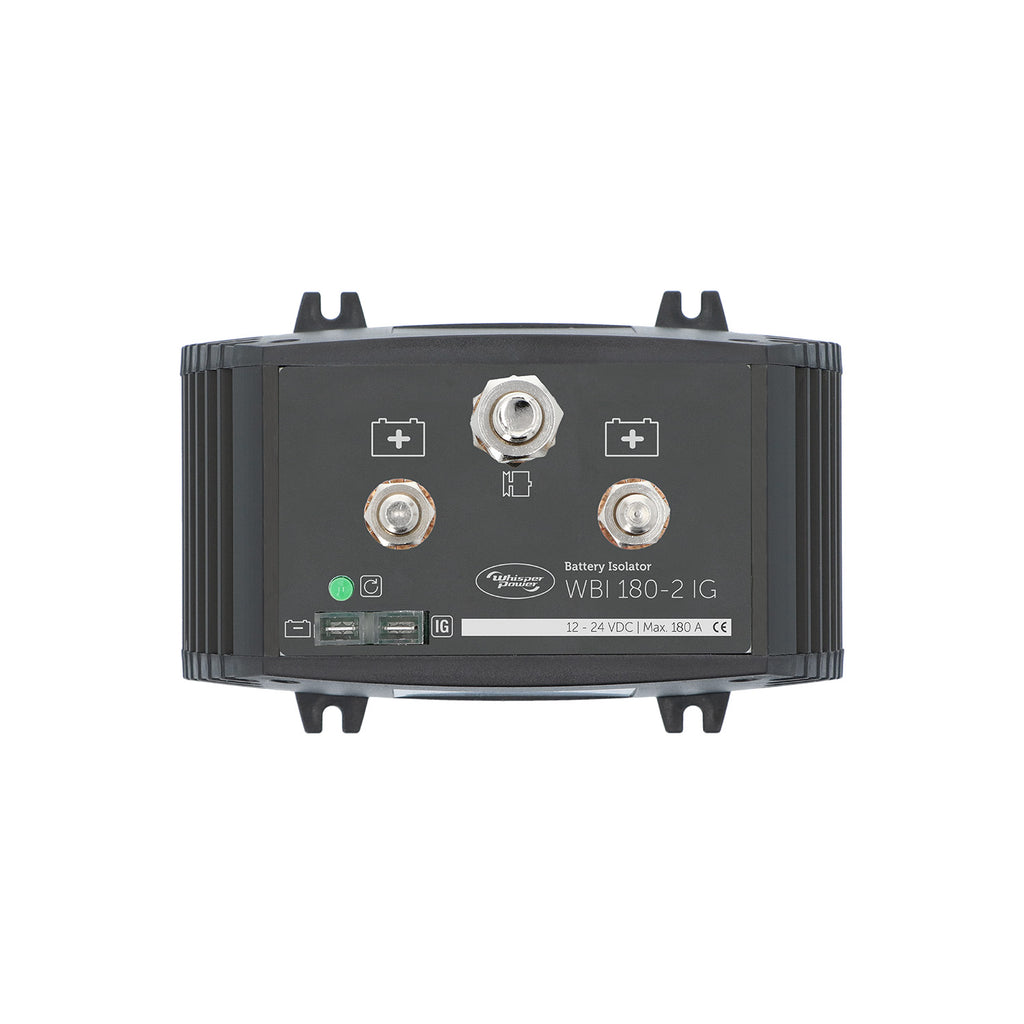

Looking for a way to charge your multiple battery banks independently? Without the heat generation of conventional battery isolators. Looking for a robust solution without changing you charging system? Meet the best-in-class electronic battery isolator: WBI 180 A | 2 Outputs | IG.
The WBI 180 A | 2 Outputs | IG low voltage drop battery isolator has a negligible voltage drop and is therefore the ultimate solution for charging multiple battery banks with charge equipment whose charge voltage cannot be adjusted. Another advantage is that due to the low voltage drop the WBI 180 A | 2 Outputs | IG does not waste charging energy. This results in a very high efficiency.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60115012 |
| Dimensions & weight | |
| Length x width x height | 146 x 85 x 97 mm (5.7" x 3.3" x 3.8" inch) |
| Weight | 0.685 kg (1.5 lb.) |
| Number of outputs | 2 (M6) |
| Rated current | 180 A |
| Peak current | 200 A |
| Nominal system voltage | 12 or 24 VDC |
| Input voltage range | 8 - 30 VDC |
| Voltage drop | 0.0 V @ 10 A / 0.1 V @ 20 A |
| Insulation to ground | > 500 V @ 60 Hz |
| Operating temperature | - 40 .. + 85 C |
| Conformity | EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety) |
| Warranty | 5 years |
Documents: Datasheet · Operation Manual
Need help choosing the right solution or with installation? Write to us – we are happy to help.
