Description

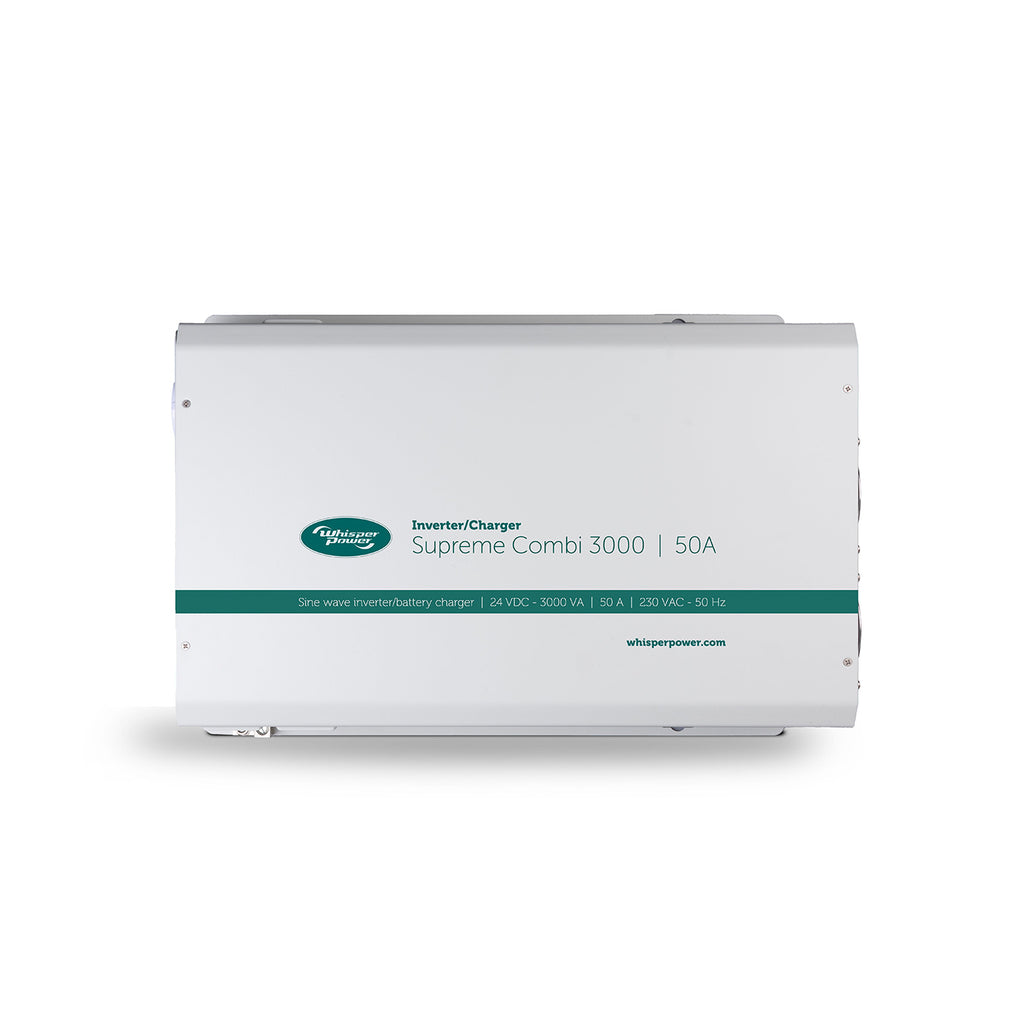

Due to its efficient and compact design, the Supreme Combi 24 V / 3000 W – 50 A inverter/charger is suitable for installation in tight spaces. This device provides all the required comfort expected on yachts, motorhomes or cabins. All AC devices can be connected and work without issue such as: a coffee machine, kettle, kitchen appliances, TV, computer etc. The multi-stage inverter/charger can handle any AC generator as well as the land power connection.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61124001 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 500 x 307 x 106 mm ( 19.7" x 12.1" x 4.2" inch ) |
| Weight, kg (lb.) | 22.9 lbs. / 10.4 kg |
| Inverter | |
| AC Output power (continuous) | 3000 W |
| AC Output power (peak 1 second) | 6000 W |
| AC Output Voltage/Frequency | 230 VAC / 50 Hz |
| AC Output Current | 13 A |
| AC Output Current (peak) | 26 A max (with max power limitation) |
| AC Output Waveform | True Sinewave (<5% THD) |
| Peak Efficiency | 90 % |
| Input Voltage (nominal) | 25.0 VDC |
| Input Voltage Operation Range | 21 - 33 VDC |
| Input Standy Current | < 1.8 A |
| Input Standy Current (power save) | < 0.3 A |
| Battery charger | |
| Charger Voltage Range | 27.6 - 29.6 V (selectable) |
| Float Voltage Range | 26.0 - 28.8 V (selectable) |
| Charger Current | 10 - 50 A |
| Charger Battery Type | Gel, Flooded, AGM, Lithium, Programmable, Power supply |
| Charging Stages | Check, Bulk, Absorption, Float, Recharge |
| Recharge Voltage Range | 25.6 - 28.0 V (selectable) |
| Recharge Timer | 7-days (automatic) |
| Power Sharing | Reduce charger current when heavy AC Load is connected |
| Ac transfer switch | |
| AC Input Voltage / Frequency | 230 VAC (Accept MSW AC input) |
| AC Input Voltage Acceptance Range | 192 - 265 VAC |
| Transfer Time | < 30 ms |
| Transfer Relay Rating | 16 A |
| AC Input Port | Hardwire 16 A Heavy Duty Connector |
| AC Output Port | Hardwire 16 A Heavy Duty Connector |
| AC Input Socket | EU, UK, AU / NZ |
| Protections | |
| Battery Input Undervoltage Shutdown | 21.0 - 24.0 VDC (with dynamic control) |
| Battery Input Undervoltage Warming | 22.0 - 25.0 VDC |
| Battery Input Undervoltage Recovery | 23.0 - 26.0 VDC |
| Battery Input Overvoltage Shutdown | 33.0 VDC |
| Inverter Overload Warming / Shutdown | 2800 W / 3300 W |
| Unit Over-temp Warming / Shutdown | Yes |
| Display | |
| Power On / Off Switch | Yes (push button) |
| Indicator | 3 LEDs (Power, AC Output, Unit Status) |
| Remote Display Port | For remote display panel use |
| Battery Temperature Sensor port | For use with battery temperature sensor (BTS) |
| Ignition Start Port | For use with vehicle "ACC" signal |

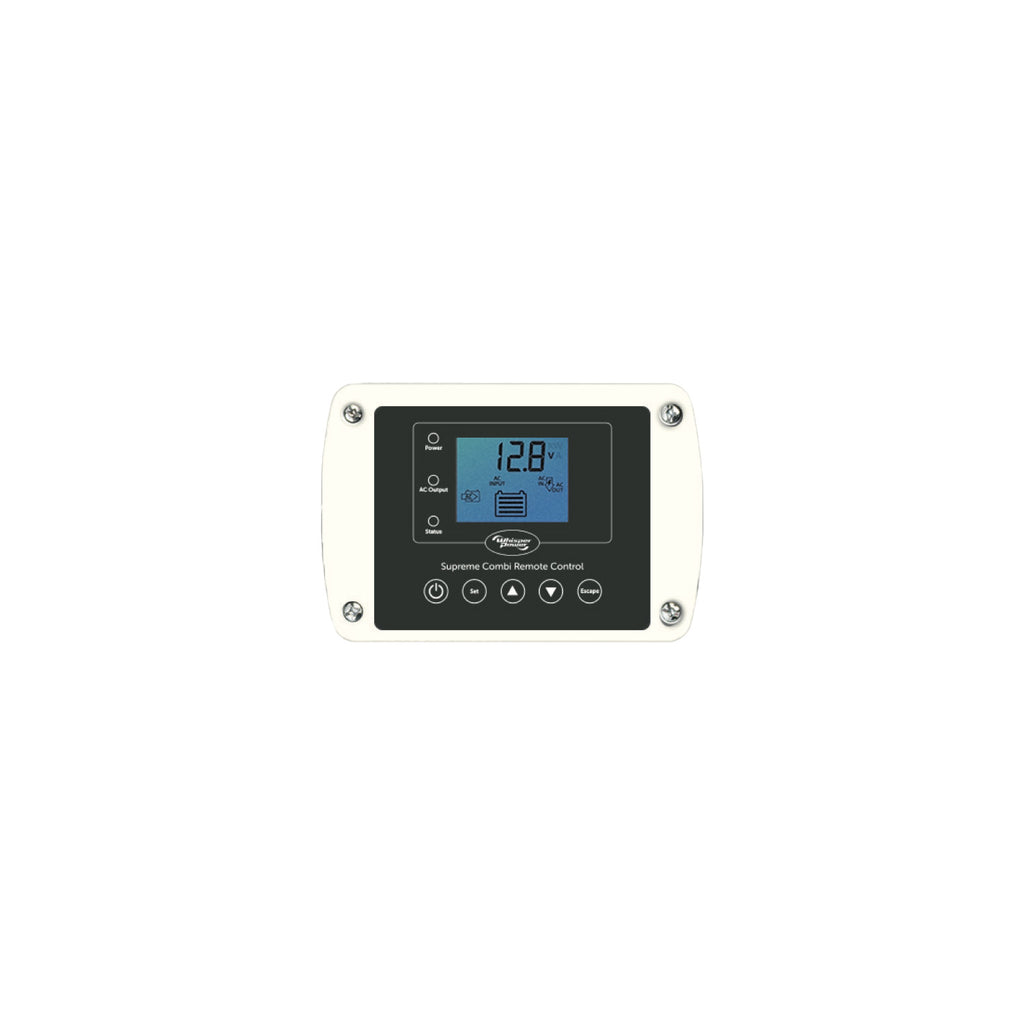

| Remote control panel | |
| Indicator (led) | Power, AC Output, Unit and battery status |
| Display Type | LCD with backlighting |
| Numerical Display Function | Battery Voltage, AC Power, DC Current |
| Graphics Display Function | AC Bypass, Battery Power, AC input, Battery Status Warning / Fault Code |
| Communication | CAN BUS, Bluetooth (optional) |
| USB Port | Unit software upgrade |
| Regulatory compliance | |
| Markings | CE |
| Conformance | LVD, EMC |
| EMI / EMC | CE EMC / Tested to E9-09 |
