Description

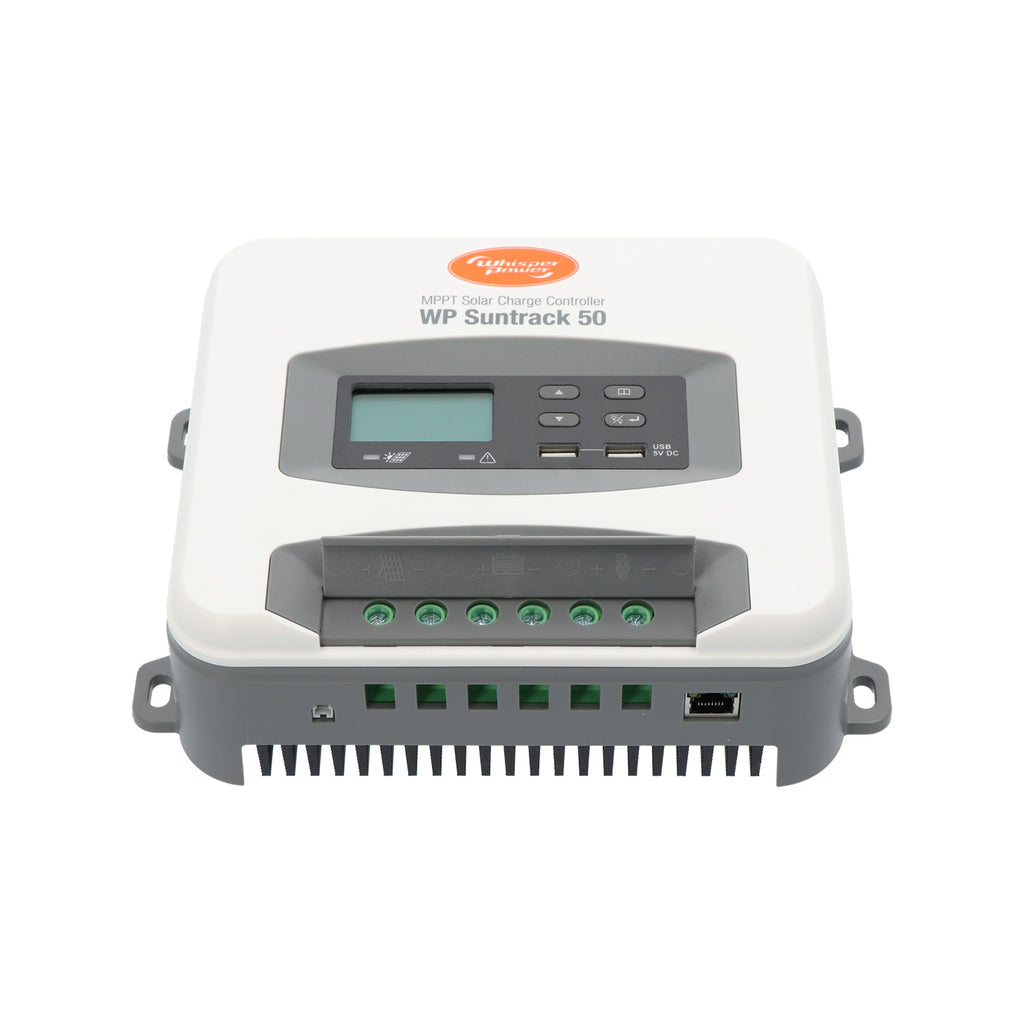

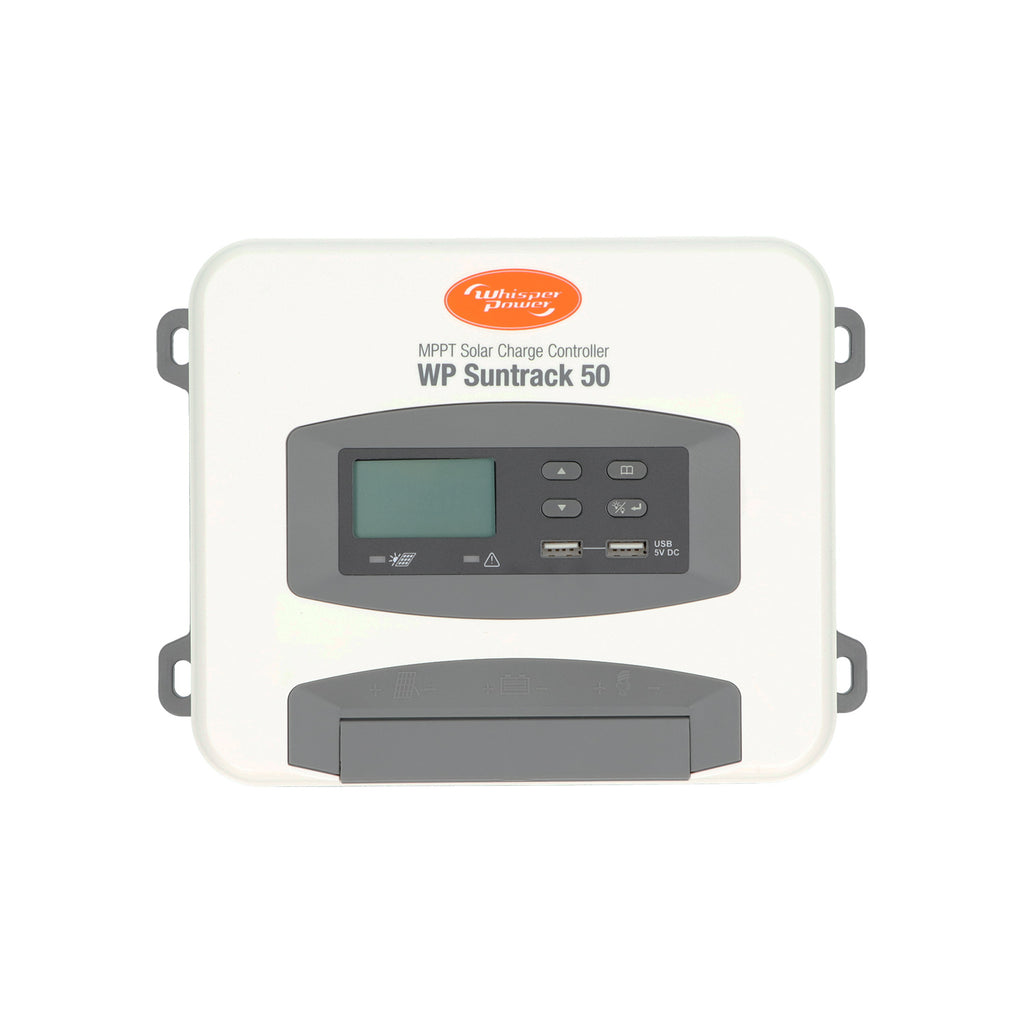

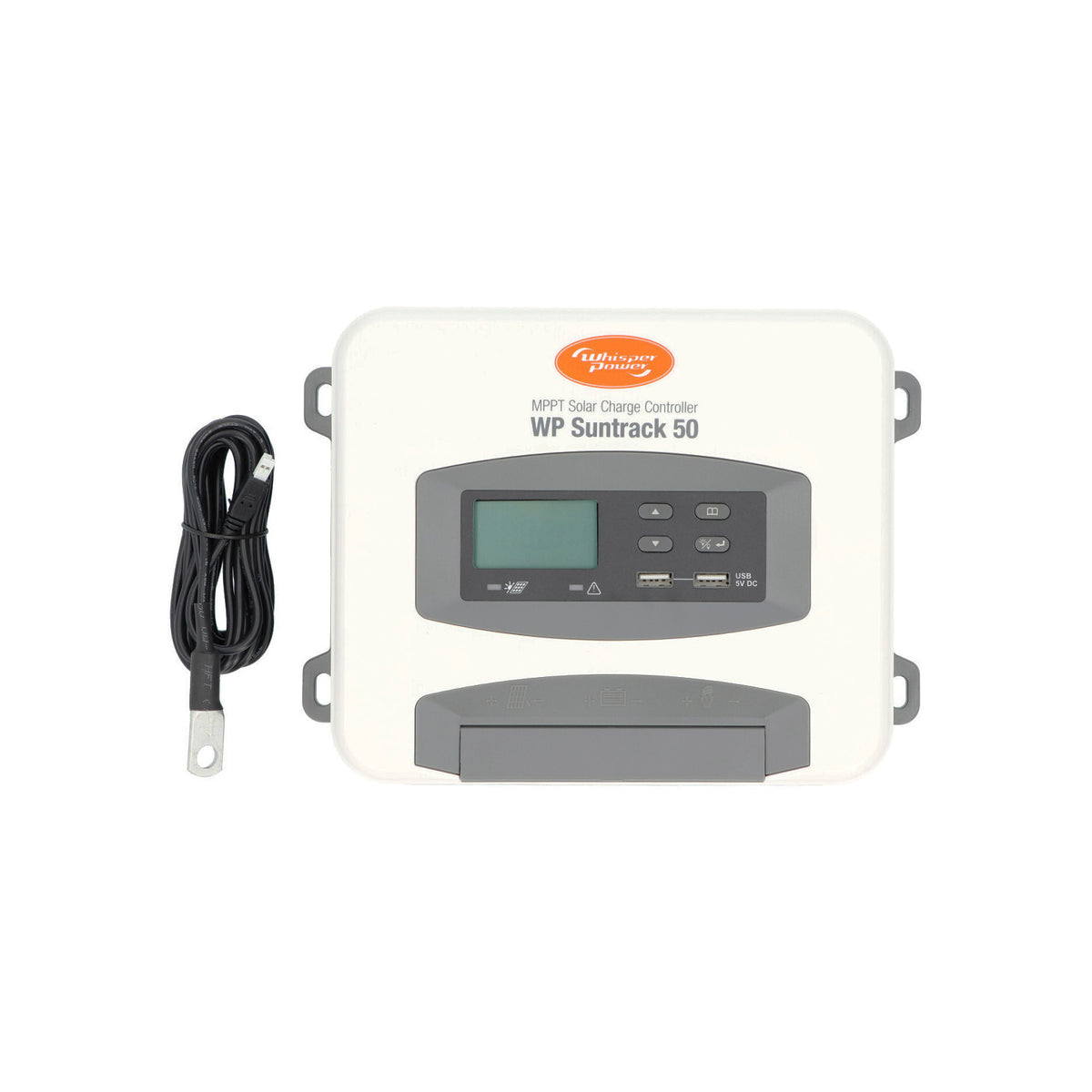

The WhisperPower Suntrack 50 MPPT Solar Charge controller is connecting solar panels (PV) to a 12, 24 or 48 VDC battery. The advanced MPPT technology ensures a fast and complete charge, even under cloudy and fluctuating weather circumstances. The Suntrack 50 comes with a monitoring APP (Ecosolar), temperature sensor and bluetooth connection.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60111436 |
| Dimensions & weight | |
| Dimensions (H x W x D) | 238 x 177 x 73 mm (9.4" x 7" x 2.9" inch) |
| Weight | 2.3 kg / 5.1 lb. |
| Pv input | |
| PV max open circuit voltage (VDC) | 135 V |
| MPPT voltage | 16 - 108 V |
| Max PV input power | 12 V Battery 700 W; 24 - 48 V Battery 1400 W; |
| Max MPPT current | (12 / 24 V) / 50 A; 36 V / 35 A; 48 V / 25 A |
| Dc output | |
| Battery voltage | 12 V / 24 V / 36 V / 48 V |
| Battery capacity | ≥50 Ah |
| Constant voltage charging voltage | STD: 14.4 V / 28.8 V / 43.2 V / 5 7.6 V - LI: 14.5 V - AGM: 14.6 V / 29.2 V / 43.8 V / 58.4 V |
| Load output | |
| Output current | 50 A |
| Usb output | |
| Output voltage | 5 V |
| Standby current | Battery input 12 V |
| Solar charger | <60 mA |
| Solar charger + Wifi module | <160 mA |
| Max output current | 3.4 A |
Documents: User manual
