Description

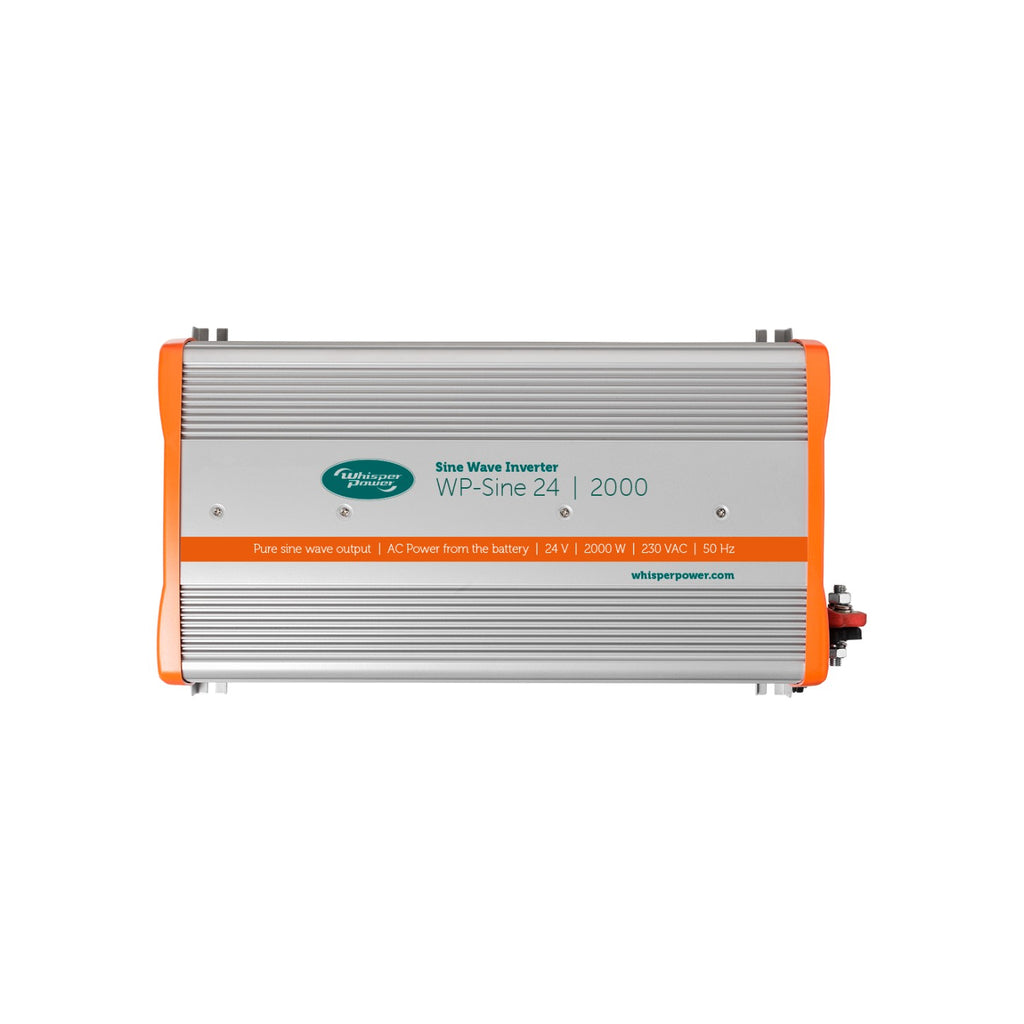

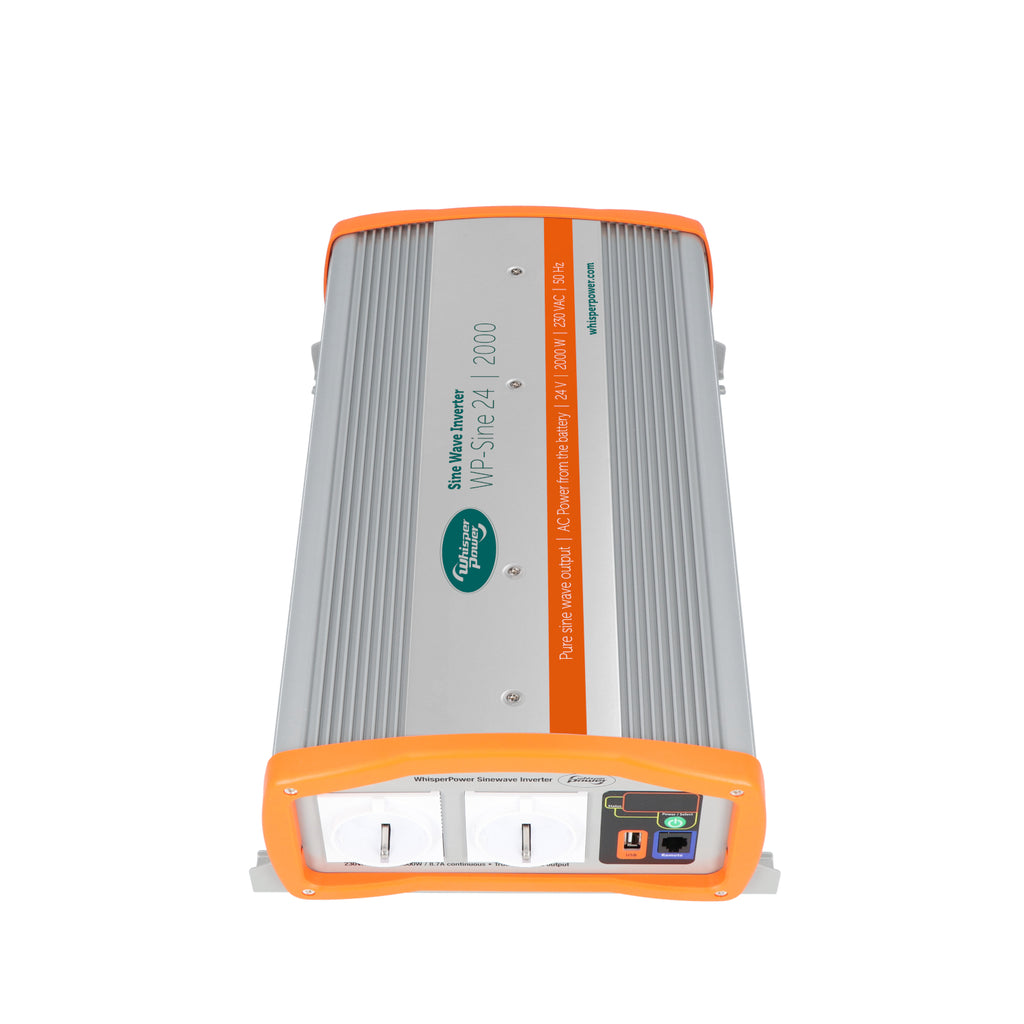

The Sine 24 VDC – 2000 W pure sine wave inverter efficiently delivers AC power from a battery, making it an ideal choice for boats, campers, and vacation homes. This inverter is perfect for charging devices such as phones and laptops, as well as running household appliances like power tools, coffee makers, and microwaves. Compact, lightweight, and durable, it boasts high efficiency and is easy to install without needing any maintenance. It complements existing setups that already have a battery charger.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61142500 |
| Ac output | |
| Power (continuous) | 2000 W |
| Power (peak 500 ms) | 4000 W |
| Output Voltage | 230 V |
| Output frequency | 50 Hz |
| Transfer Switch | No |
| Total harmonic distortion (THD) | <5% pure sine wave |
| Dc input | |
| Nominal battery voltage | 24 V |
| Voltage range | 21 - 31 VDC |
| Input power | 93.5 A |
| Consumption (no load) | 1.6 A typical |
| Dc output | |
| 5 V USB Phone charger | 2100 mA |
| Display | |
| LED indicator | Yes |
| Digital display | Input voltage / current, output power |
| Protection and features | |
| Length x width x height, mm (in.) | 230 x 416 x 112 (9.1 x 16.4 x 4.4) |
| Weight kg (lb.) | 5.5 (12.1) |
| Warning low input voltage | 22.4 VDC |
| Shutdown low battery voltage | 21.0 VDC |
| Recovery after low battery voltage | 23.6 VDC |
| Shutdown battery voltage too high | 31.0 VDC |
| Warning too much power | Yes |
| Shutdown too much power | Yes |
| Short circuit too much power | Yes |
| Temperature warning | Yes |
| Thermal protection (shutdown) | Yes |
| Conforms to | EC Council Directive 2004/108/EC Electromagnetic Compatibility Registration No: NTC 1310 406E & E-marking |
| Operating temperature range | -20 - 55°C (derating above 40 ° C) |
| Relative humidity in operation | 95%, non-condensing |
| Ventilation | Forced cooling |
| Battery connector | M6 Studs |
| Earth terminal | M6 Studs |
| AC-output | 2 Schuko sockets |
| Warranty | 2 years |
Documents: Datasheet
Need help choosing the right solution or with installation? Write to us – we are happy to help.
