Description

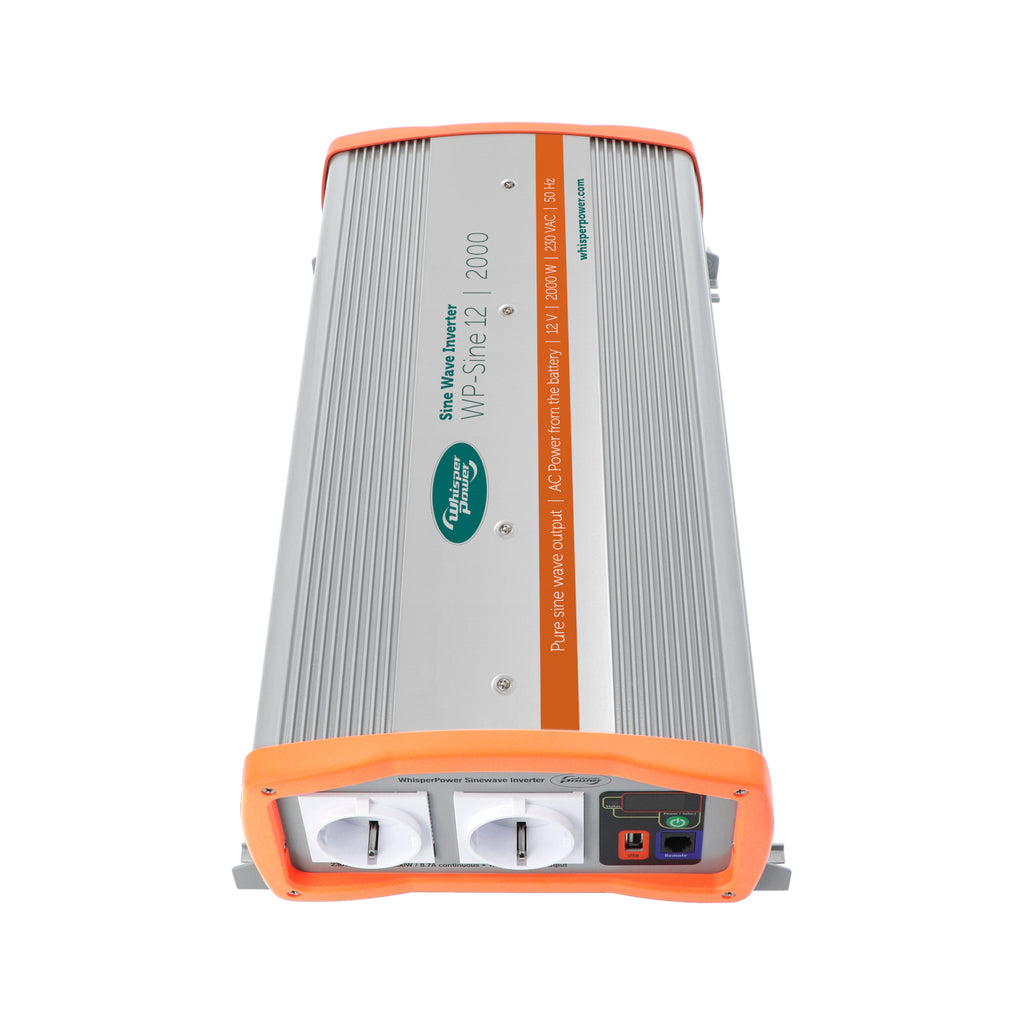

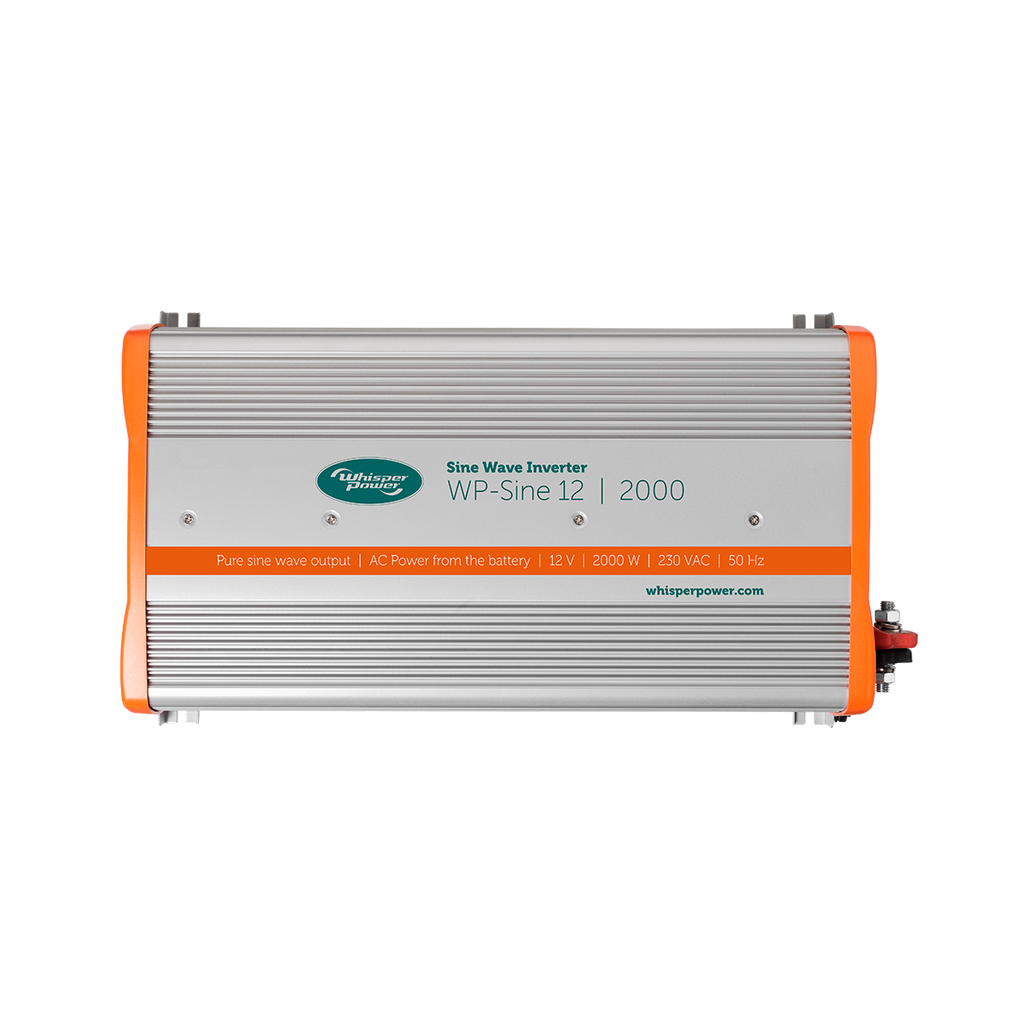

Meet the Sine 12 VDC – 2000 W Pure Sine Wave Inverter, designed to deliver grid-like voltage directly from a battery, such as the: Lithium Power Basic 12 V – 150 Ah. Perfect for a wide range of mobile and marine applications, from boats to trucks or other appliances. It is the ideal solution for powering devices such as smartphones, tablets, power tools, and vacuum cleaners.
The Sine 12 VDC – 2000 W inverter stands out with its compact size, lightweight design, robust construction, and high efficiency. Easy to install yourself and maintenance-free, it comes with the option of an EU or UK socket, making it versatile for various needs. Discover a reliable power source that ensures safety and convenience wherever you go.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61122500 |
| Ac output | |
| Power (continuous) | 2000 W |
| Power (peak 500 ms) | 4000 W |
| Output Voltage | 230 V |
| Output frequency | 50 Hz |
| Transfer Switch | No |
| Total harmonic distortion (THD) | <5% pure sine wave |
| Dc input | |
| Nominal battery voltage | 12 V |
| Voltage range | 10.5 - 15.5 VDC |
| Input power | 187 A |
| Consumption (no load) | 1.6 A base |
| Dc output | |
| 5 V USB Phone charger | 2100 mA |
| Display | |
| LED indicator | Yes |
| Digital display | Input voltage / current, output power |
| Protection and features | |
| Length x width x height, mm (in.) | 230 × 416 × 115 (9.1 x 16.4 x 4.5) |
| Weight kg (lb.) | 5.5 (12.1) |
| Warning low input voltage | 11.0 VDC |
| Shutdown low battery voltage | 10.5 VDC |
| Recovery after low battery voltage | 12.0 VDC |
| Shutdown battery voltage too high | 15.5 VDC |
| Warning too much power | Yes |
| Shutdown too much power | Yes |
| Short circuit too much power | Yes |
| Temperature warning | Yes |
| Thermal protection (shutdown) | Yes |
| Conforms to | EC Council Directive 2004/108/EC Electromagnetic Compatibility Registration No: NTC 1310 406E & E-marking |
| Operating temperature range | -20 - 55°C (derating above 40 ° C) |
| Relative humidity in operation | 95%, non-condensing |
| Ventilation | Forced cooling |
| Battery connector | Threaded M8 screw |
| Earth terminal | Threaded M8 screw |
| AC-output | 2 Schuko sockets |
| Warranty | 2 years |
Documents: Drawing · Drawing remote panel · User manual remote panel · Datasheet
Need help choosing the right solution or with installation? Write to us – we are happy to help.
