Description

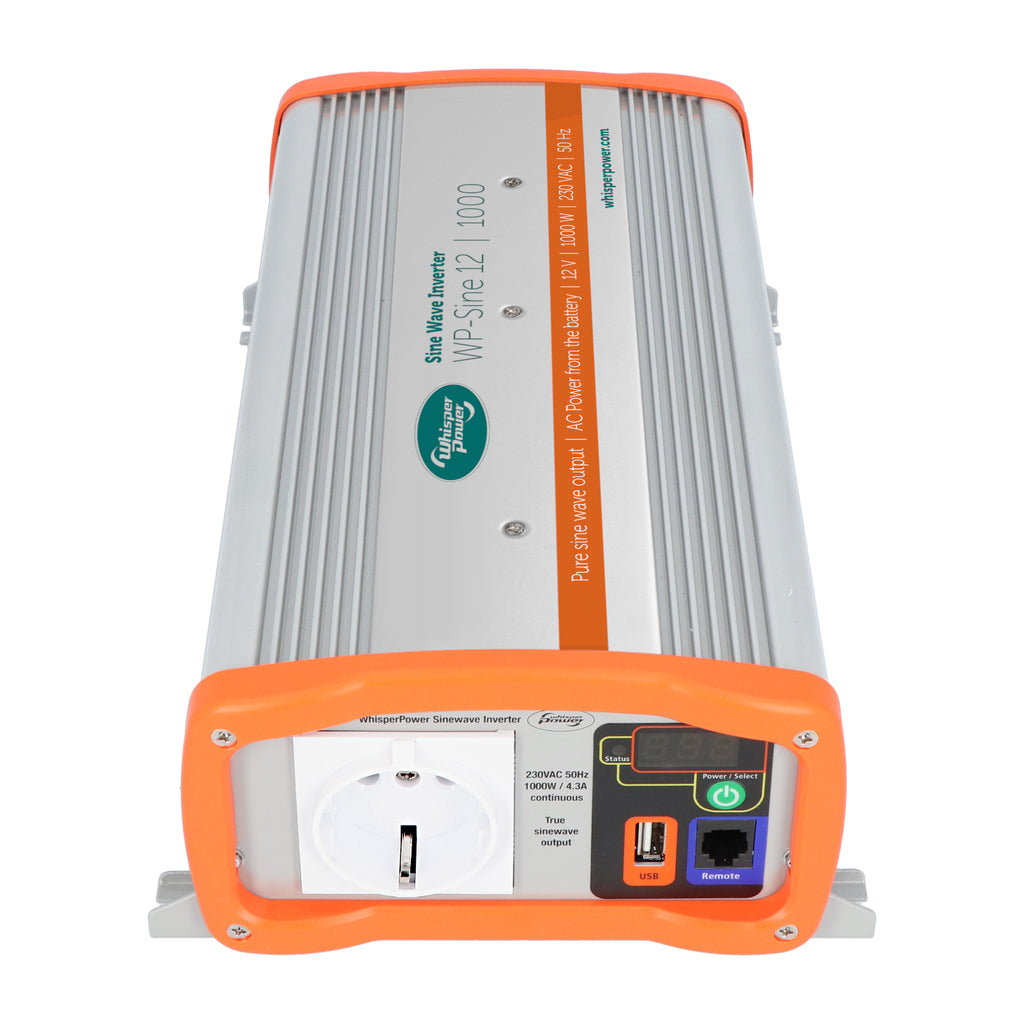

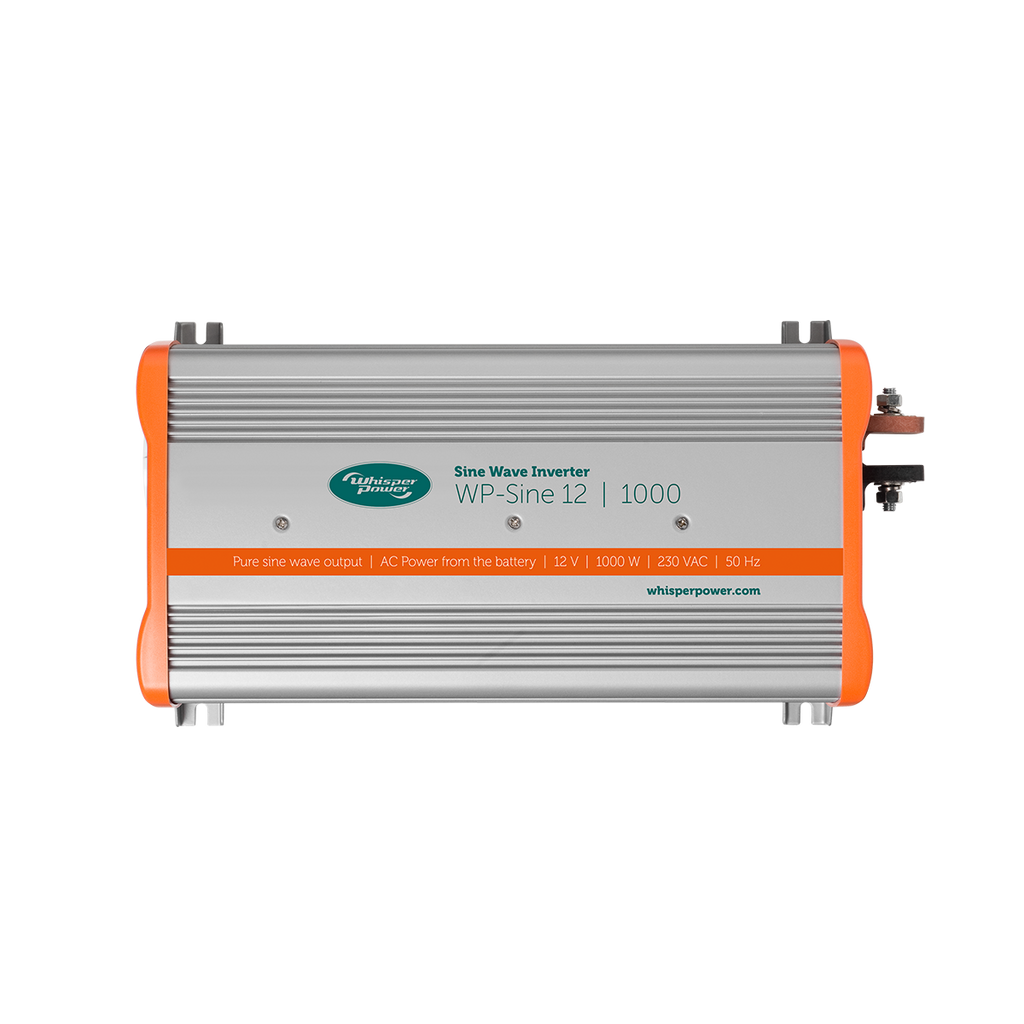

The Sine 12 VDC 1000 W sine wave inverter provides exactly the same voltage as at home but from a battery. For on your boat, bus, or camper, where a fixed network power connection is missing. Ideal for charging your mobile or tablet, power tools, microwave, and all other household appliances. This Sine series inverter is compact, light, robust, and very efficient. Easy to install by connecting the inverter to a battery, such as the Lithium Power Basic 12 V – 150 Ah yourself and maintenance-free. In short, the perfect addition to existing power supplies that already include a battery charger. Available with EU or UK socket.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61121500 |
| Ac output | |
| Power (continuous) | 1000 W |
| Power (peak 500 ms) | 2000 W |
| Output Voltage | 230 V |
| Output frequency | 50 Hz |
| Transfer Switch | No |
| Total harmonic distortion (THD) | <5% pure sine wave |
| Dc input | |
| Nominal battery voltage | 12 V |
| Voltage range | 10.5 - 15.5 VDC |
| Input power | 94 A |
| Consumption (no load) | 0.8 A base |
| Dc output | |
| 5 V USB Phone charger | 2100 mA |
| Display | |
| LED indicator | Yes |
| Digital display | Input voltage / current, output power |
| Protection and features | |
| Length x width x height, mm (in.) | 175 × 323.7 × 90 (6.9 x 12.7 x 3.5) |
| Weight kg (lb.) | 2.9 (6.4) |
| Warning low input voltage | 11.0 VDC |
| Shutdown low battery voltage | 10.5 VDC |
| Recovery after low battery voltage | 12.0 VDC |
| Shutdown battery voltage too high | 15.5 VDC |
| Warning too much power | Yes |
| Shutdown too much power | Yes |
| Short circuit too much power | Yes |
| Temperature warning | Yes |
| Thermal protection (shutdown) | Yes |
| Conforms to | EC Council Directive 2004/108/EC Electromagnetic Compatibility Registration No: NTC 1310 406E & E-marking |
| Operating temperature range | -20 - 55°C (derating above 40 ° C) |
| Relative humidity in operation | 95%, non-condensing |
| Ventilation | Forced cooling |
| Battery connector | Threaded M6 screw |
| Earth terminal | Threaded M6 screw |
| AC-output | 1 Schuko socket |
| Warranty | 2 years |
Documents: Drawing · Drawing remote panel · User manual remote panel · Datasheet
