Description

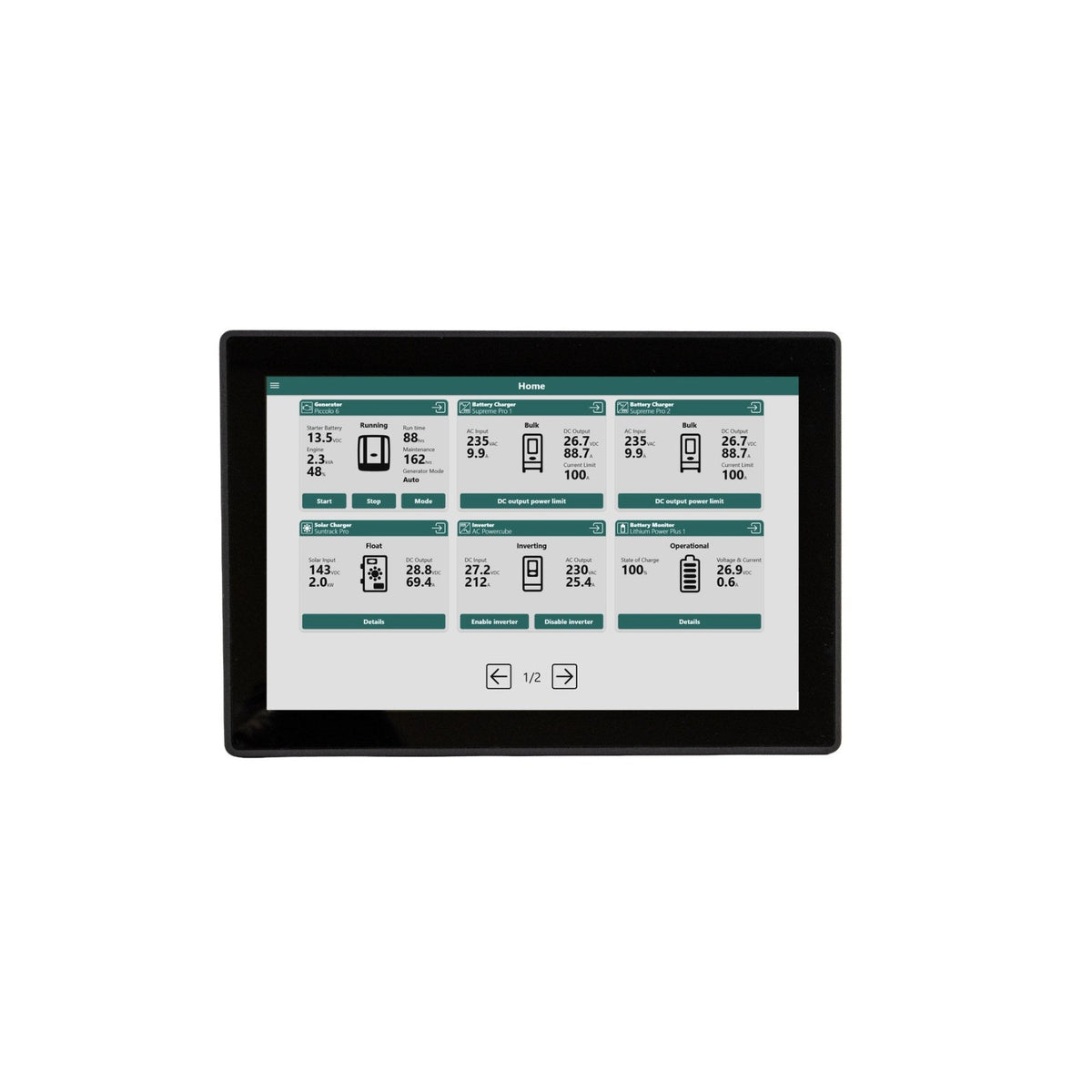

OctoView Touch Monitors: Intuitive Control and Monitoring
The OctoView Touch Monitor, available in 7- and 10-inch variants, provides users with an intuitive way to monitor and control their power system. These high-quality touchscreens are designed to offer a seamless user experience, featuring a clear interface and quick access to all essential system information.
By using the OctoControl Pro, users can easily connect their power system to the OctoView Touch Monitor 7 or 10 inch. This allows them to view and control data such as energy consumption, battery status, generator status, and connected devices directly on the screen. This makes the OctoView a central hub for managing larger and more complex power systems.
With the OctoView Touch Monitor, you always have control, whether you’re tracking performance or adjusting settings.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40280115 |
| Input voltage | 9 - 36 V |
| Power consumption (7” monitor) | < 10 W |
| Power consumption (10” monitor) | 14 W |
| Operating temperature (7” monitor) | - 20 °C to + 70 °C |
| Operating temperature (10” monitor) | - 20 °C to + 70 °C |
| Storage temperature | - 40 .. 80 °C, Relative humidity in operation/ storage up to 95% non-condensing |
| Resolution (7” monitor) | 1024 x 600 |
| Resolution (10” monitor) | 1280 x 800 |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Connections | HDMI, USB |
| Dimensions & weight | |
| Weight (Kg) (7” monitor) | 1.5 |
| Weight (Kg) (10” monitor) | 1.1 |
| Dimensions (mm) (7” monitor) | 200 x 35 x 120 |
| Dimensions (mm) (10” monitor) | 254 x 39 x 172 |
| IP grade (7” monitor) | Front IP65 |
| IP grade (10” monitor) | Front IP65 |
Documents: Datasheet · Brochure
Need help choosing the right solution or with installation? Write to us – we are happy to help.
