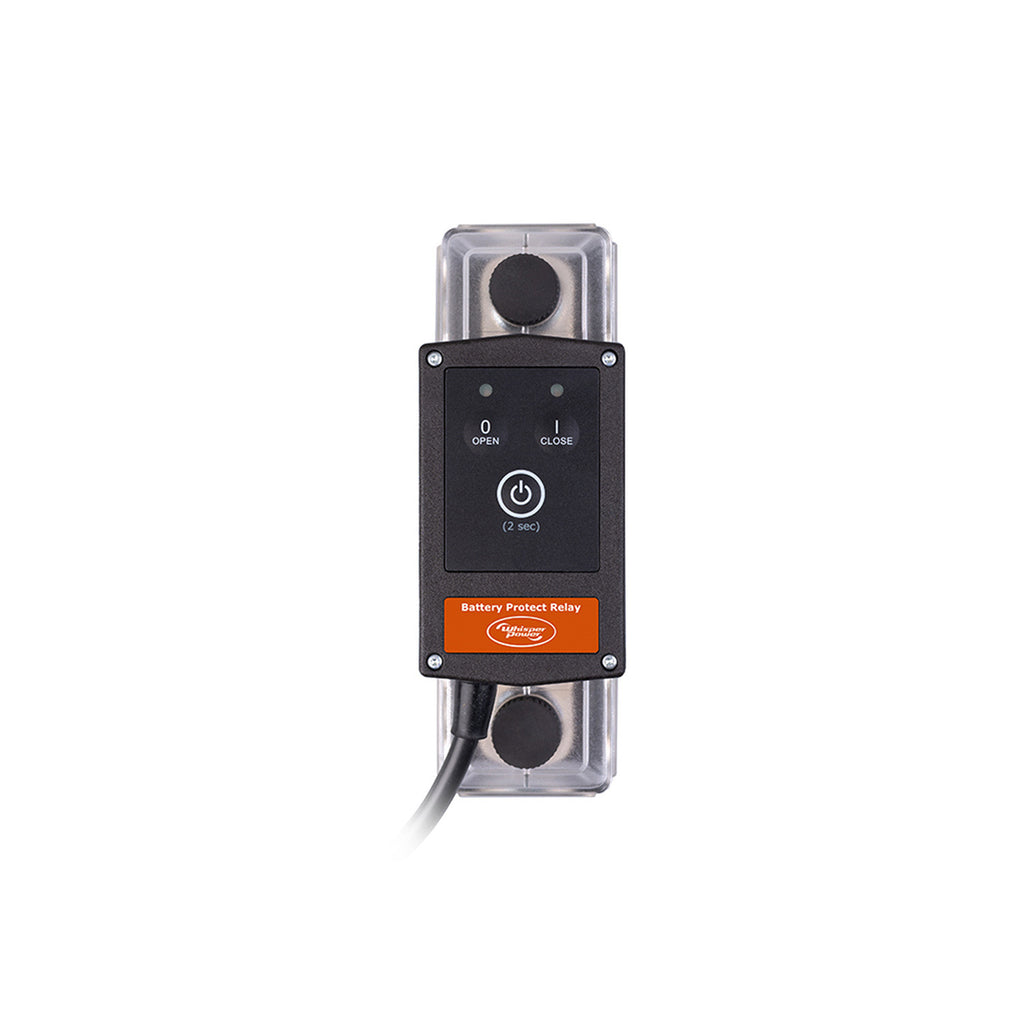

Description
The DC Modular Battery Protect Relay has the same capabilities as the Remote Battery Switch. It is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 350 Amps.
Whereas the Remote Battery Switch is mainly used as a locally or externally controlled battery load switch, the Modular Battery Protect Relay has a number of additional features. Most importantly, it can protect your battery without the need for an external measurement and control device.
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214740 |
| Rated voltage | 60 VDC |
| Nominal current | 500 A |
| Cranking current (1 min.) | 1000 A |
| Nominal make / break current | 500 A (0 - 34 VDC) / 350 A (35 - 60 VDC) |
| Peak make / break current | 1600 A (0 - 34 VDC) / 1200 A (35 - 60 VDC) |
| Control circuit (electrical) | |
| Coil / supply voltage (+ VDC) | 34 - 68 VDC |
| Coil / supply current (idle state)* | < 100 qA |
| Coil / supply current (state change)* | < 1.5 A |
| * | Due to the magnetic latch construction, the WP-MBP draws virtually no current in the ON or OFF state. A current draw only exists shortly (500 ms max.) when changing the state of the contact. |
| General | |
| Dimensions (W x D x H) mm | 50 x 94 x 150 |
| Weight | 800 g |
| Remote control | By control wires |
| Local control ** | ON/Standby, Open and Close contact, Override mode |
| Indicators | Contact open/close, Undervoltage disconnect, Override mode, Error and Setup |
| Mechanical life | 100000 cycles |
| Electrical life | 10000 cycles |
| Operating temperature range | -20 up to 60°C |
| Connection stud size | M10 |
| DC Modular grid size | 1 x 3 |
| Protection class | IP65 |
| Standards | CE certified (EMC Directives UNECE Regulation 10 and 2014/30/EU, Low voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Ignition protection standard ISO 8846) |
| ** | Using the top side buttons, one can manually override the switch state as commanded through the control wires. A dedicated 'ON / Standby' button also allows the user to put the WP-MBP in a standby mode with open contact. In this mode any command from the control wires and/or manual override buttons are ignored. |
Documents: User manual
