Description

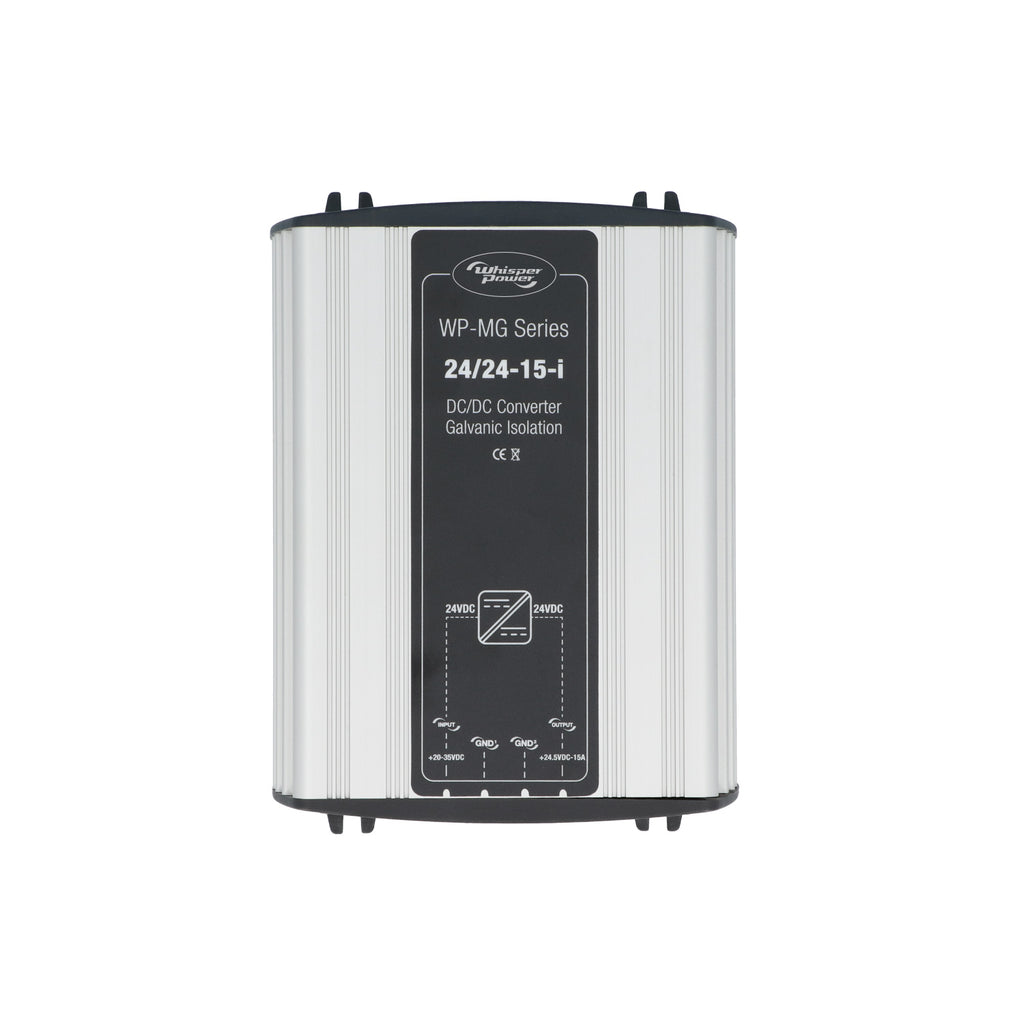

DC-DC voltage stabilizer MG 24-24 VDC 15 A -i, Galvanic isolated. This device guarantees constant voltage, regardless of fluctuations caused by the battery. For the protection of sensitive electronic equipment against voltage variation. Extra stable due to separated power circuits.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110025 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 83 x 186 x 133 (3.3 x 7.3 x 5.2) |
| Weight, kg (lb.) | 1.4 (3.1) |
| Converter type | voltage stabilization |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 20 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 24.5 VDC |
| Voltage adjustable | Yes |
| Output accuracy | 3% |
| Ripple, peak output voltage | 1% |
| maximum power output | 400 W |
| continuous output power | 360 W |
| Maximum output current | 16 A |
| Continuous output current at 40 °C | up to 15 A |
| General | |
| efficiency | >87% |
| consumption no load | <25 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Yes, 500 Vac |
| Cooling | Mechanical |
| Protections | |
| Current / short circuit | Restricted by current rating |
| Overheating, shut down | Power restricted by temperature |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 91 x 177 |
| International Protection rating | IP20 |
| Housing | frame 8 |
| Housing material | Anodized aluminium, ABS end caps |
| Housing colour | RAL 9006 blank alu |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
