Description

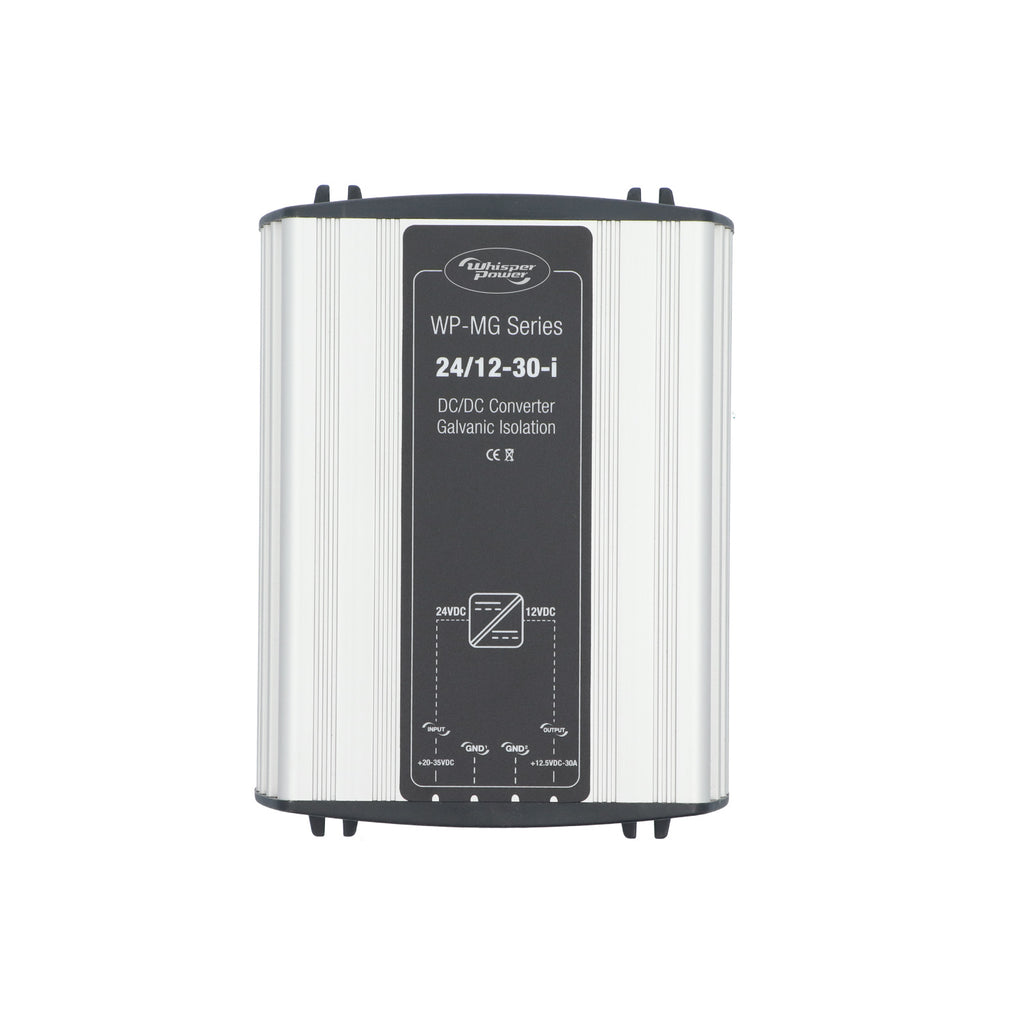

Meet the DC-DC Galvanic isolated converter MG 24-12 VDC 30 A -i. Supplies devices with 12 VDC while the battery produces 24V. This step-down converter features an electronic process that ensures high efficiency with minimal heat output. Its efficiency and dependability render it an ideal choice for consistent voltage conversion. This version features galvanic isolation, ensuring additional stability through segregated current pathways.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110021 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 83 x 186 x 133 (3.3 x 7.3 x 5.2) |
| Weight, kg (lb.) | 1.4 (3.1) |
| Converter type | voltage step down and stabilization |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 20 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 12.5 VDC |
| Voltage adjustable | Yes |
| Output accuracy | 3% |
| Ripple, peak output voltage | 1% |
| maximum power output | 400 W |
| continuous output power | 360 W |
| Maximum output current | 32 A |
| Continuous output current at 40 °C | up to 30 A |
| General | |
| efficiency | >87% |
| consumption no load | <25 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Yes, 500 Vac |
| Cooling | Mechanical |
| Protections | |
| Current / short circuit | Restricted by current rating |
| Overheating, shut down | Power restricted by temperature |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 91 x 177 |
| International Protection rating | IP20 |
| Housing | frame 8 |
| Housing material | Anodized aluminium, ABS end caps |
| Housing colour | RAL 9006 white aluminium |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
Documents: Datasheet · User manual
