Description

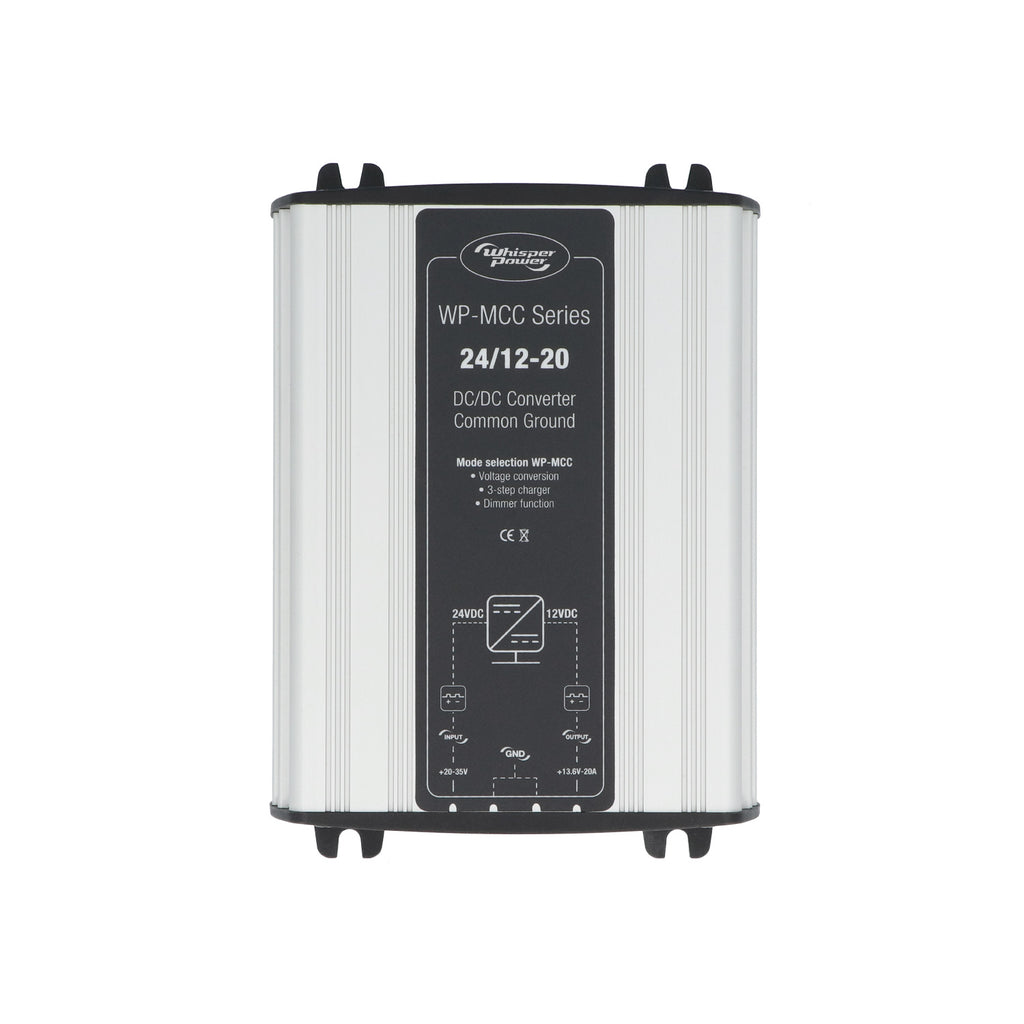

The MCC 24-12 VDC 20A Multifunctional DC/DC B2B Charger, equipped with current limitation and a common ground, provides a three-stage charging process to ensure fast, efficient, and safe charging. This process enhances battery performance and prolongs battery life. The step-down converter delivers a stabilized 12V DC supply to devices while the battery outputs 24V. It also supports parallel usage.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110015 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 x 126 x 88 (2 x 5 x 3.5) |
| Weight, kg (lb.) | 0.955 (2.1) |
| Converter type | voltage step down and stabilization 3-step 12 V battery charger, light dimmer function |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 24 .. 32 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 13.6 VDC |
| Voltage adjustable | 12 .. 15 VDC |
| Output accuracy | 2% |
| Ripple, peak output voltage | 1% |
| maximum power output | 300 W |
| continuous output power | 270 W |
| Maximum output current | 20 A |
| Continuous output current at 40 °C | up to 20 A |
| General | |
| Efficiency | >90% |
| consumption no load | <30 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Yes, 500 Vac |
| Cooling | Mechanical |
| Protections | |
| Current / short circuit | Restricted by current rating |
| Overheating, shut down | Power restricted by temperature |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 91 × 177 |
| International Protection rating | IP20 |
| Housing | frame 8 |
| Housing material | Alu / ABS |
| Housing colour | RAL 9006 blank alu RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
Documents: Datasheet · User manual
