Description

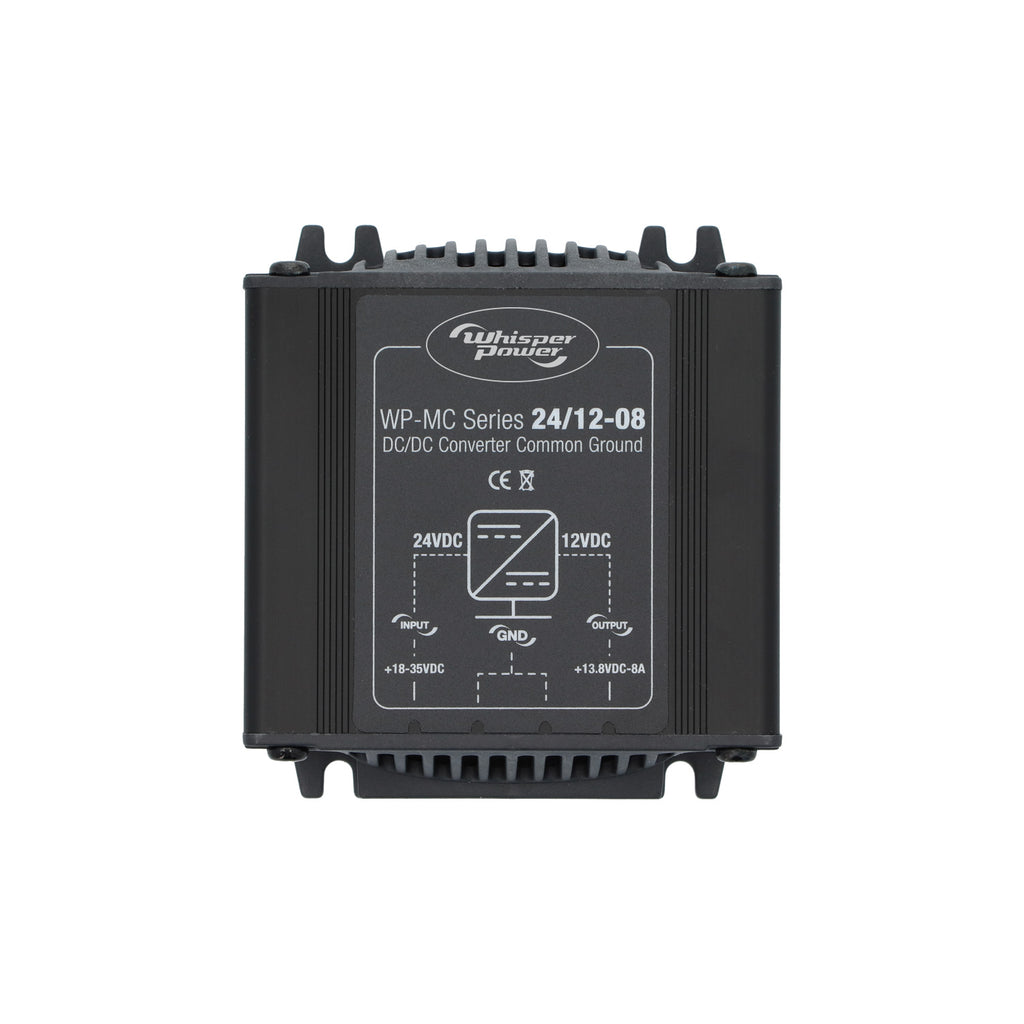

DC-DC step-down converter MC 24-12 VDC 8 A with common negative. Provides 12 VDC to devices while operating on a 24V battery. Utilizing Switched Mode technology, this system guarantees minimal energy wastage and maximizes output efficiency. It also offers complete protection against overload and elevated ambient temperatures. Cannot be used in parallel.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110010 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 x 98 x 88 (2 x 3.9 x 3.5) |
| Weight, kg (lb.) | 0.27 (0.6) |
| Converter type | Voltage step down and stabilization |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 18 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 13.8 VDC |
| Voltage adjustable | no |
| Output accuracy | 3% |
| Ripple, peak output voltage | 1% |
| maximum power output | 110 W |
| continuous output power | 110 W |
| Maximum output current | 8 A |
| Continuous output current at 40 °C | up to 8 A |
| General | |
| efficiency | >92% |
| consumption no load | <5 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Common negative |
| Cooling | convectional |
| Protections | |
| Current / short circuit | Yes / fuse |
| Overheating, shut down | no |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 58×90 |
| International Protection rating | IP20 |
| Housing | frame 4 |
| Housing material | Alu / ABS |
| Housing colour | RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
