Description

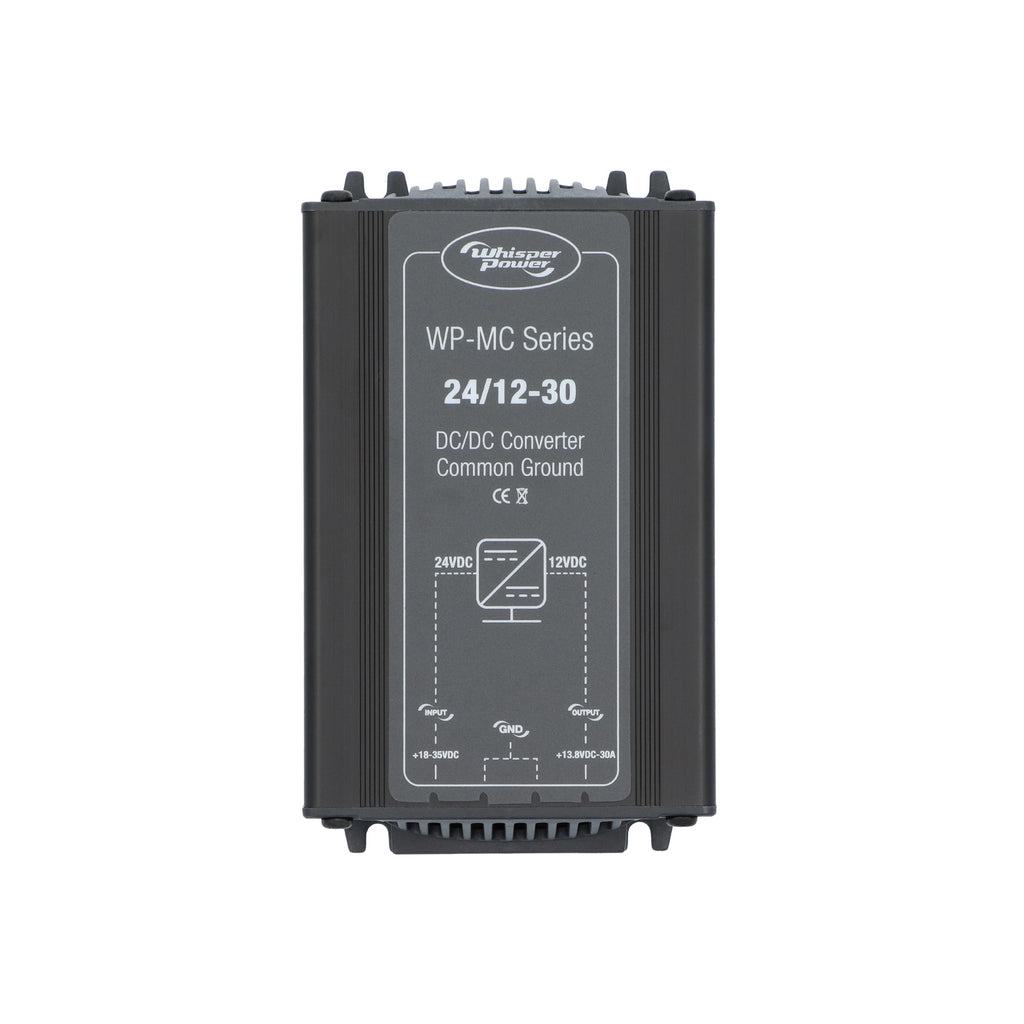

DC-DC step-down converter MC 24-12 VDC 30 A with common negative. Delivers 12 VDC to equipment sourced from a 24V battery. The device employs Switched Mode technology for efficient energy usage and optimal output. Moreover, it is safeguarded against overload and can withstand high temperatures. Cannot be used in parallel.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110012 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 x 151 x 88 (2 x 6 x 3.5) |
| Weight, kg (lb.) | 0.5 (1.1) |
| Converter type | voltage step down and stabilization |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 18 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 13.8 VDC |
| Voltage adjustable | no |
| Output accuracy | 1% |
| Ripple, peak output voltage | 1% |
| maximum power output | 490 W |
| continuous output power | 420 W |
| Maximum output current | 35 A |
| Continuous output current at 40 °C | up to 30 A |
| General | |
| efficiency | >92% |
| consumption no load | <25 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Common negative |
| Cooling | Mechanical |
| Protections | |
| Current / short circuit | Restricted by current rating |
| Overheating, shut down | Power restricted by temperature |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 58 × 143 |
| International Protection rating | IP20 |
| Housing | frame 6 |
| Housing material | Anodized aluminium, ABS end caps |
| Housing colour | RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
Documents: Datasheet · User manual · EC Declaration of Conformity
