Description

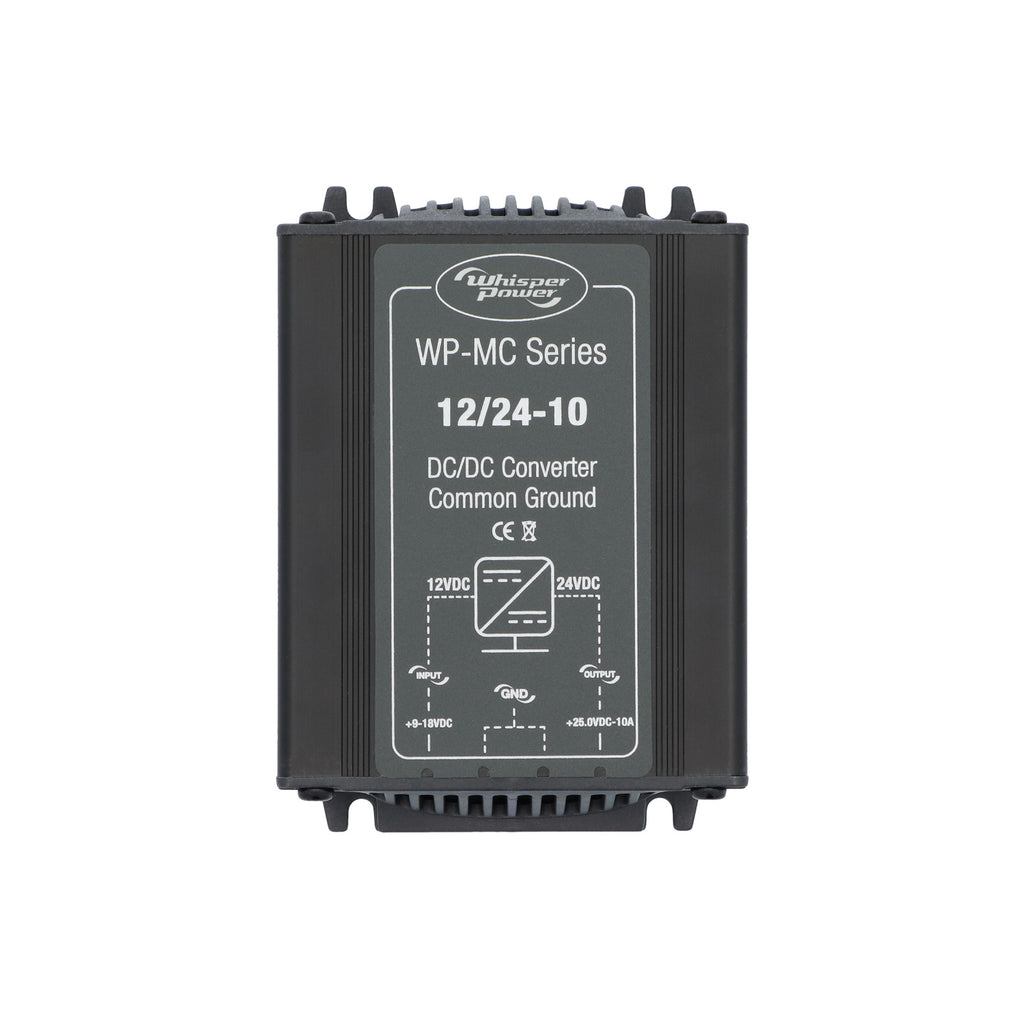

DC-DC step-up converter MC 12-24 VDC 10 A with common negative. Provides a stable 24 VDC to devices while operating on a 12V battery. The Switched Mode technology ensures minimal energy loss and high output. Fully protected against overload and high ambient temperatures. Incompatible for parallel setup.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110017 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 x 126 x 88 (2 x 5 x 3.5) |
| Weight, kg (lb.) | 0.36 (0.8) |
| Converter type | voltage step up and stabilization |
| Input | |
| Nominal input voltage | 12 VDC |
| Input range, specifications met | 9 .. 18 VDC |
| Input range, no defects | 0 .. 18 VDC |
| Output | |
| Nominal output voltage | 25 VDC |
| Voltage adjustable | no |
| Output accuracy | 3% |
| Ripple, peak output voltage | 3% |
| maximum power output | 300 W |
| continuous output power | 250 W |
| Maximum output current | 12 A |
| Continuous output current at 40 °C | up to 10 A |
| General | |
| efficiency | >93% |
| consumption no load | <5 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Common negative |
| Cooling | convectional |
| Protections | |
| Current / short circuit | Yes / fuse |
| Overheating, shut down | no |
| Mechanical specifications | |
| Faston in / off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 58 × 118 |
| International Protection rating | IP20 |
| Housing | frame 5 |
| Housing material | Alu / ABS |
| Housing colour | RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
