Description

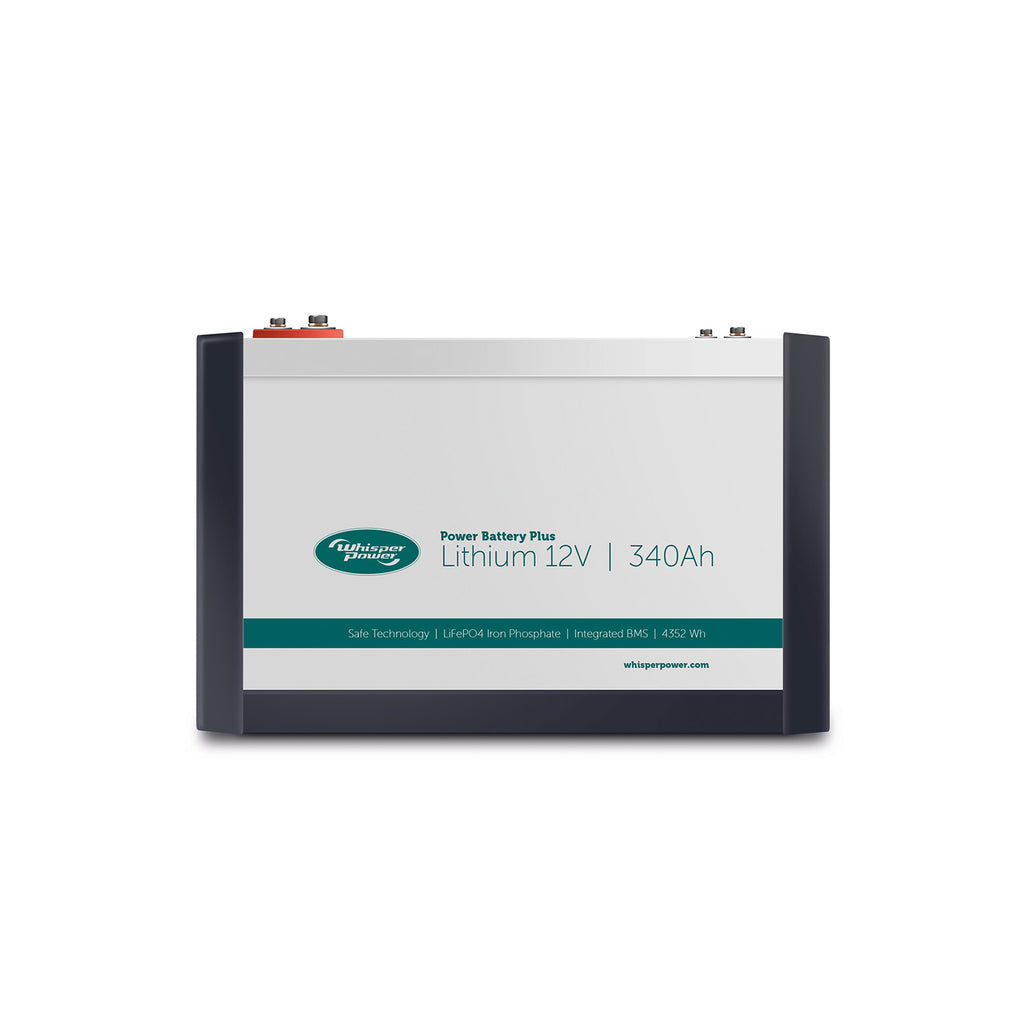

Lithium Power Plus 12 VDC – 340 Ah for assembling powerful battery banks. Suitable for both maritime and land applications. Superior energy storage: safe, powerful, and compact. Highly durable with more than 5000 cycles. Fully charged in just one hour. 5-year warranty.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40290219 |
| Battery NR code | IFpP/41/173/205 |
| Length x width x height | 227 x 417 x 314 mm (8.9" x 16.4" x 12.4" inch) |
| Weight | 33 kg (72.7 lb.) |
| Nominal voltage | 12.8 V |
| Maximum voltage | 15.4 VDC |
| End charge voltage | 14.3 VDC |
| Max charge current 100/c | 320 A |
| Max float charge current | 100 A |
| Minimum battery voltage | 8 VDC |
| Minimum float charge | 10 VDC |
| Max discharge current | 500 A |
| Pulsed discharge current (10 sec) | 800 A |
| Pulsed discharge current (60 sec) | 600 A |
| Usable battery capacity at 20 ̊C | 340 Ah / 4352 Wh |
| Usable capacity / in comparison to lead acid battery | 600 Ah |
| Charge method | Constant voltage IU |
| Temperature range (charging) | 0°C to 45°C |
| Temperature range (discharging) | -20°C to +60°C |
| Temperature range (storage) | -20°C to +60°C |
| Compliance parameters | |
| Certifications | CE, FCC, UN 38.3, UN ECE R10.06, UL 1642 (Celis) |
| Shipping Classification | UN 3480 |
Documents: Datasheet · Quick Start Guide · User manual
