Description

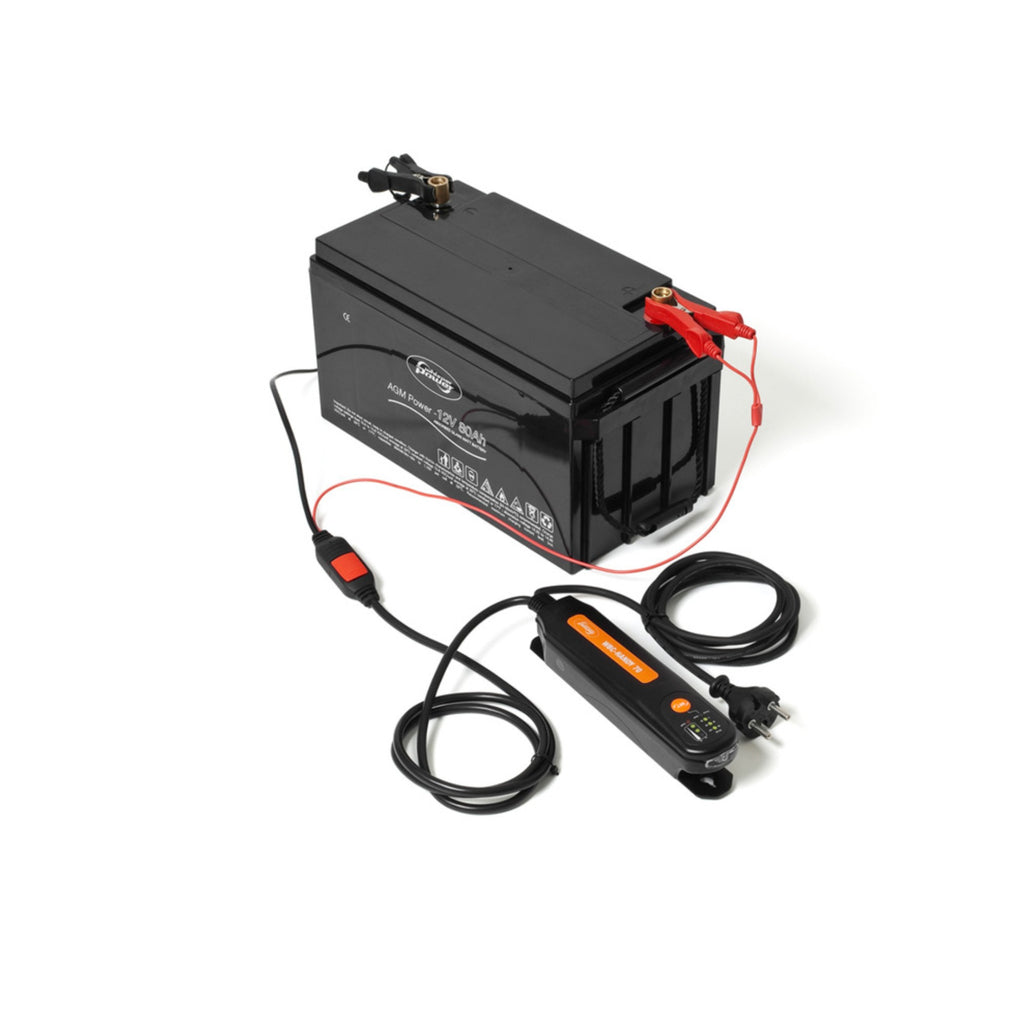

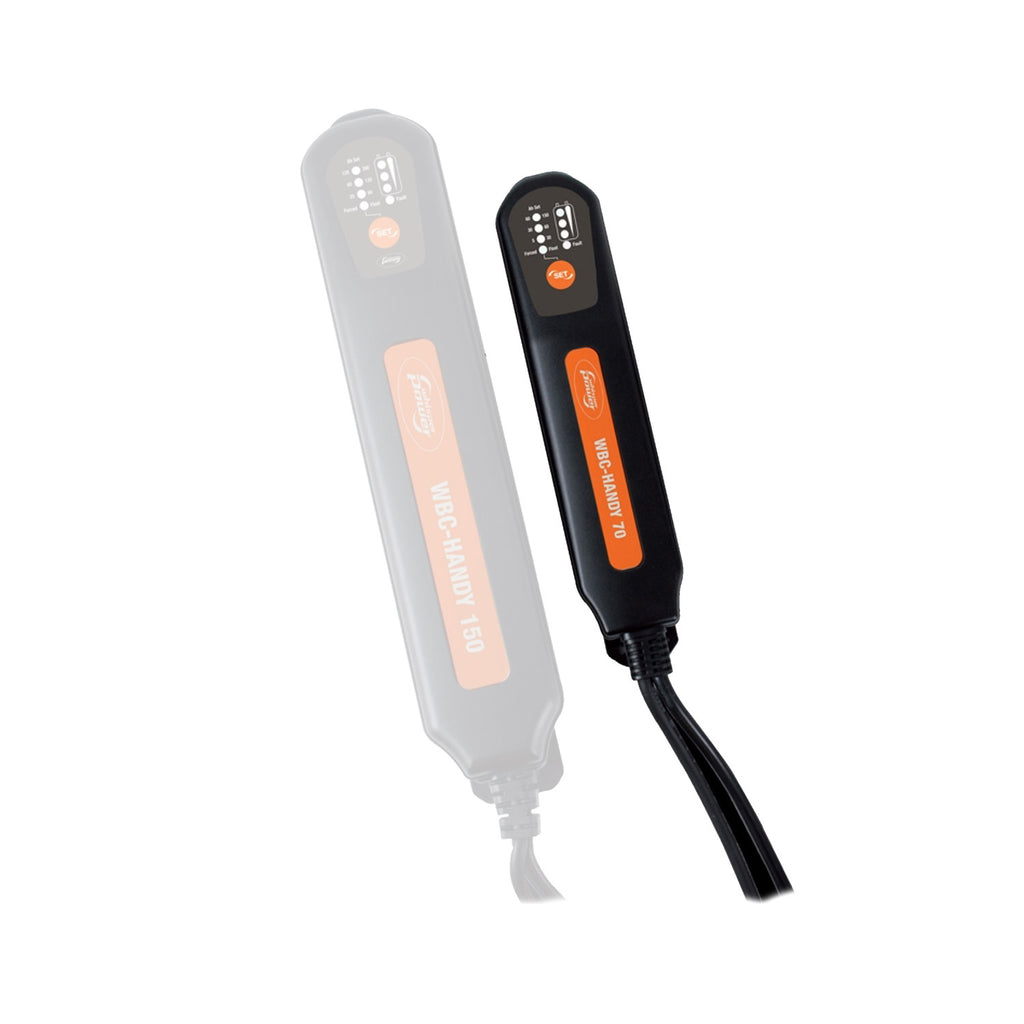

Fully automatic battery charger Handy 12 VDC – 7 A. Perfect for a range of small batteries, Handy excels in versatility. It’s adept at charging AGM, GEL and larger Lead-acid starter batteries used in extensive electrical systems. Its fast and complete charging process enhances battery life and dependability. Comes with a mounting bracket and all necessary accessories for connecting to AC sources and batteries.
Available with UK or EU plug.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61112008 |
| Input voltage | 220 - 240 VAC ±10% |
| Length x width x height, mm (in.) | 225 x 50 x 50 (8.6 x 2 x 2) |
| Weight | 0.5 Kg / 1.1 lbs |
| Input current | 0.9 A |
| Back current | ≤1 mA |
| Charging Voltage | 13,7 – 15 VDC |
| Charging Voltage Supply | 13,7 VDC |
| Charging current | Max. 7 A |
| Ripple voltage | Max. 70 mV |
| Ambient temperature | -40.. +50°C |
| Cooling | Convection |
| Charge Characteristics | 5 step IUIU + pulse |
| Forced Float | 13.7 VDC (Maintenance charge) |
| Lead-acid battery types | AGM / GEL, WET batteries |
| Battery capacity | 1 - 150 Ah (Max. 180 Ah) |
| Cabling | Battery cable 1500 mmPower cable 1400 mm |
| Europe plug | IEC60884 |
| United Kingdom plug | BS1363 |
| International Protection grade | IP54 |
Documents: User manual
