Description

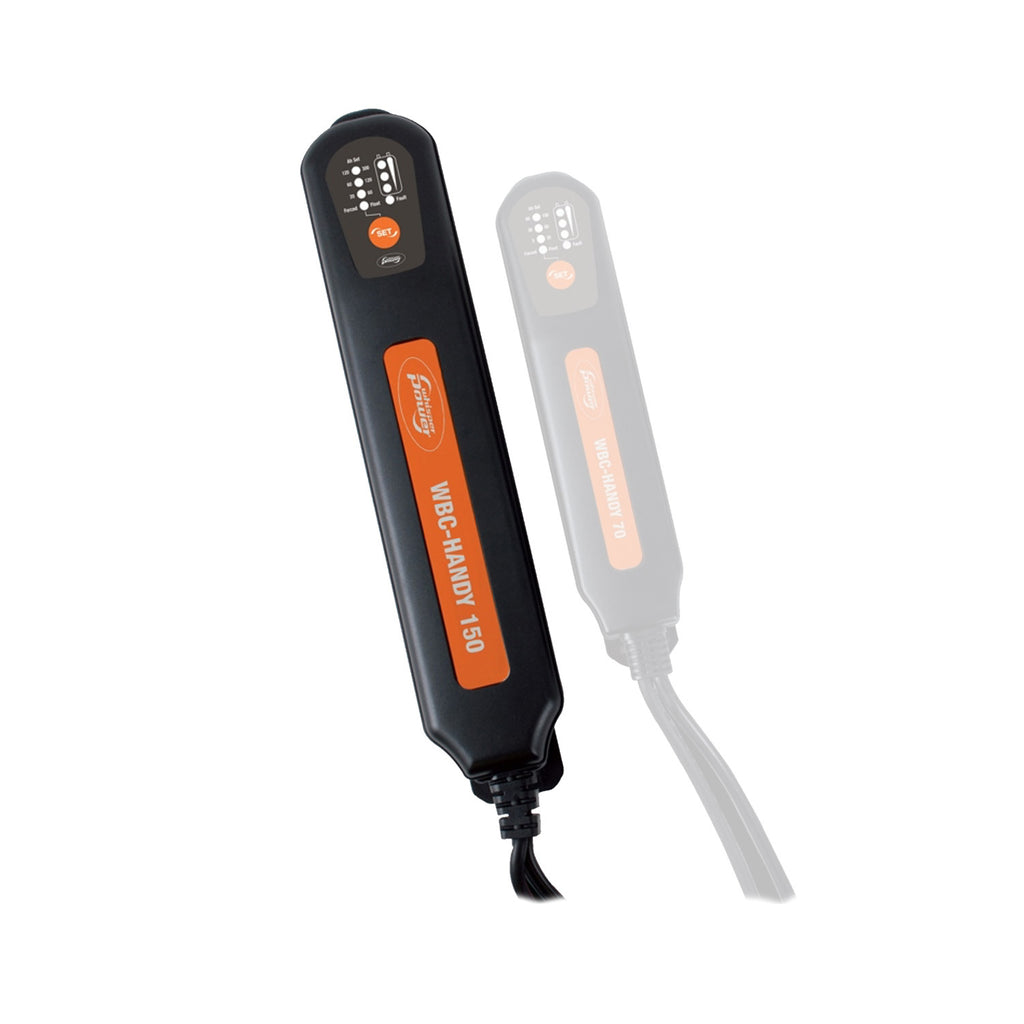

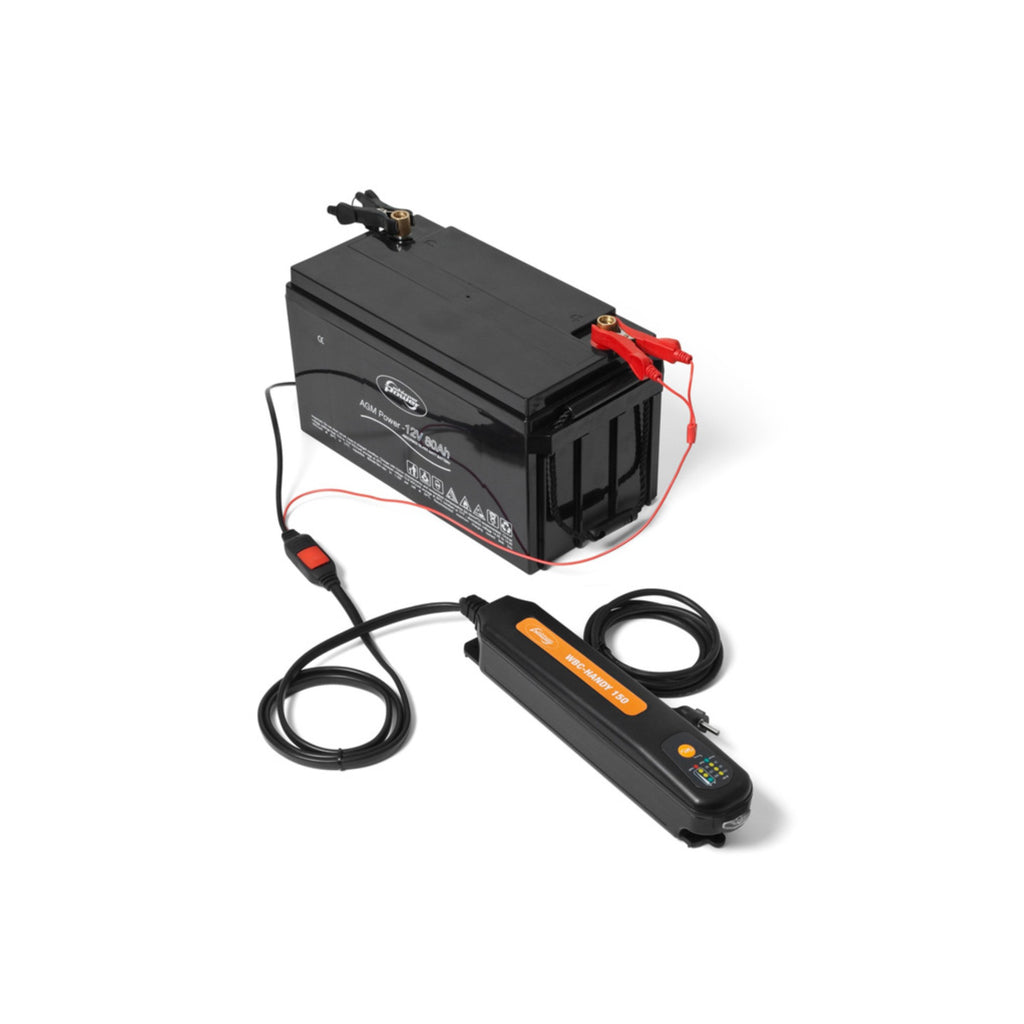

Fully automatic battery charger Handy 12 VDC – 15 A. Ideal for charging all kinds of small batteries. Handy is versatile, suitable for charging AGM, GEL or larger Lead-acid starter batteries found in extensive electrical systems. It charges quickly and thoroughly, which benefits both their lifespan and reliability. Includes bracket for mounting and connection accessories for the AC source and battery.
Available with UK or EU plug.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61112016 |
| Input voltage | 220-240 VAC ±15% |
| Length x width x height, mm (in.) | 325 x 65 x 60 (12.8 x 2.6 x 2.4) |
| Weight | 0.8 Kg / 1.76 lbs |
| Input current | 1.5 A |
| Back current | ≤1mA |
| Charging Voltage | 13,7 – 15 VDC |
| Charging Voltage Supply | 13,7 VDC |
| Charging current | Max. 15A |
| Ripple voltage | Max. 70 mV |
| Ambient temperature | -40.. +50°C |
| Cooling | Convection |
| Charge Characteristics | 5 step IUIU + pulse |
| Forced Float | 13.7 VDC (Maintenance charge) |
| Lead-acid battery types | AGM/GEL, WET batteries |
| Battery capacity | 20 -300 Ah (Max. 360 Ah) |
| Cabling | Battery cable 1500 mmPower cable 1400 mm |
| Europe plug | IEC60884 |
| United Kingdom plug | BS1363 |
| International Protection grade | IP54 |
Documents: User manual
