Description

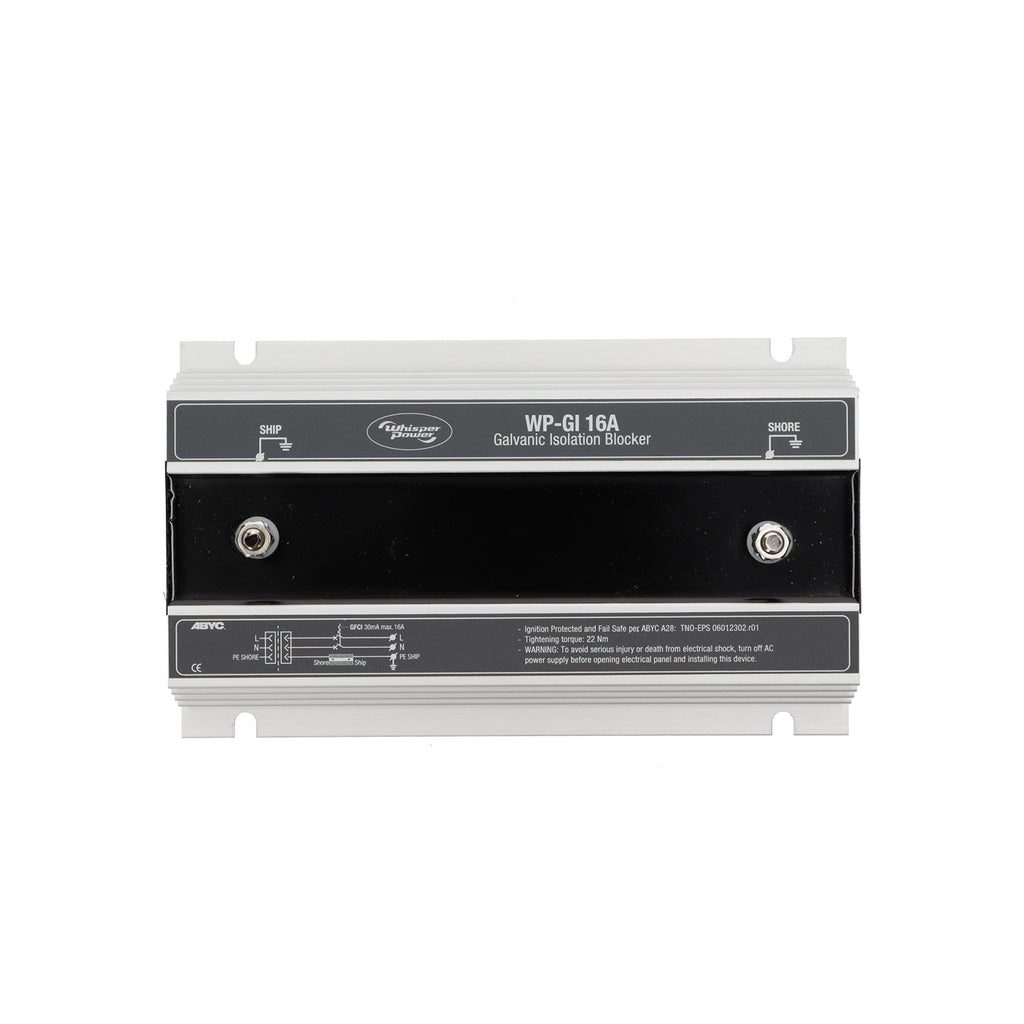

The GI is a galvanic isolator which optimizes the life of the galvanic anodes and protects metal parts on the boat against galvanic corrosion. It also prevents stray currents from the shore from reaching the boat.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110140 |
| Dimensions & weight | |
| Weight (Kg) | 1.2 |

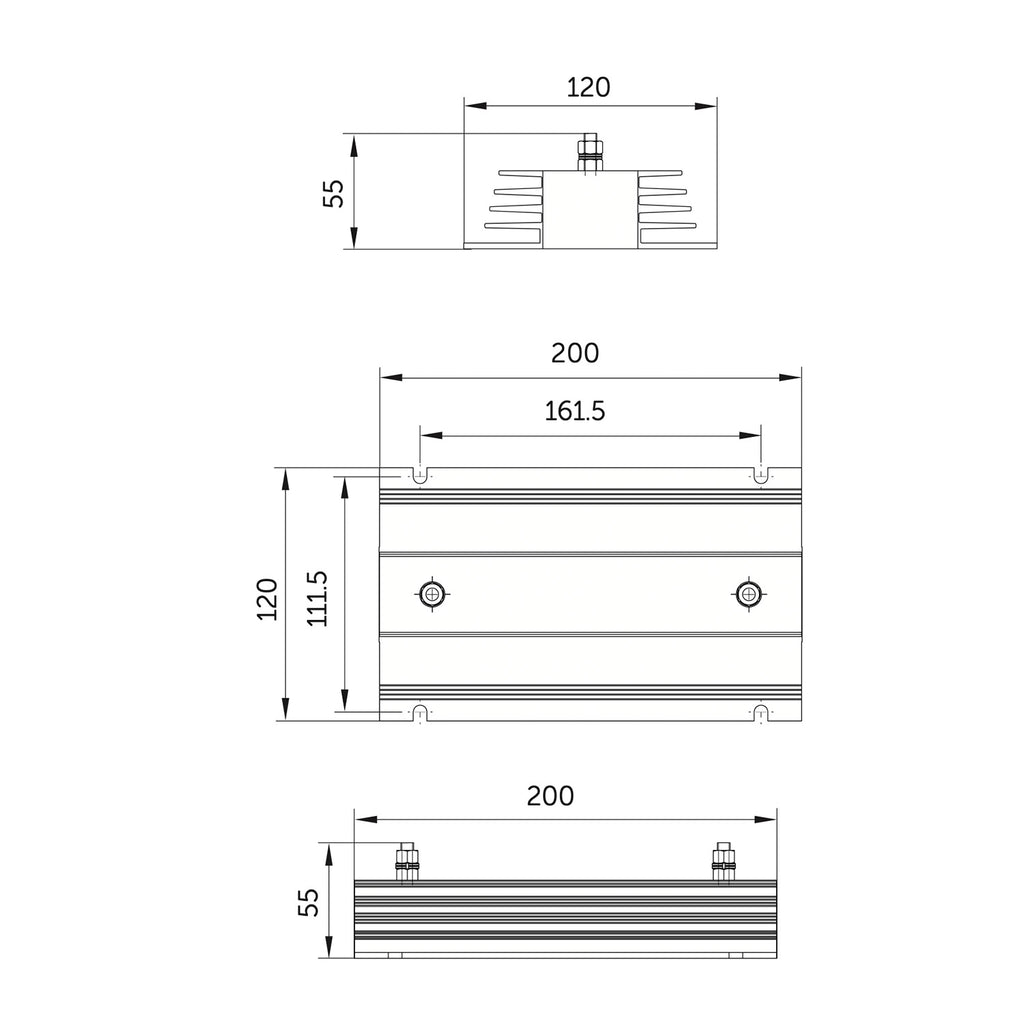

| Dimensions (hxwxd) | 60 x 120 x 200mm |
| General specifications | |
| Maximum current | 16A |
| Peak current | 1600 A / 20 ms |
| Voltage | 85 V – 260 V AC |
| Connection | 2 x M6 studs |
| Heat sink | Anodized aluminium |
| IP category | IP 67 (Waterproof potted) |
| Tested in accordance with | ANSI / ABYC A-28 |
Documents: User manual · Datasheet
