Description

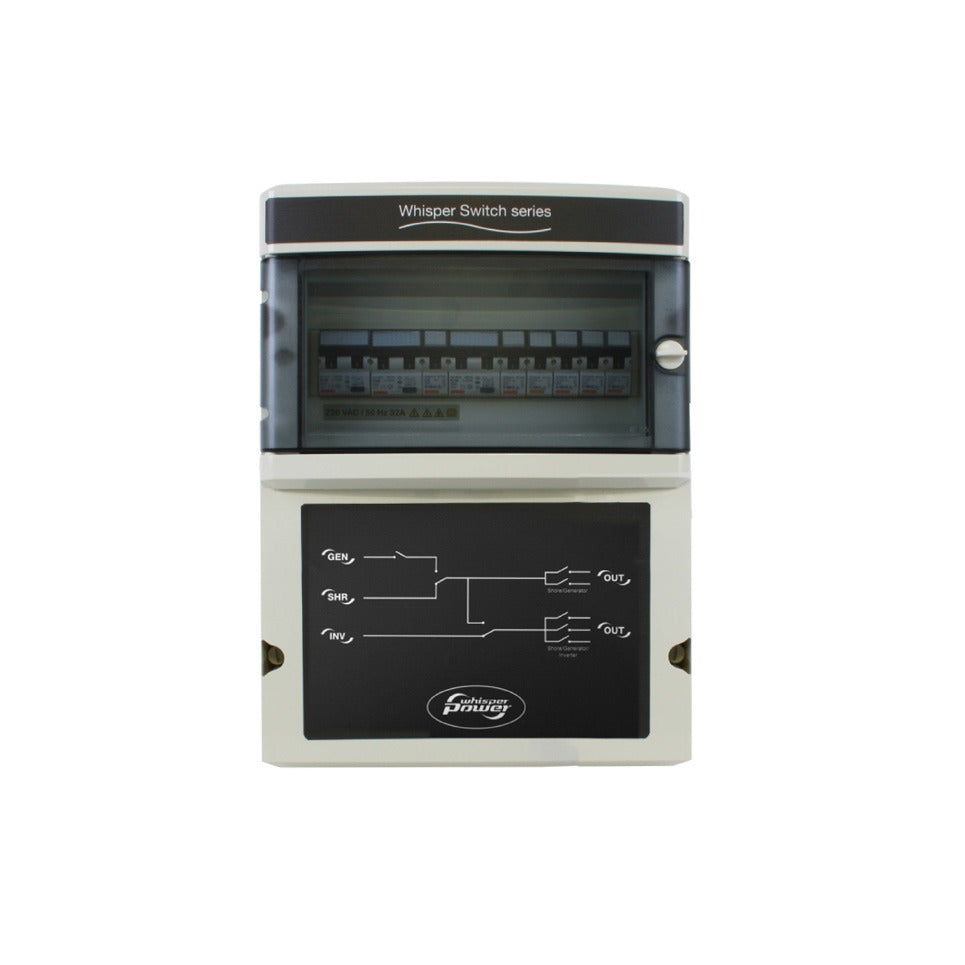

These analogue switching devices are able to feed the onboard power supply from three different sources: shore power, generator and inverter. There are three output circuits, available with different capacities. As an alternative solution, it is also possible to install two standard WhisperSwitches.
• switch from shore to generator
• switch between generator and inverter
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214690 |
| Dimensions & weight | |
| Weight (Kg) | 4.4 / 9.7 lb |
| Dimensions (hxwxd) | 340 x 261 x 144 mm / 13,4 x 10,3 x 5,7 inch |
| General specifications | |
| Power rating | 5 kW |
| Nominal input voltage | 230 V (50/60 Hz) |
| Input voltage range | 200-250 V |
| No. of AC inputs | 3 (shore, generator, inverter) |
| No. of AC outputs | 3 output groups |
| LED indicators on cabinet | Power sources present indication and 'load on inverter' mode |
| Nominal input current generator | 25 A |
| Nominal input current shore power | 25 A |
| Nominal input current inverter | 25 A |
| Earth leakage switch | Not integrated |
| Input generator monitoring | Continuous voltage and frequency monitoring |
| Delay generator input | 0-10 sec (adjustable) |
| Nominal output Short circuit current | 25 A |
| Nominal output current | 25 A |
| Automatic fuses | No, depends on system |
| Energy consumption (AC, all inputs) | 27W |
| Power consumption (inverter capacity only) | < 1W |
| Switching time | switch on 12-22 ms / switch off 4-19 ms |
| Temperature range (specified) | -5°C to 60°C / 23 to 140°F |
| Temperature range (ambient) | -25°C to 70°C / -13 to 158°F |
| Temperature range (not working) | -60°C to 80°C / -76 to 176°F |
| Relative humidity | max. 95%, non-condensing |
| Frequency monitoring | Yes |
| Cable diameter | 0.5-10 mm2/AWG 20-7, remote control 0.14-2.5 mm2/AWG 26-13 |
| International Protection rating | IP23 |
Documents: Datasheet
