Description
These conventional calorifiers use a spiral tube to heat the water.

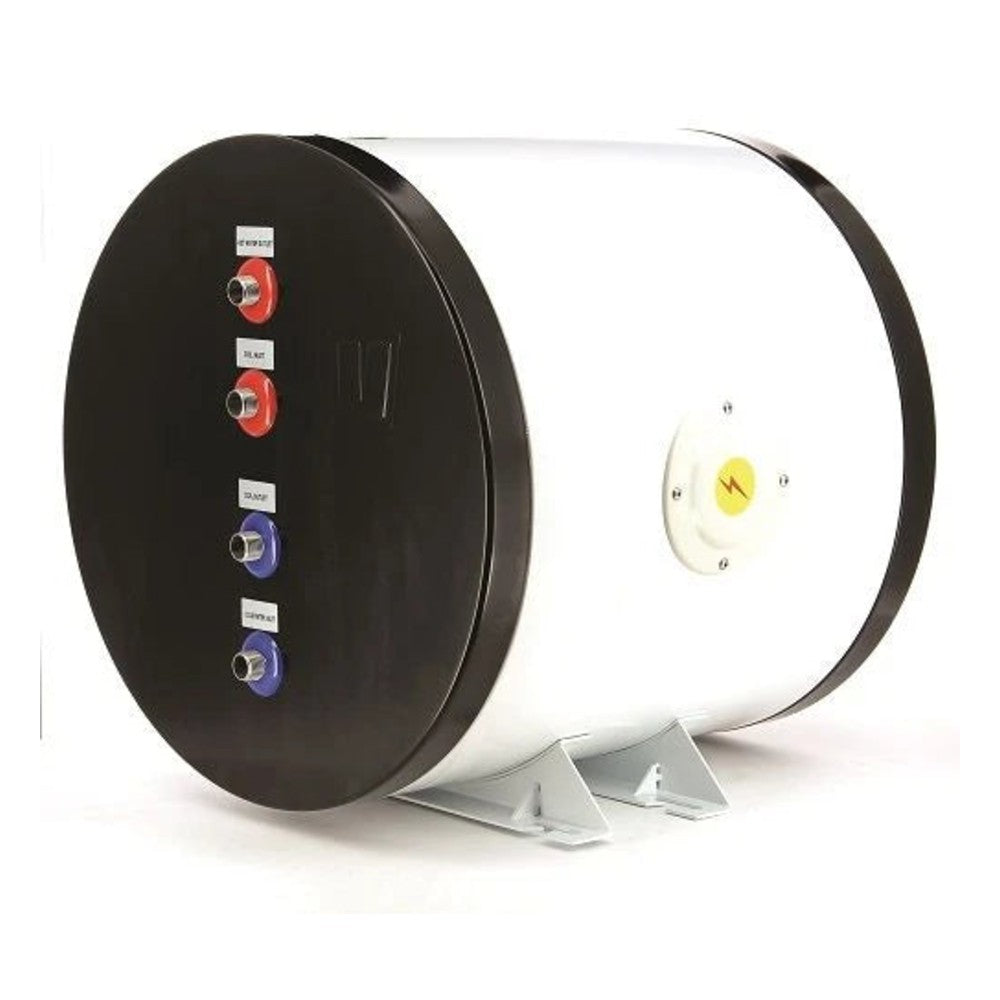

VETUS marine water heaters or calorifiers, make use of surplus heat from the engine to provide hot fresh water. They are also fitted with an electric heating element for use when the engine isn't running. All VETUS calorifiers include sturdy mounting brackets for safe installation and a complete connection set with pressure relief valve, plus a 1.5kW electric heating element.
These conventional calorifiers use a spiral tube to heat the water. The VETUS twin-coil calorifiers are supplied with an extra coil so the water can be also heated by the onboard heating system!
Technical data
| Manufacturer | Vetus |
| Article number | WHT075 |
| Inner tank | Duplex stainless steel |
| Outer tank | Stainless steel, AISI 316 |
| Insulation | Polyurethanse foam, 50 mm thickness. Supplied with white painted steel outer jacket |
| Connection engine coolant | G 1/2 |
| Connection fresh water | G 1/2 |
| Connection heating element | G 1/2 |
| Setting of relief valve fresh water | 6 bar (87 lbs / sq.inch) |
| Contents of fresh water (litres) | 75 |
| Contents of coolant (litres) | 0.5 |
