Description
Horizontal two-chamber waterlock/muffler with rotatable components and hose connections. Simple and time-saving installation. Capacity 10 litres.

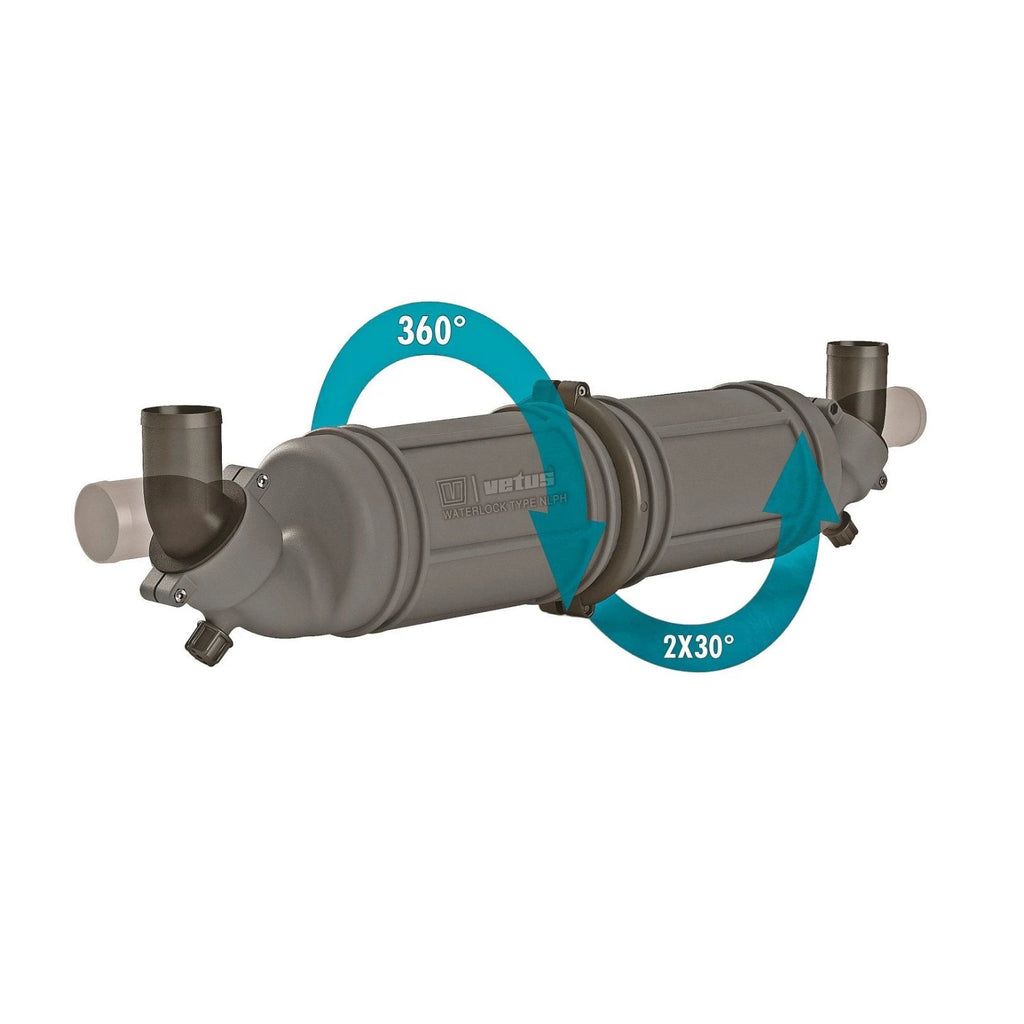

Due to its unique three-chamber technology, this waterlock/muffler reduces sound so effectively that it is an incredible 10dB quieter than traditional waterlocks. Its rotatable chambers and hose connections ensure quick and simple installation, even in the most confined spaces.
Technical data
| Manufacturer | Vetus |
| Article number | NLPH90 |
| Function | Waterlock + Muffler |
| Capacity (litres) | 10 |
| Inlet hose connection diameter (mm) | 90 |
| Outlet Hose connection diameter (mm) | 90 |

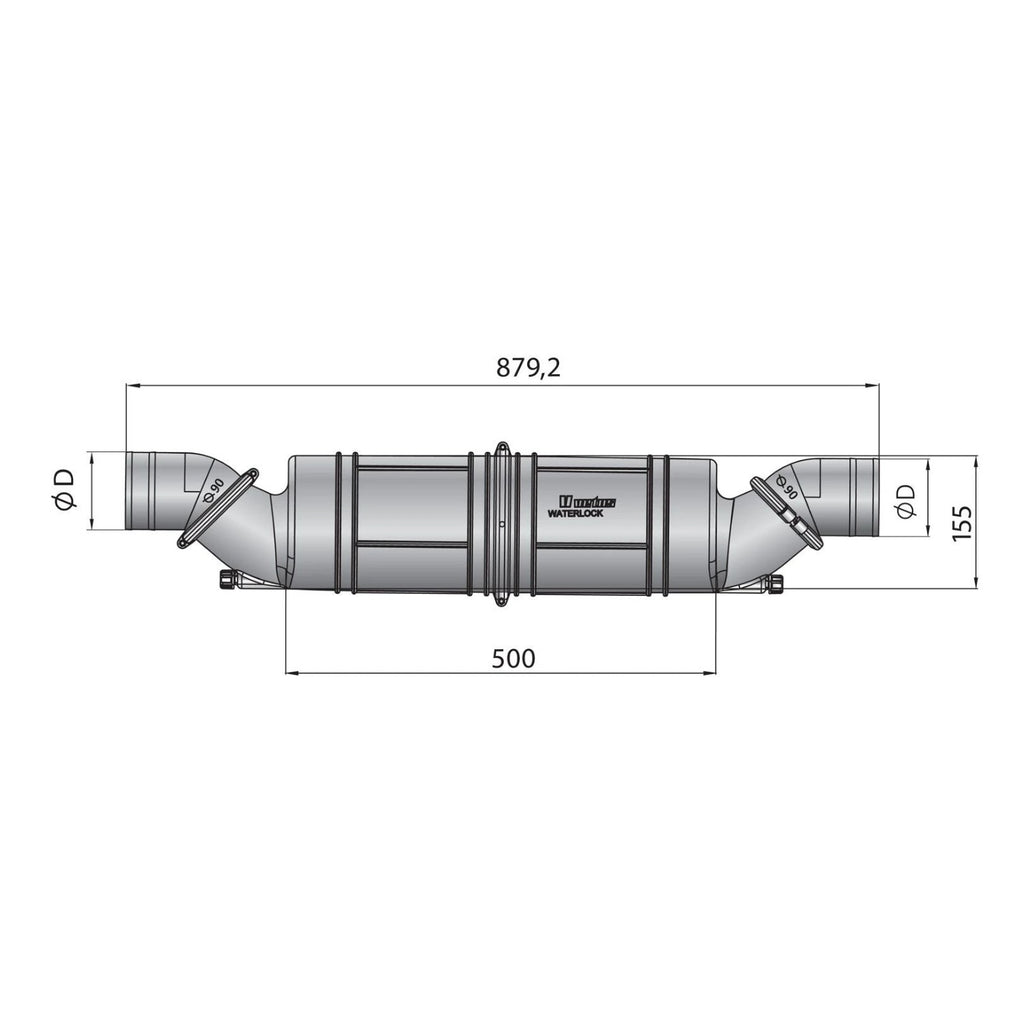

| Length (mm) | 879 |
| Width (mm) | 155 |
| Height (mm) | 155 |
| Position of the waterlock | Horizontal |
| Heavy Duty | No |
| Rotatable hose connections | Yes |
| Rotatable body parts | Yes |
