Description

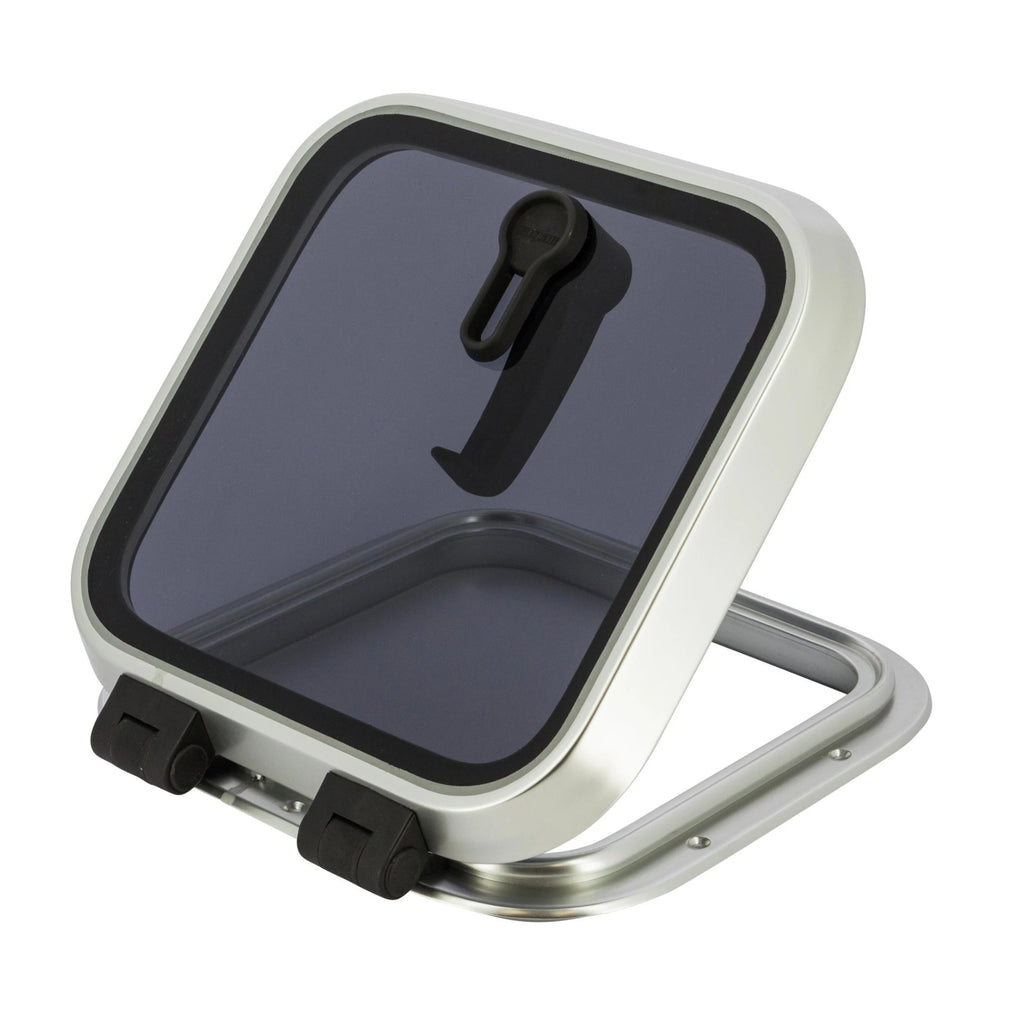

Satin sheen anodized aluminium frame. “Dark smoke” coloured acrylic. Lid can be held open at any angle up to 180°.
Heavy duty ocean ocean hatch! MAGNUS hatches have a satin sheen anodized frame profile with a 10 mm thick ‘dark smoke’ coloured acrylic and are designed for ocean use, design category A, Area I. These hatches can be opened from the inside or outside through 180° with almost no obstructions in the opening. They have a ventilation position and can be locked completely watertight. The cut-out sizes of this type match the market-based dimensions. Application on habitable multihulls as a means of escape in the inverted position, is subject to European legislation. Please contact our glazing team for further information. Disclaimer:
VETUS strongly advises against installing a MAGNUS AI hatch below deck level in areas where (temporary) immersion may occur. When installing a hatch below deck always pay extra attention to the base area because flexing of the hull will compromise watertightness of any hatch.
Technical data
| Manufacturer | Vetus |
| Article number | MAG2626SL |
| Material | Aluminium |
| Number of handles | 1 |
| Type mosquito screen | HCM2626 and HBM2626 |
| CE mark | AI |
| Shape | Square |
| Opening pane | Framed |
| Friction hinges | Yes |
| Type hatch | Ventilation |
| Length (mm) | 312 |
| Height (mm) | 312 |
| Cut-out height (mm) | 260 |
| Cut-out length (mm) | 260 |
Need help choosing the right solution or with installation? Write to us – we are happy to help.
