Description
Polished aluminium frame. “Dark smoke” coloured acrylic. Lid can be held open at any angle up to 90°.

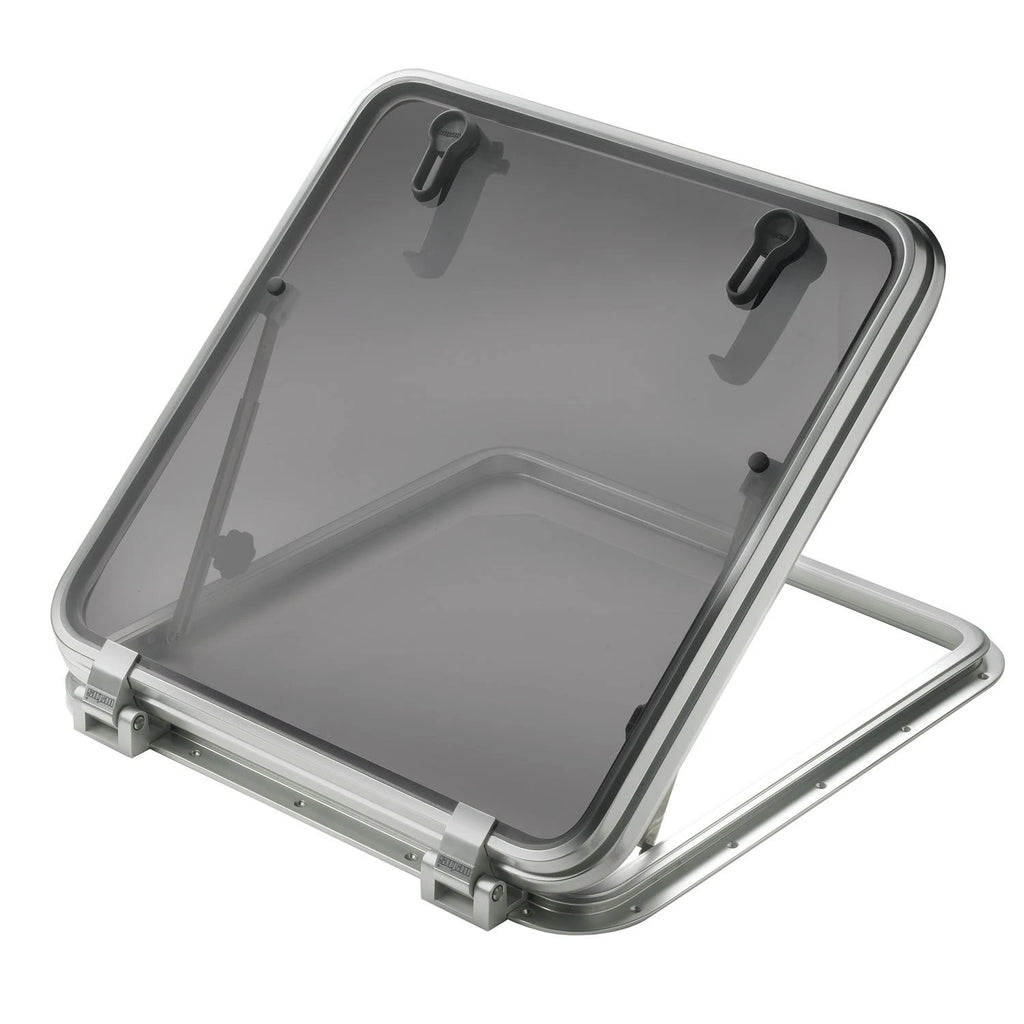

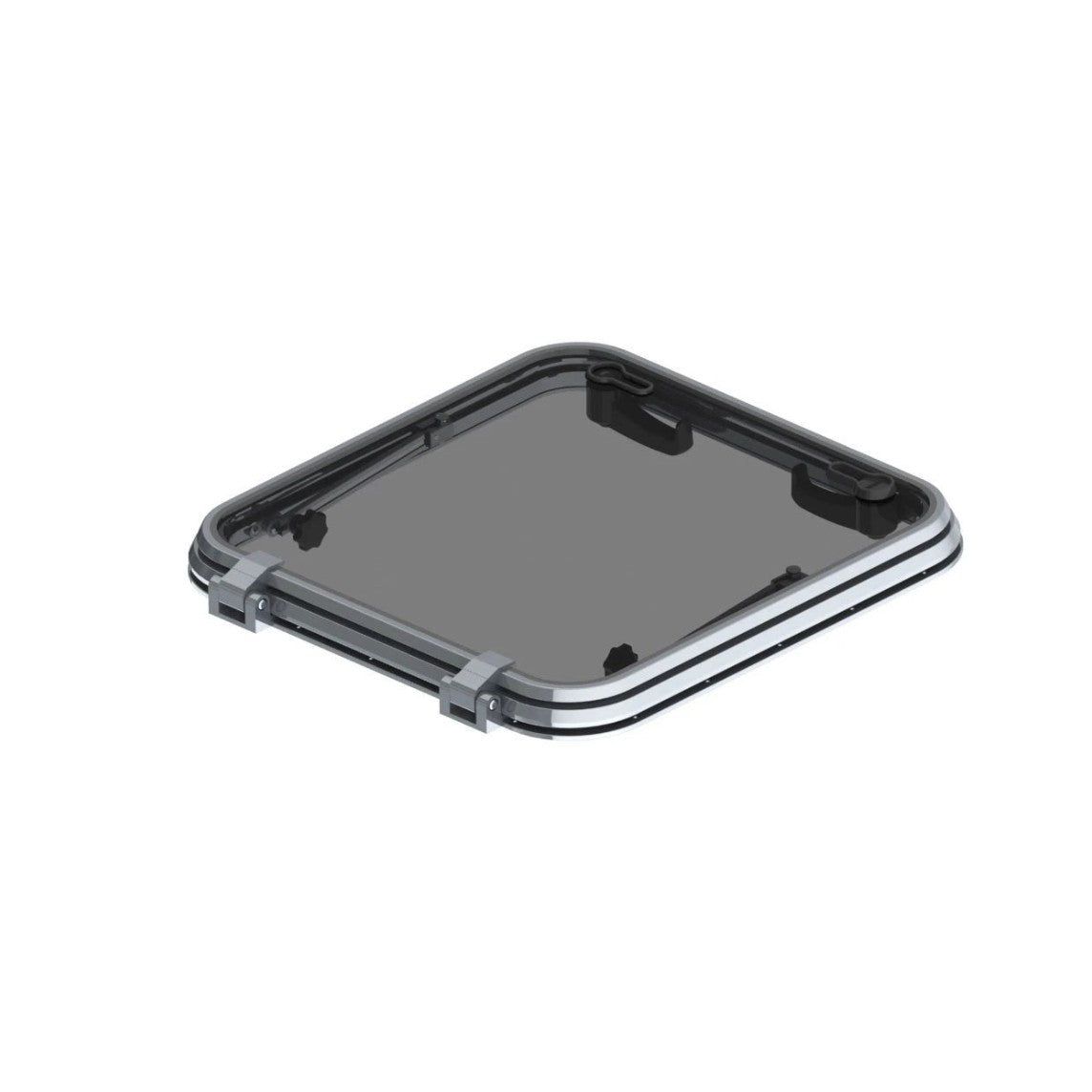

Still going strong! These hatches have a hand polished and anodized aluminum frame with a 32 or 55 mm corner radius and a 10 mm ‘dark smoke’ coloured acrylic lid. The escape an deck hatches come with adjusters allowing the lid to be held open at almost any angle up to 90°. Type LIBERO is suitable for design category A, Area II. The first image is one version of our LIBERO hatches. The hatches differ in shape and in the number of hinges, adjusters and handles. This information can be found in the additional information.
Technical data
| Manufacturer | Vetus |
| Article number | LIB5032L |
| Material | Aluminium |
| Number of handles | 2 |
| CE mark | AII |
| Shape | Square |
| Opening pane | Framed |
| Friction hinges | Yes |
| Type hatch | Escape |
| Length (mm) | 560 |
| Height (mm) | 560 |
| Cut-out radius (mm) | 32 |
| Cut-out height (mm) | 500 |
| Cut-out length (mm) | 500 |
