Description

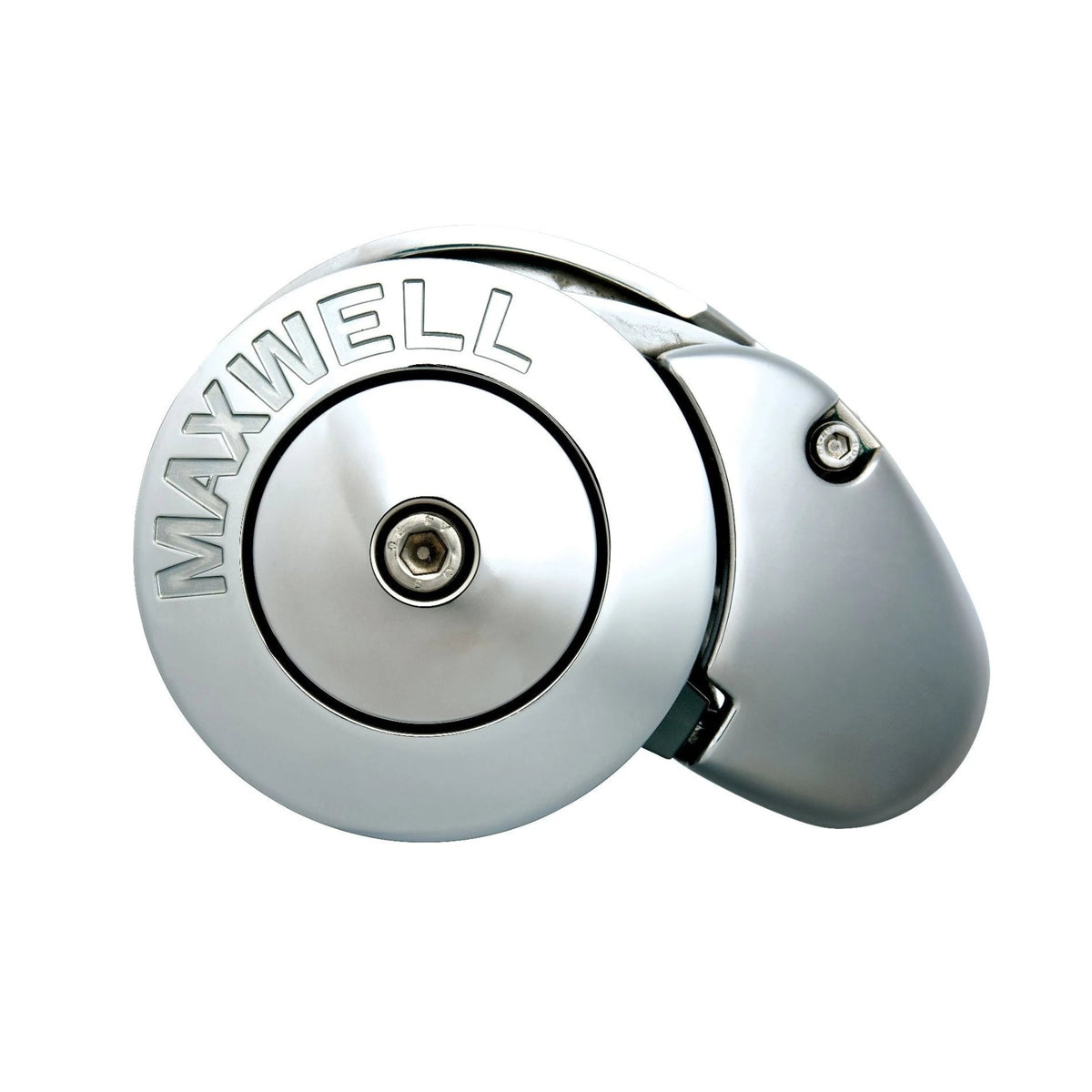

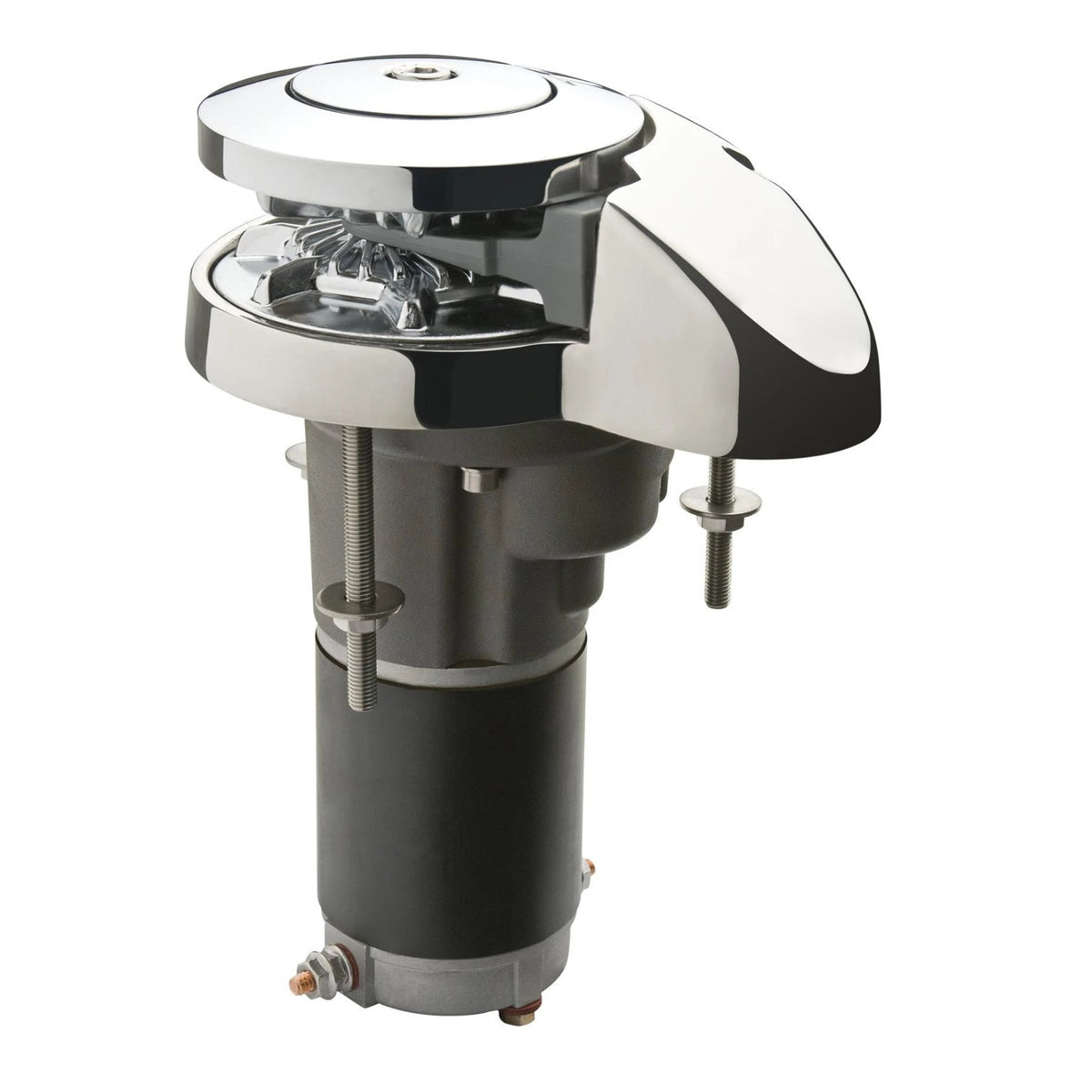

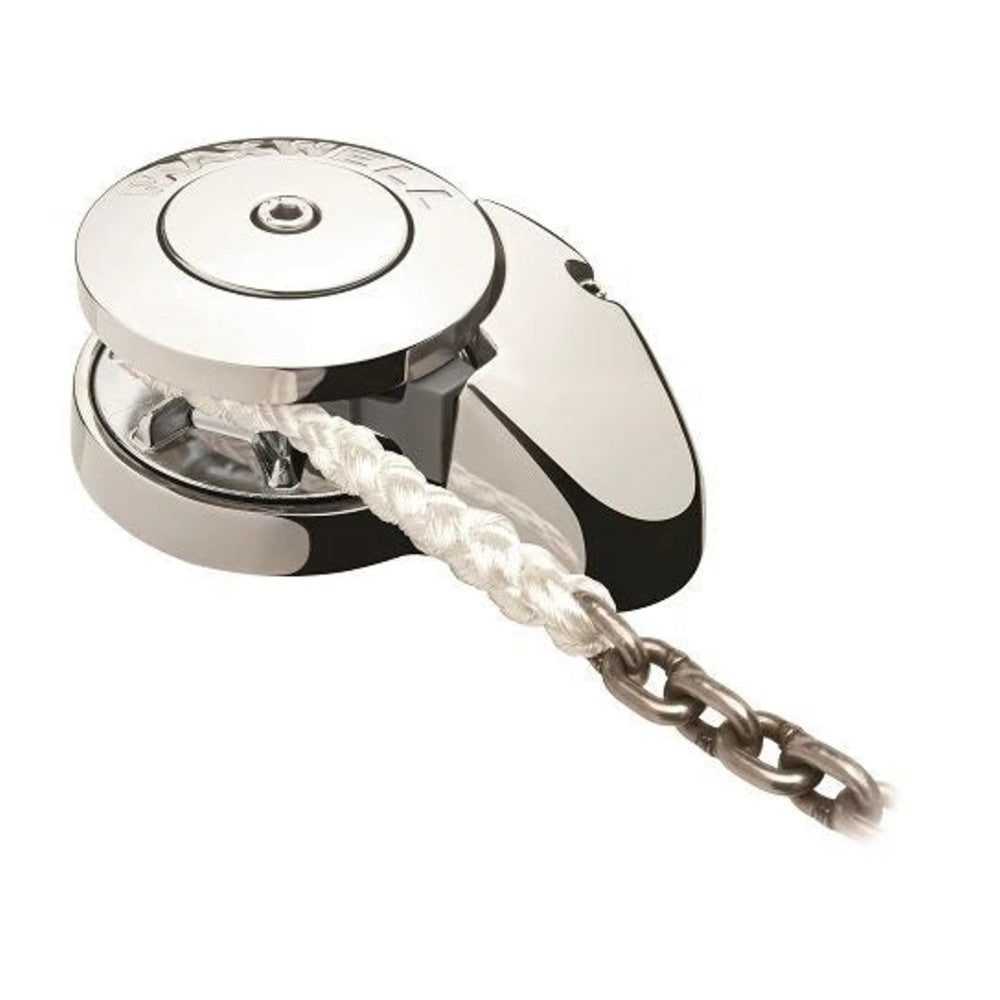

Suitable for 6 mm/7 mm (1/4") chain and 12 mm (1/2") nylon rope. The combined stainless steel and chromed bronze RC6 automatic rope/chain anchor winch is Maxwell’s smallest version of the vertical RC Series Windlass Range.
Suitable for 6 mm/7 mm (1/4") chain and 12 mm (1/2") nylon rope. The combined stainless steel and chromed bronze RC6 automatic rope/chain anchor winch is Maxwell’s smallest version of the vertical RC Series Windlass Range.
Technical data
| Manufacturer | Maxwell |
| Article number | P102569 |
| Motor (W) | 500 |
| Voltage (V) | 12 |
| Vertical/Horizontal | Vertical |
| Rope/chain | Rope/chain |
| Drum | No |
| Weight (kg) | 8.5 |
| Maximum pull/lift (kg) | 350 |
| Chain short link (mm) | 6 - 7 |
| Chain (mm) | 6-7 |
| Rope (mm) | 12 |
Need help choosing the right solution or with installation? Write to us – we are happy to help.
